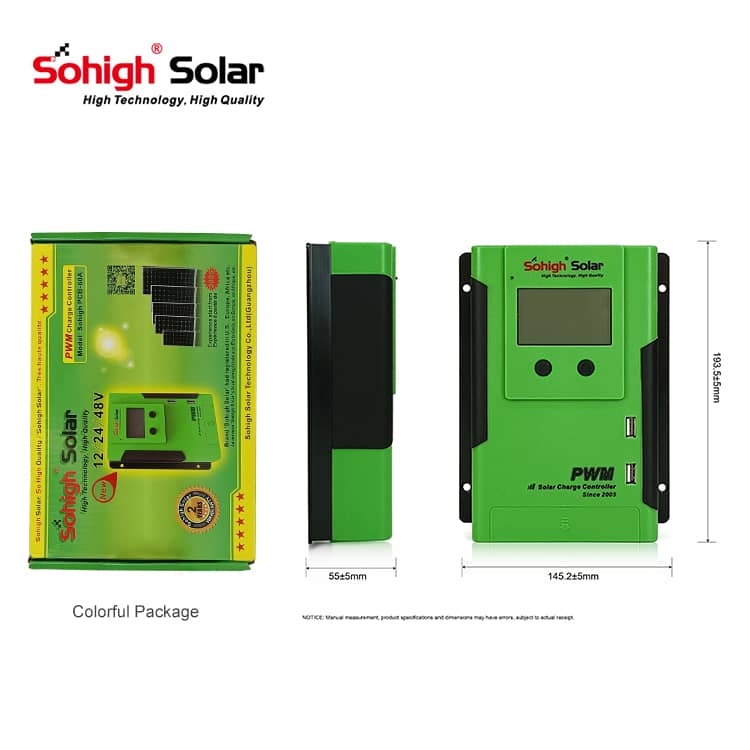

Model: Sohigh PCB-60A
Brand: Sohigh Solar
Voltage(V): 12/24/48V
Product Origin: Guangzhou,China
Capacity: 60A
Tips: Solar Charge Controller Protection Mode
Directly charge the protection point voltage. This protection mode is also called emergency charge. Unlike the usual protection mode, this protection mode is fast charging. If the solar controller’s battery is in a lower voltage state and cannot achieve higher voltage power conversion, then the controller will automatically activate this direct charge protection point voltage to charge its own battery. Its principle is mainly because of its own parameter value called control point. It is the value in the above table. When the controller is in the process of charging, the voltage value displayed by the controller is higher than the protection value. At this time, the controller will automatically start this mode to control the battery terminal voltage in time. At this point of protection, avoid overcharging.
The equalization control point voltage is another common protection method for solar controllers. Different from the former, when the direct charge of the controller is over, the battery inside the controller will be left for a period of time, and then the switching voltage of the internal battery of the machine will be reduced to a natural value. After a period of time, the voltage of the battery will be used. When falling to the recovery voltage value, the controller will enter the equalization state at this time.

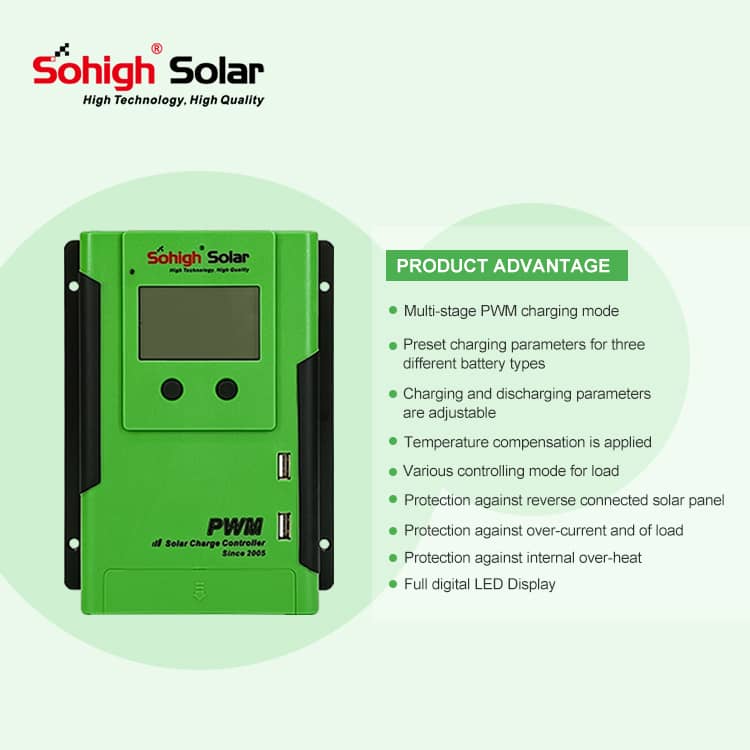

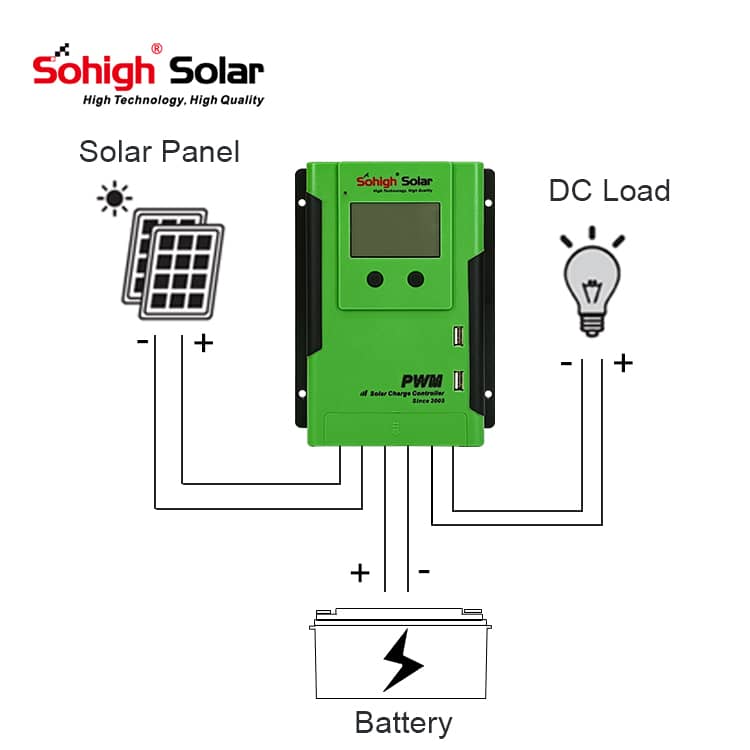

Feature of the PWM solar charger controller
Automatic identification system voltage 12V/24V/48V.

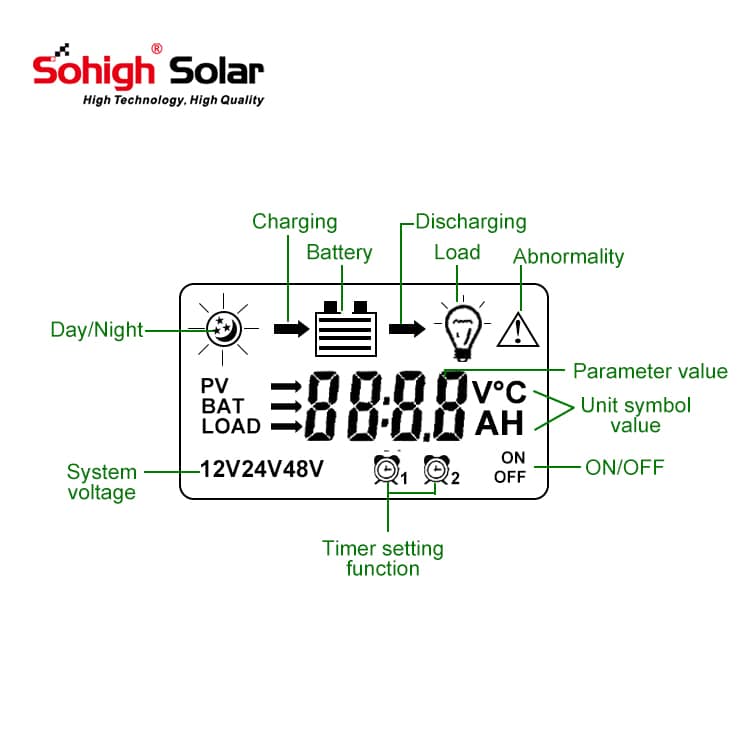

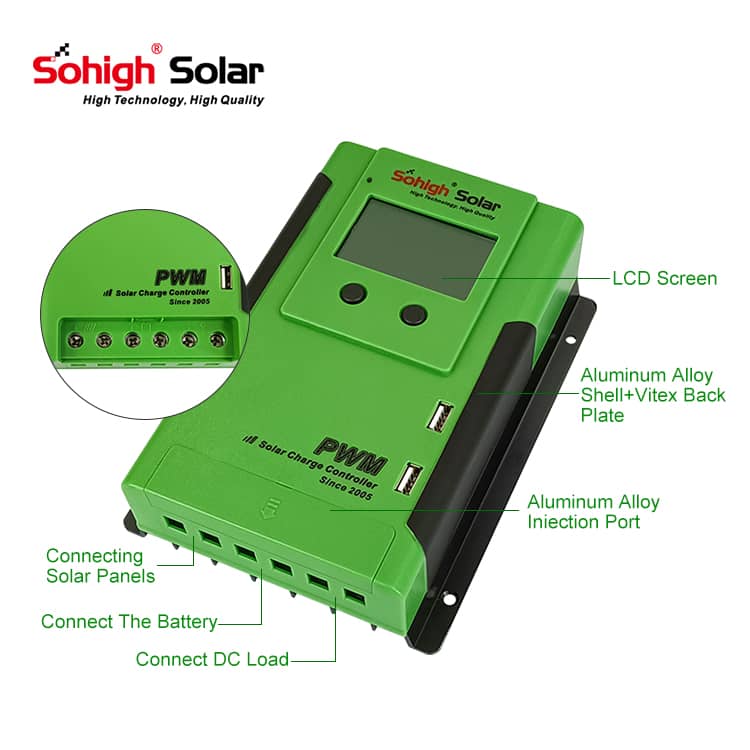

Personalized LCD display and two-button operator and page.
High performance PWM three-stage charging.
You can choose to load the control template and set the streetlights in the world at night.

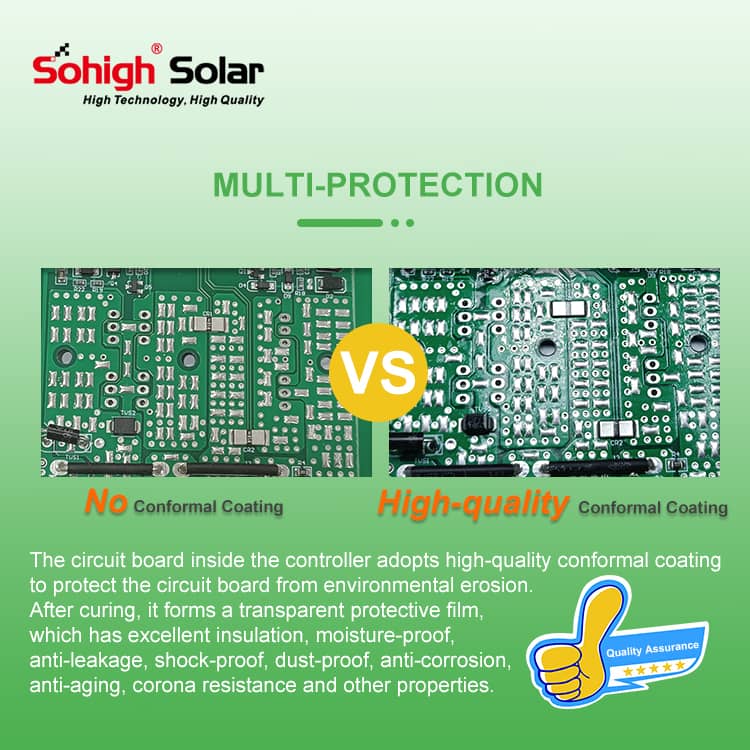

With overvoltage, short circuit, overload, overcharge, over discharge protection.
Accurate temperature compensation, correct charging and discharging voltages automatically extend battery life.
The default setting can be reset when the controller with the parameter set is powered off.
The positive and negative terminals of the input terminal are reversely connected to protect.
| Model | Sohigh PCB-50A | Sohigh PCB-60A | |||||
| Rated Charge Current | 20A | 30A | |||||
| Voltage Range of Battery | 8V-32V；32V-64V | ||||||
| Max Open Voltage of Solar Panel | 50V；100V | ||||||
| System Rated Voltage | 12/24V Auto Rocognized | ||||||
| Temperature compensation coeficient | 4mV/℃/2V(25℃) | ||||||
| Operating Temperature | -20℃~+55℃(to run at full rated current continuously) | ||||||
| Storage Temperature | -30℃~+80℃ | ||||||
| Working Humidity | ≤95%,no condensation | ||||||
| Photovoltic module utilization ratio | ≤10mA; ≤13mA | ||||||
| IP code | IP30 | ||||||
| Wiring | PCB PCB terminal, I<10mm’ | ||||||
| Battery Type | GEL,SLD,FLD and Usr (default) | ||||||
| USB | 5V/1A | ||||||
| Man-machine interface | LCD,2 Buttons | ||||||
| Light control voltage | 5V(1V~10V)X1/X2/X3/X4 | ||||||
| Charge loop voltage drop | ≤0.21V | ||||||
| Man-machine interface | ≤0.10V | ||||||
| PV voltage | ≤50V | ||||||
| Charging mode* | PWM Multi-stage(bulk,float,absorption,equalized) | ||||||
| Load working mode | Regular control mode; Light control with switch-off point at night and switch-on point before dawn Light control mode | ||||||
