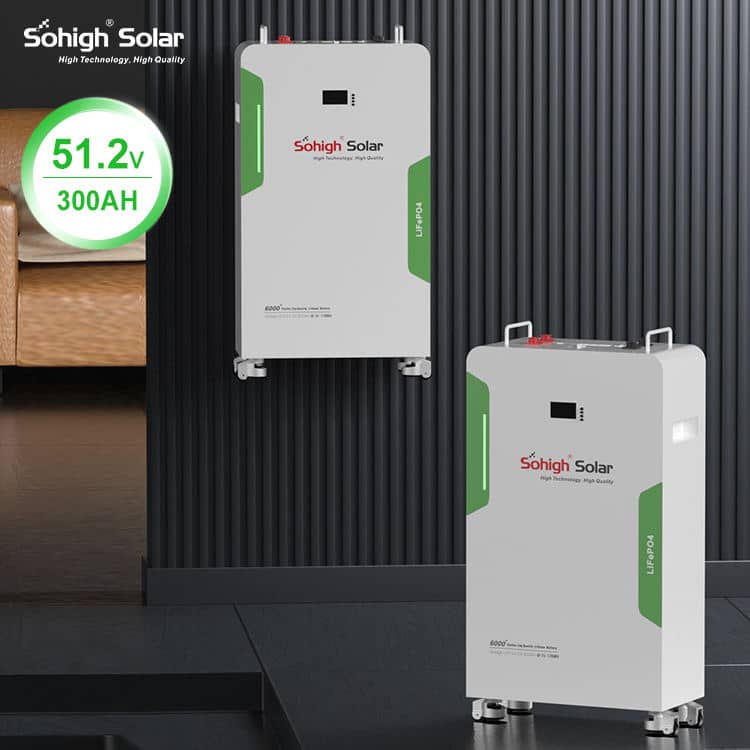

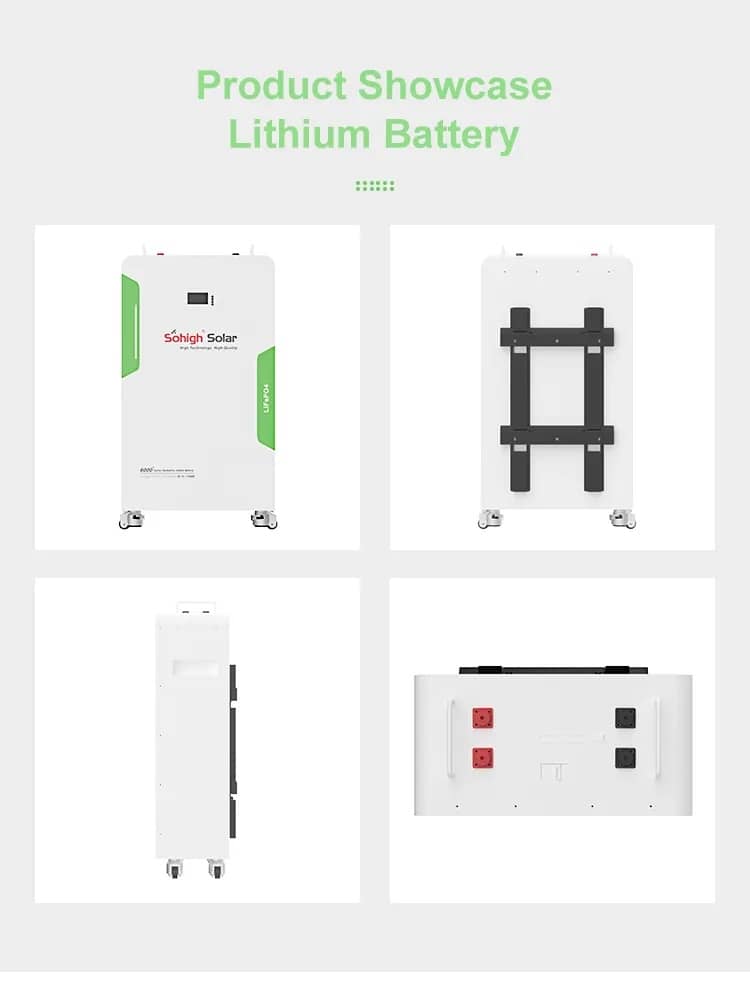

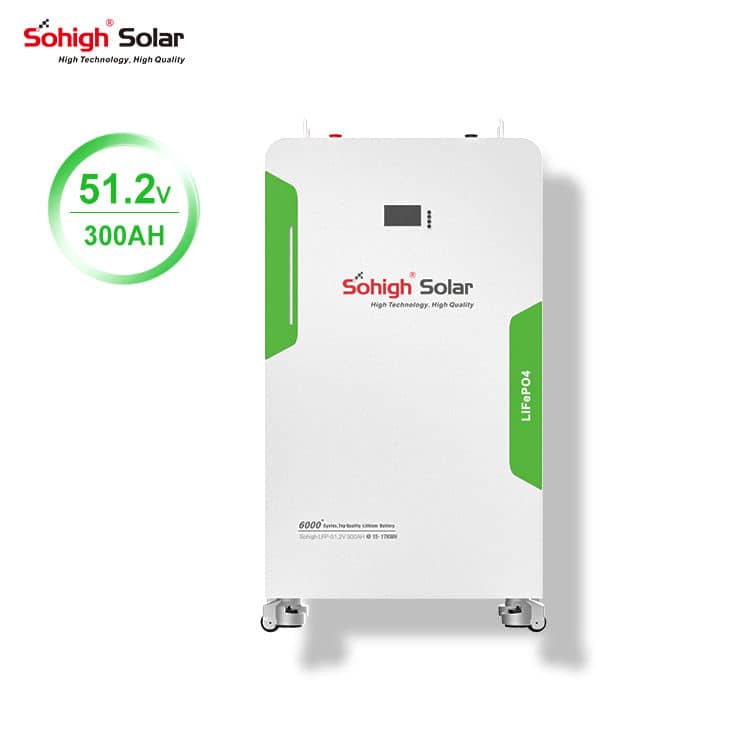

Model: Sohigh LFP-51.2V 315AH / Sohigh LFP-51.2V 340AH
Brand: Sohigh Solar
Voltage(V): 51.2V
Product Origin: Guangzhou,China
Capacity: 314 Ah / 340Ah
Material: Lithium ion
Key attributes
Packaging and delivery
FAQ
1.Q: What is the biggest differene between your battery and other suppliers
A: Safest with longer lifespan.
2.Q: Why your battery is safer than others?
A: We adopt Bolt in structure, it is strongest structure with most advanced technology involved.
B. Integrated BMS to monitor tempeature, voltage, current to realize over voltage protection, over current protection, over temperature protection, short circuit protection, Reverse Polarity protection
3.Q:How to become your agent?
A:Contact us through Alibaba, we will give you the best price and look forward to your greetings
4.Q:Do you have your own factory?
A:Yes, we are professional manufacturer mainly in power inverter for many years. Our factory is located in Guangdong, China.
5.Q:What kind of certification you have?
A:ISO9001,CE,ROHS and so on.
6.Q:Why does your battery ensure longer lifespan than others?
A: With more than 10 years experiences in LiFePO4 Battery pack, unrivalled technical capacity ensured.
B. Olivine LiFePO4 Structure(Most stable structure)
C. Single cell protection(Unique in China)
7.Q:How about your warranty?
A: We provide 1.5 and 5 years warranty for different products and whole life technical support.
| Electrical Characteristics | Nominal Voltage | 51.2V | |||
| Nominal Capacity | 314AH / 340AH | ||||
| Energy | 16128 Wh / 17408Wh | ||||
| Internal Resistance | ≤500mΩ | ||||
| Cycle Life | >6000 cycles @0.2C 100%DOD | ||||
| Months Self Discharge | <3% | ||||
| Efficiency of Charge | 100% @0.2C | ||||
| Efficiency of Discharge | 96~99% @1C | ||||
Standard Charge | Charge Voltage | 54.8±0.2V | |||
| Charge Mode | 0.2C to 14.6V, then 14.6,charge current 0.02C(CC/CV) | ||||
| Charger Current | 100A | ||||
| Max. Charge Current | 200A | ||||
| Charge Cut-Off Voltage | 55.5V±0.2V | ||||
Standard Discharge | Continuous Current | 200A | |||
| Max. Pulse Current | 250A(<3s) | ||||
| Discharge Cut-off Voltage | 44.8V | ||||
Mechanical | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | |||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | ||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | ||||
