Power(W): 10200W
Model: Sohigh On-Off Grid 12KVA
Brand: Sohigh Solar
Voltage(V): 48V
Product Origin: Guangzhou,China
Capacity: 180A

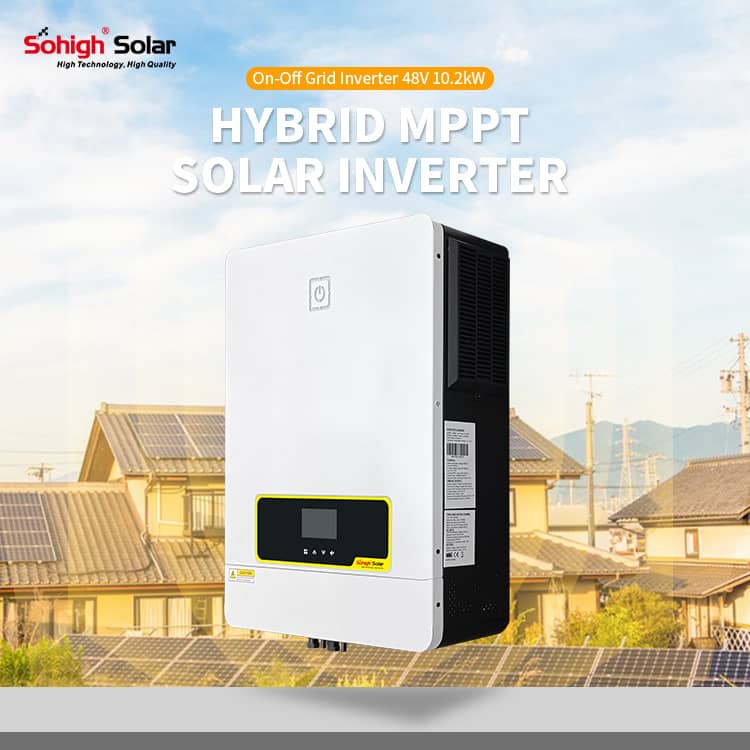

Description of the 10.2 KW on off grid inverter
The solar inverter 10.2kw offered by Sohigh Solar is the best way to supply electricity 24 hours a day, all year round.
In addition, installing a solar inverter will give you safe electricity in your home 24/7 all year round.
In addition, the solar inverter will allow you to convert the DC power from the solar panels into AC power to power the tubular batteries.
Moreover, if there are any problems with the power company, you don’t have to worry because the solar panels will charge the tubular batteries and provide you with a constant supply of electricity.
In addition, worrying about diesel and gasoline is a thing of the past for the solar systems we offer you in the world.
| Power | 7.2KW | 8.2KW | 10.2KW | |
| Input Voltage Waveform | Sinusoidal (utility or generator) | |||
| Norminal Input Voltage | 230Vac | |||
| Low Loss Voltage | 170Vac±7V (UPS); 90Vac±7V (Appliances) | |||
| Low Loss Return Voltage | 170Vac±7V (UPS); 100Vac±7V (Appliances) | |||
| High Loss Voltage | 280Vac±7V | |||
| High Loss Return Voltage | 270Vac±7V | |||
| Max AC Input Voltage | 300Vac | |||
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) | |||
| Low Loss Frequency | 40±1HZ | |||
| Low Loss Return Frequency | 42±1HZ | |||
| High Loss Frequency | 65±1HZ | |||
| High Loss Return Frequency | 63±1HZ | |||

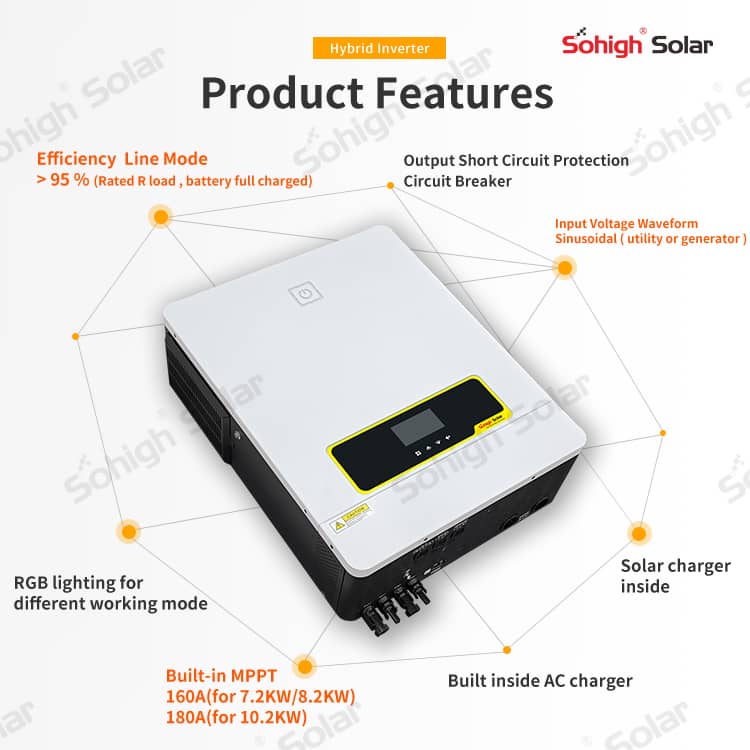

| Output Short Circuit Protection | Circuit Breaker | |||
| Efficiency (Line Mode) | >95% ( Rated R load, battery full charged ) | |||
| Transfer Time | 10ms typical (UPS); 20ms typical (Appliances) | |||
| Output Voltage Waveform | Pure Sine Wave | |||
| Output Voltage Regulation | 230Vac+ 5% | |||
| Output Frequency | 50HZ | |||
| Peak Efficiency | 93% | |||
| Overload Protection | 3s@≥150% load; 5s@101%~ 150% load | |||
| Surge Capacity | 2* rated power for 5 seconds | |||
| Nominal DC Input Voltage | 48Vdc | |||
| Cold Start Voltage | 46.0Vdc | |||
| Low DC Warning Voltage @ load ≤ 50% @ load≥50% | 44.0Vdc 42.0Vdc | |||
| Low DC Warning Return Voltage @ load ≤50% @ load≥50% | 45.0Vdc 44.0Vdc | |||
| Low DC Cut-off Voltage @ load ≤ 50% @ load≥50% | 41.0Vdc 40.0Vdc | |||
| High DC Recovery Voltage | 62Vdc | |||
| High DC Cut-off Voltage | 63Vdc | |||
| Storage Temperature | ‘-10℃ to 60℃ | |||
| No Load Power Consumption | 60W | 70W | 75W | |
| Maximum Second Load(battery model) | 2400W | 2733W | 3400W | |
| Main Load Cut Off Voltage | 44VDC | |||
| Main Load Return Voltage | 53.5VDC | |||
| Charging Algorithm | 3-Step | |||
| AC Charging Current (Max) | 140Amp | 140Amp | 160Amp | |
| Floating Charging Voltage | 54Vdc | |||
| Max. PV Array Power | 8200W | 10200W | ||
| Nominal PV Voltage | 360Vdc | |||
| PV Array MPPT Voltage Range | 90Vdc-500Vdc | |||
| Max. PV Array Open Circuit Voltage | 500Vdc | |||
| Max Charging Current (AC charger plus solar charger) | 160Amp | 160Amp | 180Amp | |
| Nominal Output Voltage | 220/230/240 VAC | |||
| Feed-in Grid Voltage Range | 195 ~ 253VAC | |||
| Feed-in Grid Frequency Range | 49~51士1Hz/59~61+1Hz 49~51士1Hz/59~61+1Hz | |||
| Nominal Output Current | 31.3A | 35.6A | 44.3A | |
| Power Factor Range | >0.99 | |||
| Maximum Conversion Efficiency (DC/AC) | 98% | |||
| Operating Temperature Range | -10°C to 50°C | |||
| Storage temperature | -15°C~ 60°C | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||
