Model: Sohigh LiBAT-200AH-51.2V
Brand: Sohigh Solar
Voltage(V): 51.2V
Product Origin: Guangzhou,China
Capacity: 200AH
Material: Lithium ion

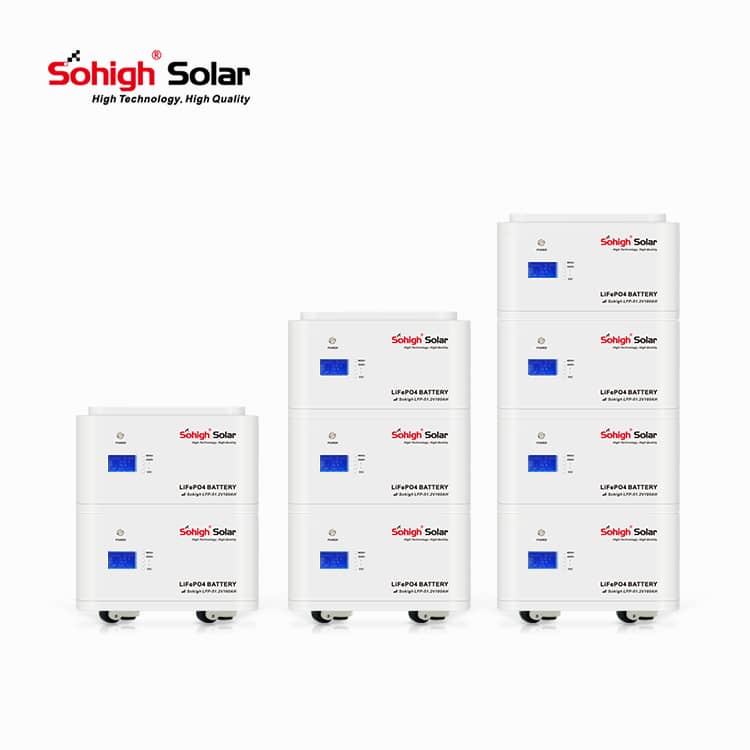

Stackable home battery with 10.24 KWh to 40.96KWh of capacity
Sohigh Solar is 15 years original energy storage battery. Sohigh solar energy storage is affordable and factory priced. Cooperation with global home battery factory Sohigh Solar is 15 years original energy storage battery. Sohigh Solar energy storage at affordable, factory prices. Cooperate with global home battery factory to provide OEM service, work with solar energy storage battery contractors, distributors and retailers, etc.

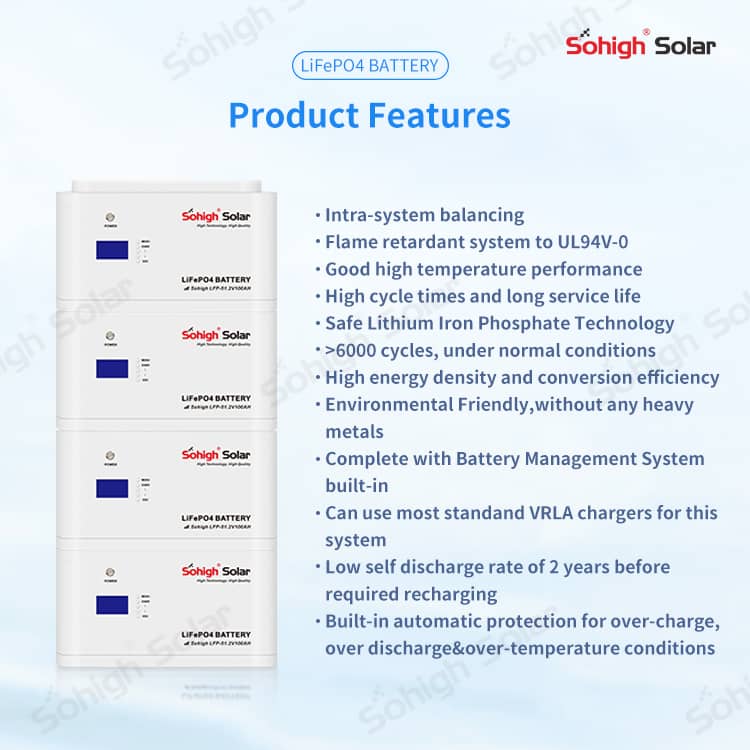

Product Features
1. Stylish floor-to-ceiling design, portable and mobile, suitable for any corner of your home.
2. 100% brand new A-grade battery cells, cycle life up to 6000+ at 80% DOD, designed to last more than 15 years.

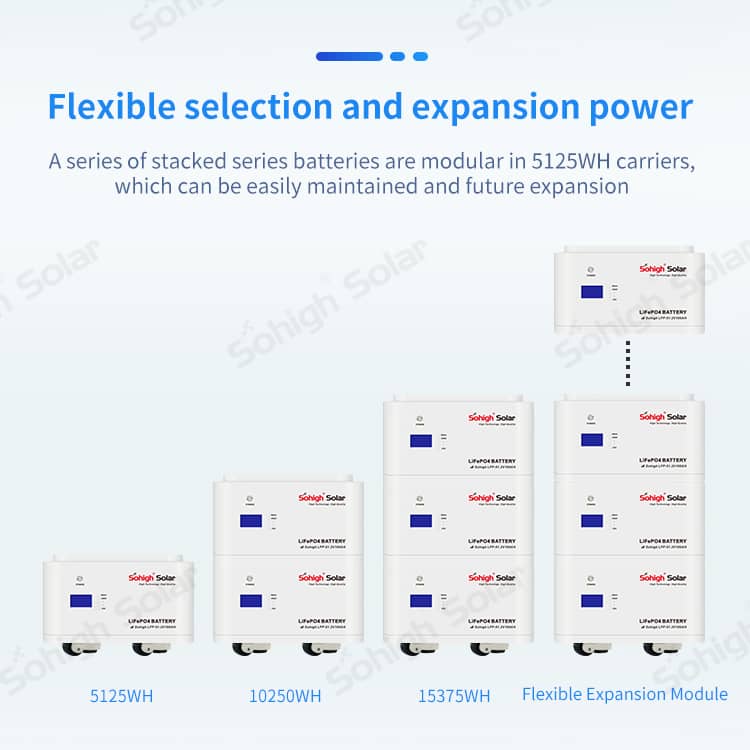

3. Flexible stacking design, 10KWH~50KWH can be chosen at will according to your electricity demand and budget.
(1) 1 module 10KWH 51.2V 200AH LiFePO4 battery
(2) 2 modules in parallel; total voltage and capacity: 51.2V 400Ah LiFePO4 battery 20Kwh
(3) 3 modules in parallel; total voltage and capacity: 51.2V 600Ah LiFePO4 30Kwh
(4) 5 modules in parallel; total voltage and capacity: 51.2V 1000Ah LiFePO4 50Kwh

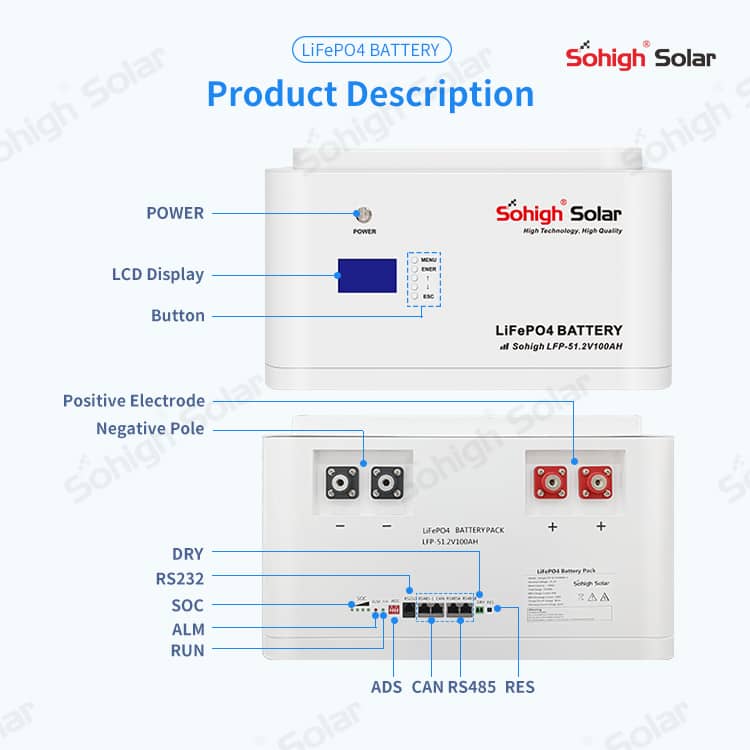

(5)Built-in accurate coulometer (LCD display), ON/OFF switch, handle, bracket and movable base
(6)For the bracket, we customized a high quality unique metal bracket, more stable, safe and very strong, can be power wall lifepo4 battery mounted on the wall and the ground. We provide OEM service, working with solar energy storage battery contractors, distributors and retailers, etc.
Electrical Characteristics | Nominal Voltage | 51.2V | |||
Nominal Capacity | 200AH | ||||
Energy | 10240Wh | ||||
Internal Resistance | ≤500mΩ | ||||
Cycle Life | >3500 cycles @1C 100%DOD | ||||
Months Self Discharge | <3% | ||||
Efficiency of Charge | 100% @0.2C | ||||
Efficiency of Discharge | 96~99% @1C | ||||
Standard Charge | Charge Voltage | 58.4±0.2V | |||
Charge Mode | 0.2C to 58.4V, then 58.4,charge current 0.02C(CC/CV) | ||||
Charger Current | 20A | ||||
Max. Charge Current | 50A | ||||
Charge Cut-Off Voltage | 59.2V±0.2V | ||||
Standard Discharge | Continuous Current | 100A | |||
Max. Pulse Current | 150A(<3s) | ||||
Discharge Cut-off Voltage | 40V | ||||
Mechanical | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | |||
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | ||||
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | ||||
