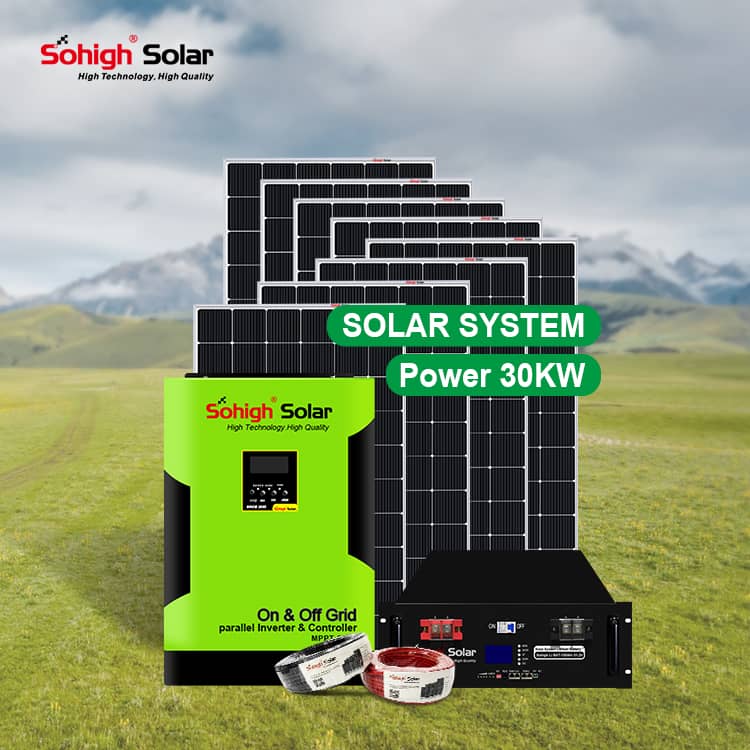

30KW off grid solar energy system

Power(W): 30000W
Model: Sohigh On-Off Grid System 30KW
Brand: Sohigh Solar
Voltage(V): 48V
Product Origin: Guangzhou,China

What are the types of solar power systems?

There are three main types of solar power systems:

Grid tied systems: The most popular solar system type; the home is connected to the grid so it can use electricity from the utility when the solar panels aren’t producing enough energy to power the home

Hybrid systems: Also called ‘solar plus storage systems’; the solar panels are paired with a solar battery to store energy for the home to use later on or during a power outage, and the home is also connected to the grid

Off-grid systems: There is no connection to the grid and the home runs entirely off of energy generated and stored on-site.



What is the best solar phomes system for home?

The right solar power system for your home depends on what you want outside of the system.

If you’re just trying to save money on your electricity bills with the added bonus of powering your home with renewable energy, then a grid-tied solar system is probably best for you. Grid-tied systems are especially great if your utility offers full-retail net metering.

Hybrid solar power systems are better suited for homeowners who live in areas that have access to the grid but still experience frequent power outages. In most cases, solar batteries won’t save you any additional money, so you’re really paying for the peace of mind of having a battery backup bank when the grid is down. Hybrid systems are also popular for homeowners who want to maximize the amount of clean energy they use to power their homes.

Off-grid systems are best for homeowners who don’t have access to the grid. Whether it’s a rural farm or a cabin in the woods, off-grid solar systems let you have the electricity that you otherwise might not have. However, going off grid requires some substantial lifestyle changes, as you really need to be conscious of your energy consumption.

ModelQuantityDescription

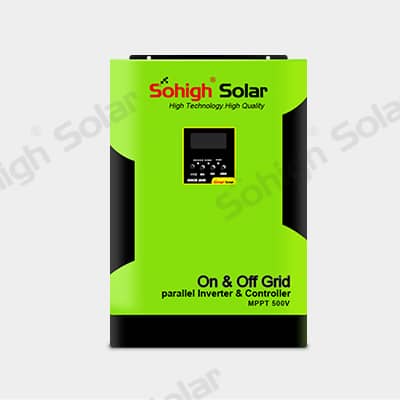

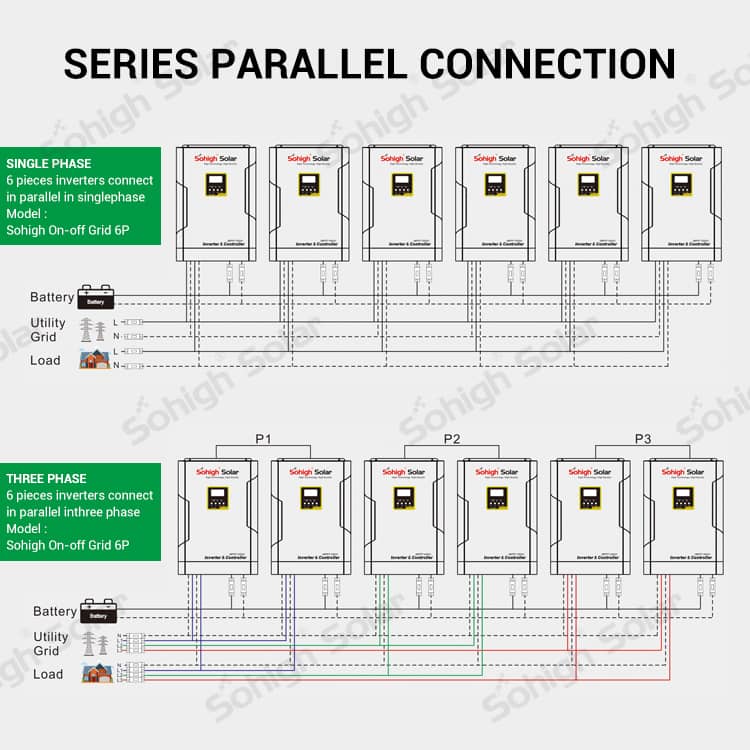

Sohigh On-Off Grid 5000W6 pieces

Model: Sohigh On-Off Grid 6PRated Power: 6P/5000W

Battery Rated voltage: 48 VDC

AC Input Voltage range: 190-260VAC,50/60Hz

Output Voltage range: 220VAC

Working Type:With / Without Battery (Optional)

Max.PV Power: 5000W (80A)

MPPT Solar Charge Controller:

Max.Solar Voltage(VOC): 500V

MPPT Voltage Range: 120-450V

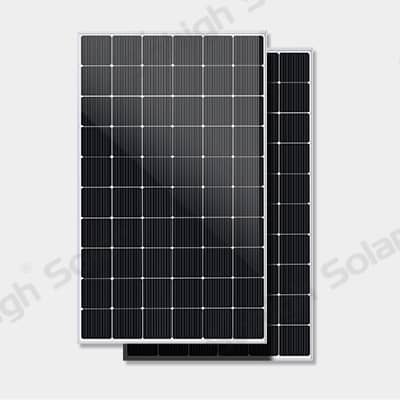

Solar Panel60 pieces

Peak power(Pmax): 410W

Maximum Power Current(Imp): 13 A

Maximum Power Voltage(Vmp): 30.78 V

Short Circuit Current(Isc): 13.78 A

Open Circuit Voltage(Voc):37.02 V

Solar Battery24 pieces

2V Battery



Rated Capacity: 2V1000AH

Model Type:Solar Gel Battery;Sealed

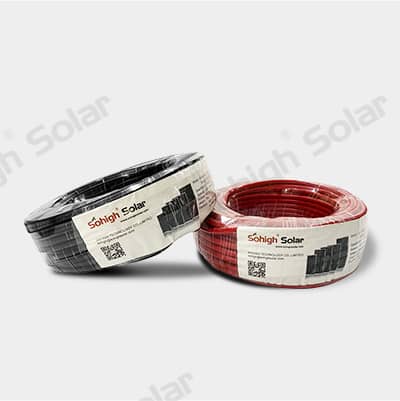

Solar CableOne Set

4mm²

Single-core

Black Color 25m

Red Color 25m

MC4 ConnectorOptional

Rated current: 30A

Rated voltage: 1000VDC

Solar panel bracketOptional

Roof Bracket

Ground Bracket

DC BreakerOptionalIt has overloading and short circuit protection.
Lightning ProtectorOptionalProtect Photovoltaic (PV) Panels from surges.
