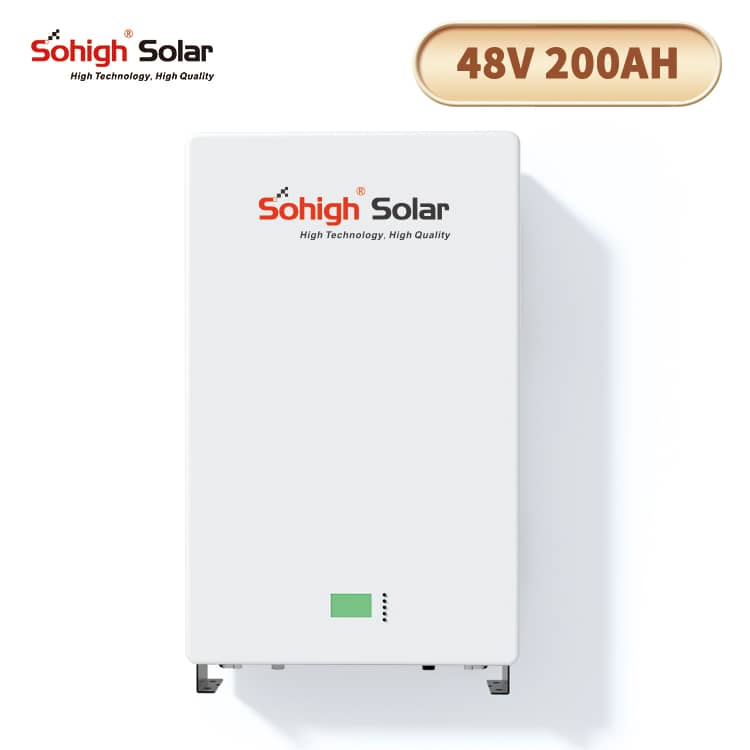

48V 200AH Wall Mounted Lithium Battery

Model: Sohigh LiBAT-200AH-48V
Brand: Sohigh Solar
Voltage(V): 48V
Product Origin: Guangzhou,China
Capacity: 200A
Material: Lithium ion

A 48V 200AH wall mounted lithium battery offers several benefits compared to other types of batteries and configurations. Here are some advantages:

High Energy Density: Lithium batteries have a higher energy density compared to traditional lead-acid batteries. This means they can store more energy in a smaller and lighter package. A 48V 200AH lithium battery can provide a significant amount of energy storage capacity in a compact form factor.

Longer Lifespan: Lithium batteries generally have a longer lifespan compared to lead-acid batteries. They can withstand a higher number of charge-discharge cycles before experiencing significant capacity degradation. This translates to a longer service life and lower maintenance requirements.

Efficient Energy Conversion: Lithium batteries have higher charge and discharge efficiency compared to lead-acid batteries. They can convert electrical energy more effectively, resulting in less energy loss during the charging and discharging process. This efficiency translates to better overall system performance and reduced energy waste.

Faster Charging: Lithium batteries can be charged at a faster rate compared to lead-acid batteries. They have a higher charge acceptance, allowing them to absorb energy more quickly. This means that the battery can be charged in a shorter amount of time, enabling faster system recharging and reducing downtime.

Lightweight and Space-Saving: The compact and lightweight design of a wall mounted lithium battery makes it easy to install and saves valuable space. This is particularly beneficial in applications where space is limited, such as residential or commercial installations.

Scalability: Lithium batteries can be easily connected in parallel or series to increase the overall energy storage capacity. This scalability allows for flexible system expansion and adaptation to changing energy needs.

Safety Features: Lithium batteries typically incorporate advanced safety features, such as overcharge protection, short-circuit protection, and thermal management systems. These features help ensure safe operation and minimize the risk of accidents or damage.

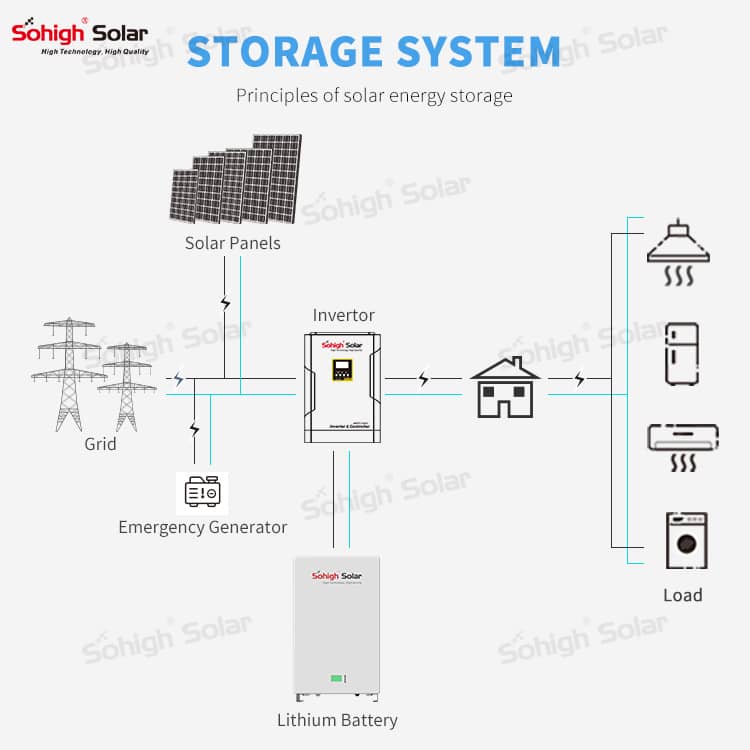

Overall, a 48V 200AH wall mounted lithium battery offers advantages such as high energy density, longer lifespan, efficient energy conversion, faster charging, compact design, scalability, and built-in safety features. These benefits make it an attractive choice for applications requiring reliable and high-performance energy storage solutions, including residential solar systems, backup power systems, and off-grid installations.

Electrical CharacteristicsNominal Voltage48V
Nominal Capacity200AH
Energy9600Wh
Internal Resistance≤500mΩ
Cycle Life>3500 cycles @1C 100%DOD
Months Self Discharge<3%
Efficiency of Charge100% @0.2C
Efficiency of Discharge96~99% @1C



Standard Charge

Charge Voltage54.8±0.2V
Charge Mode0.2C to 14.6V, then 14.6,charge current 0.02C(CC/CV)
Charger Current30A
Max. Charge Current30A
Charge Cut-Off Voltage55.5V±0.2V



Standard Discharge

Continuous Current100A
Max. Pulse Current150A(<3s)
Discharge Cut-off Voltage37.5V



Mechanical

Charge Temperature0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
