Solar Mono Panel 250W

Power(W): 250W
Model: Sohigh SP-250M
Brand: Sohigh Solar
Product Origin: Guangzhou,China
Material: Mono

About Sohigh SP-250M solar panel

Solar panels 250w refer either to a photovoltaic module, a solar hot water panel, or to a set of solar photovoltaic (PV) modules electrically connected and mounted on a supporting structure. A PV module is a packaged, connected assembly of solar cells. Solar panels can be used as a component of a larger photovoltaic system

to generate and supply electricity in commercial and residential applications. Each module is rated by its DC output power under standard test conditions (STC).

Sohigh Solar monocrystalline solar panels 250w are made with monocrystalline silicon solar cells, which are easily recognizable by the even dark coloring of the cells. Monocrystalline solar cells are made out of silicon ingots, which are cylindrical in shape. To optimize performance and lower costs of a single monocrystalline solar cell, four sides are cut out of the cylindrical ingots to make silicon wafers, which is what gives monocrystalline solar panels their characteristic appearance.

Monocrystalline solar panels 250w uses the latest innovative cell technology, increasing module power output and system reliability, ensured by 17 years of experience in module manufacturing, well-engineered module design, an automated manufacturing process and 100% EL testing.

ModuleSohigh SP-250M

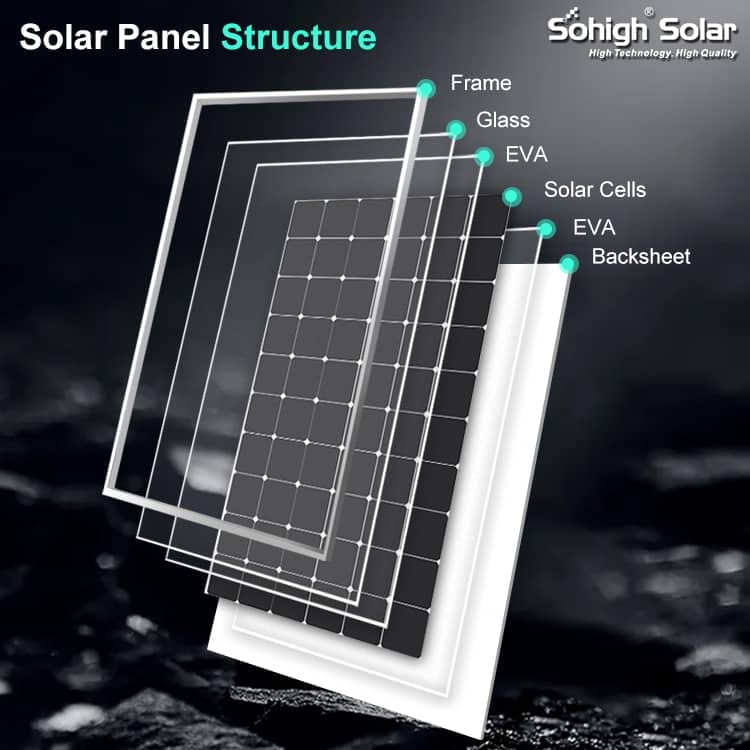

EncapsulationClass/Eva/Cell/Eva/Backsheet
Maximum Power Pmax (W)250
Maximum Power Voltage (Vmp/V)18.24
Maximum Power Current (Imp/A)13.16
Open Circuit Voltage (Voc/V)21.8
Short Circuit Current (Isc/A)13.95
Module Efficiency (%)20.70
Power Tolerance (W)0 ~ +5W
Temperature Coefficient of Isc (αIsc)+0.043%/℃
Temperature Coefficient of Voc (βVoc)-0.26%/℃
Temperature Coefficient of Pmax (γPmp)-0.36%/℃
STCIrradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5

Please contact us to get the latest datashet.
