Power(W): 200W
Model: Sohigh SP-200M
Brand: Sohigh Solar
Product Origin: Guangzhou,China
Material: Mono
The Sohigh Solar 200 Watt Monocrystalline Solar Panel is the perfect component for a larger solar power (PV) system. The panel includes solar connector leads that extend from the junction box affixed to the back. The connector leads are compatible with the Sohigh Solar Adaptor Kit allowing for a quick and simple connection. Each Sohigh 200W Monocrystalline Solar Panel is quality tested to ensure safety and longevity. Built durable for outdoor use, these panels are capable of withstanding heavy snow and strong wind loads. Whether you plan to use the solar panel for seaside travels to the beach or your cabin in the mountains, this panel can be a great start or addition to any Sohigh Solar off-grid system!
| Module | Sohigh SP-2500M | |||

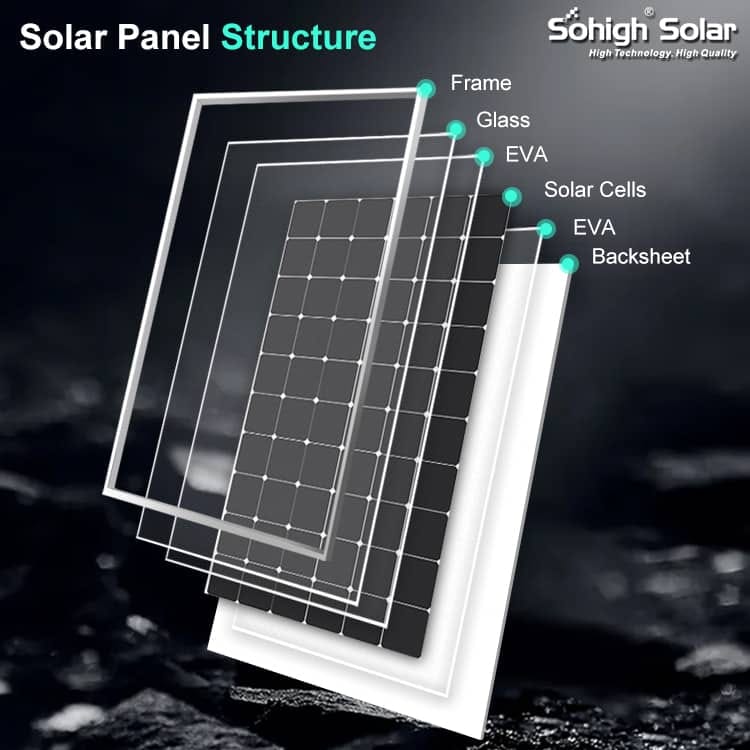

| Encapsulation | Class/Eva/Cell/Eva/Backsheet | |||
| Maximum Power Pmax (W) | 200 | |||
| Maximum Power Voltage (Vmp/V) | 18.24 | |||
| Maximum Power Current (Imp/A) | 10.96 | |||
| Open Circuit Voltage (Voc/V) | 21.8 | |||
| Short Circuit Current (Isc/A) | 11.62 | |||
| Module Efficiency (%) | 20.40 | |||
| Power Tolerance (W) | 0 ~ +5W | |||
| Temperature Coefficient of Isc (αIsc) | +0.043%/℃ | |||
| Temperature Coefficient of Voc (βVoc) | -0.26%/℃ | |||
| Temperature Coefficient of Pmax (γPmp) | -0.36%/℃ | |||
| STC | Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5 | |||
Please contact us to get the latest datashet.
