Power(W): 300W
Model: Sohigh SP-300M
Brand: Sohigh Solar
Product Origin: Guangzhou,China
Material: Mono
About Sohigh SP-300M solar panel
Adding a Sohigh 300 Watt black frame Monocrystalline Solar Panel to a home or commercial building is the first step in converting the structure from being energy-dependent to energy producing. Primarily used for residential and commercial purposes, rooftop solar power systems are the perfect way to decrease an electric bills. Also great for large off-grid systems, the 300W Monocrystalline Panel can be used in multi-panel solar arrays for cabins and sheds. The included PERC solar cells are efficient and help make the panel smaller and lighter.
It can be used for many different applications, even work sheds,garages, or campsideal for residential and commercial rooftop systems.
Features of the Sohigh SP-300M 60cel solar panel
- Solar Cells high efficiency poly solar cells ensure high performance of the solar module and create maximum power output.
- Front High-transmission (over 92% or 95%) 3.2mm tempered glass Back TPT; Encapsulation EVA.
- Aluminum Frame screw-less corner joints provide superior rigidity, ten predrilled mounting holes ease of installation.
- Superior Junction Box Multi function junction box with waterproof capabilities.
- Under 10% decrease in output power within 10 years and 20% decrease in 20-25 years. Tolerance ±3%.
- High impact resistance affords superior performance during severe weather-high wind, driving rain, heavy snow and hail.
- Moisture proof and corrosion resistant. Widely used in various electric appliances and instruments in the area, such as grid nets, home power systems, telecommunications and illumination.
Module | Sohigh SP-300M | |||

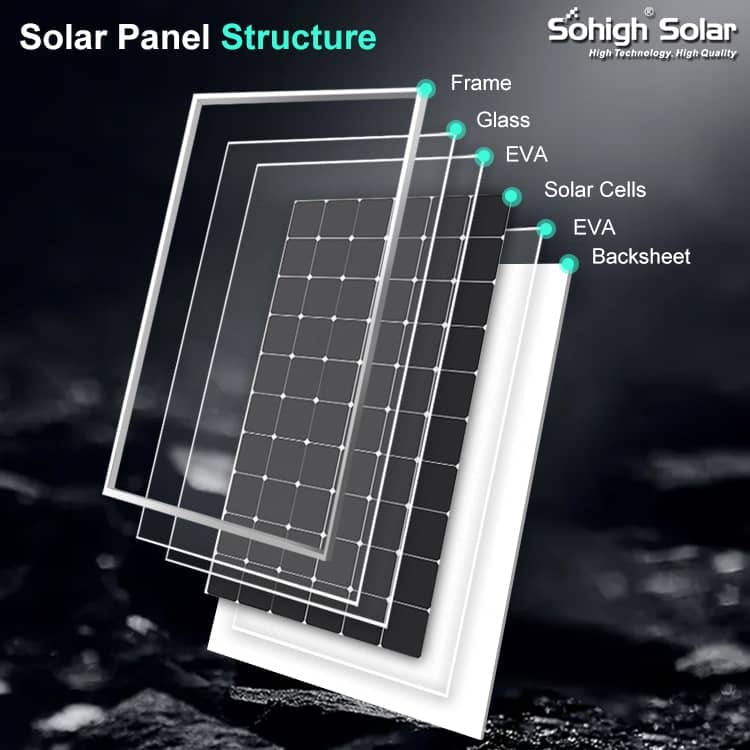

Encapsulation | Class/Eva/Cell/Eva/Backsheet | |||
Maximum Power Pmax (W) | 300 | |||
Maximum Power Voltage (Vmp/V) | 34.20 | |||
Maximum Power Current (Imp/A) | 8.77 | |||
Open Circuit Voltage (Voc/V) | 41.04 | |||
Short Circuit Current (Isc/A) | 9.03 | |||
Module Efficiency (%) | 20.50 | |||
Power Tolerance (W) | 0 ~ +5W | |||
Temperature Coefficient of Isc (αIsc) | +0.043%/℃ | |||
Temperature Coefficient of Voc (βVoc) | -0.26%/℃ | |||
Temperature Coefficient of Pmax (γPmp) | -0.36%/℃ | |||
STC | Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5 |
Please contact us to get the latest datashet.
