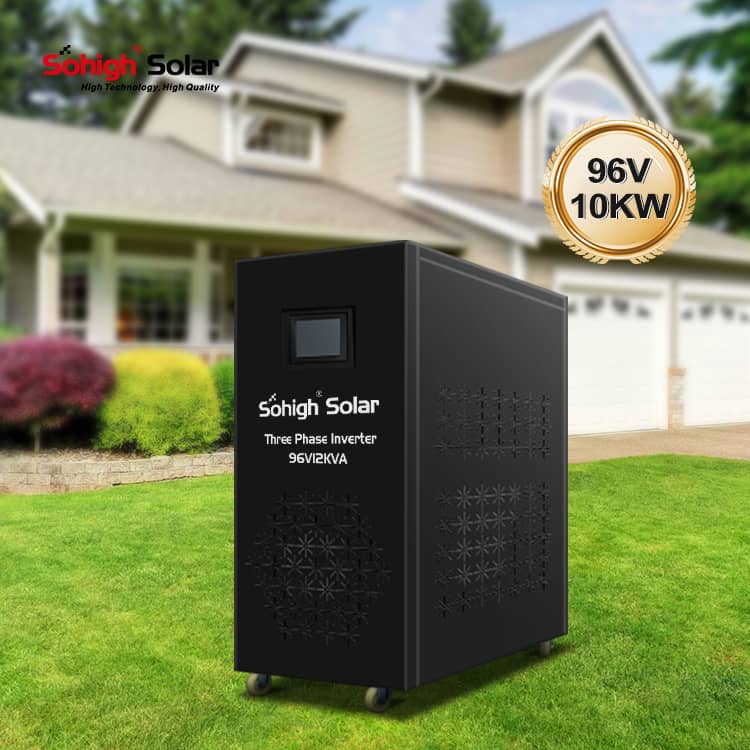

Power(W): 10KW
Model: Sohigh 96V 10KW (Three Phase)
Brand: Sohigh Solar
Voltage(V): 96V
Product Origin: Guangzhou,China
Feature of the 96v 10kw 3 phase inverter
A 96V 10kW 3-phase inverter with the mentioned specifications would likely have several features designed to ensure efficient and reliable power conversion. Here are some common features you might find in such an inverter:
High Power Capacity: The inverter can handle a power output of up to 10 kilowatts, making it suitable for a range of industrial and high-power applications.
DC Input Voltage Range: While the inverter’s nominal input voltage might be 96V, it may have a certain range of input voltages it can accommodate to handle variations in the DC power source.
Three-Phase Output: The inverter will generate a three-phase AC output, suitable for driving three-phase motors and other equipment that requires such a power supply.
Efficiency: Modern inverters aim for high efficiency to minimize energy losses during the DC-to-AC conversion process. Look for an inverter with a high efficiency rating, especially at the desired load levels.

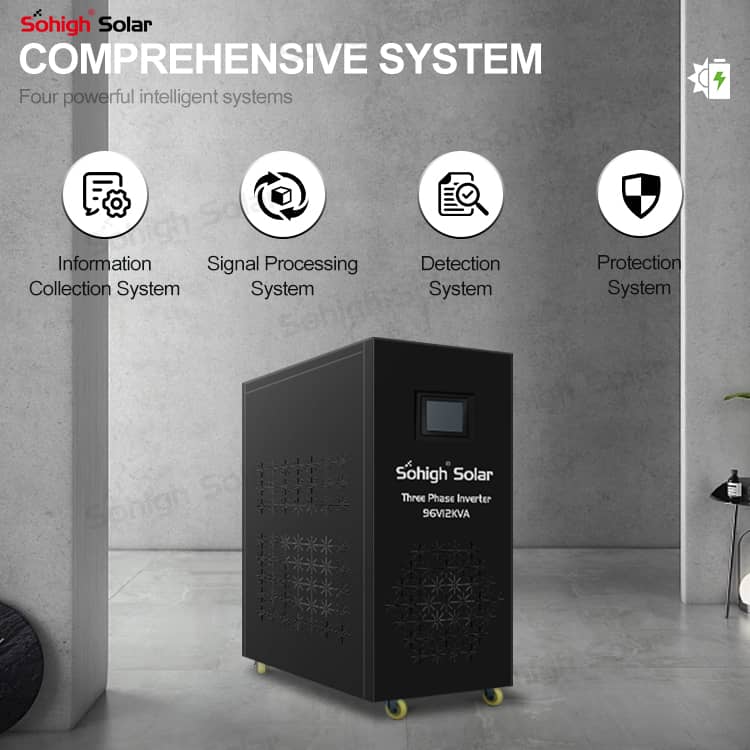

Protection Mechanisms: Inverters typically include a range of protection features to prevent damage to the inverter and connected equipment. These might include overvoltage protection, undervoltage protection, overcurrent protection, short circuit protection, and overtemperature protection.
Cooling System: Inverters can generate heat during operation, so they often incorporate cooling systems like fans or heatsinks to dissipate heat and maintain safe operating temperatures.
User Interface: Many inverters have a user interface that might include an LCD display or LED indicators to provide information about the inverter’s status, output power, input voltage, and potential issues.
Isolation: Isolation between the DC input and AC output is important for safety and proper functioning. Many inverters provide galvanic isolation to prevent unwanted current flow.
MPPT (Maximum Power Point Tracking): If the inverter is used with solar panels, it might include MPPT technology to optimize the power extraction from the solar array by tracking the maximum power point of the panels.
Configurability: Some inverters offer configurable settings such as output frequency, voltage limits, and other parameters to adapt to specific applications.
| Model | Sohigh 96V 10KW (Three Phase) | |||
Capacity | 10KW | |||
Battery Voltage | 96VDC | |||
Input | ||||
Phase | 3-Phase | |||
AC Voltage Regulation | 380 Vac±20% | |||
Frequency Range | 50HZ-60HZ | |||
Output | ||||
Output Voltage | Battery mode: 380 Vac±3% Mains mode: 380 Vac±20% | |||
Frequency Range(AC Mode) | 50HZ~60HZ | |||
Frequency Range( DC Mode) | 50HZ~60HZ±0.1 HZ | |||
Overload(Mains mode ) | Mains mode:100%~ 110% , 10min ; 110%~ 130% , 1min ; >130% , 1sec | |||
Overload(Battery mode ) | Battery mode:100%~ 110% ,30sec ; 110%~ 130% , 10sec ; >130% , 1sec | |||
Current Crest Ratio | 3:1 max | |||
Transfer Time | <4ms | |||

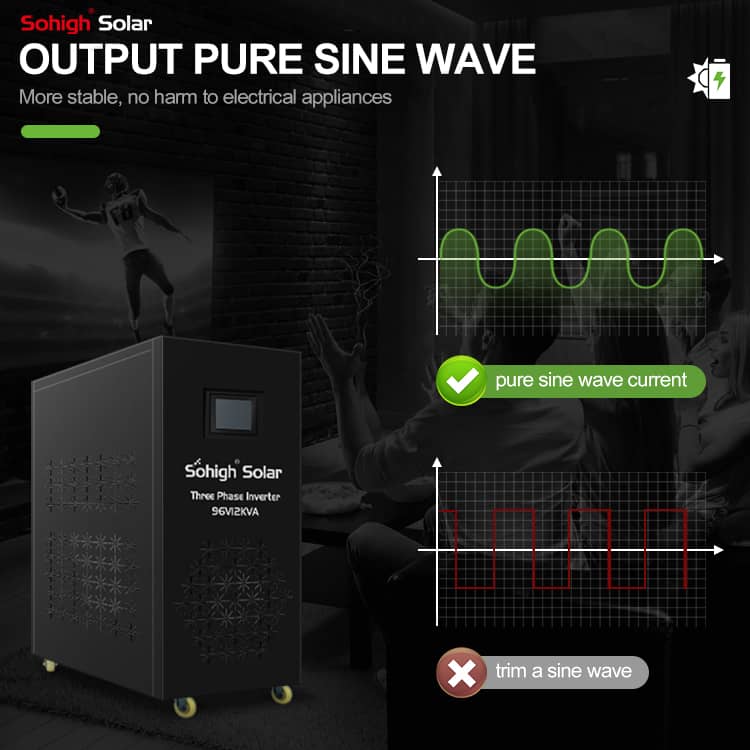

Wave form | Pure Sine Wave | |||
Efficiency | 85% | |||
Isolation Type | Isolated output | |||
Battery | ||||
Battery Type | Depending on applications | |||
Battery Numbers | Depending on applications | |||
Environment | ||||
Operation Tenperature | 0~40℃(Battery life cycle will be shorten when teperature is above 25℃) | |||
Operation Humidity | <95% and no condensing | |||
Operation Altitude | <1000m | |||
Noise level | <58 db ( 1m distance) | |||
Management | ||||
Display | 7inch Touch Screen System | |||
Product Size | 700*400*940 (W*D*H mm) | |||
Packing Size | 790*490* 1140 (W*D*H mm) | |||
Noted | 790*490* 1140 (W*D*H mm) | |||
Please contact us to get the latest datashet.
