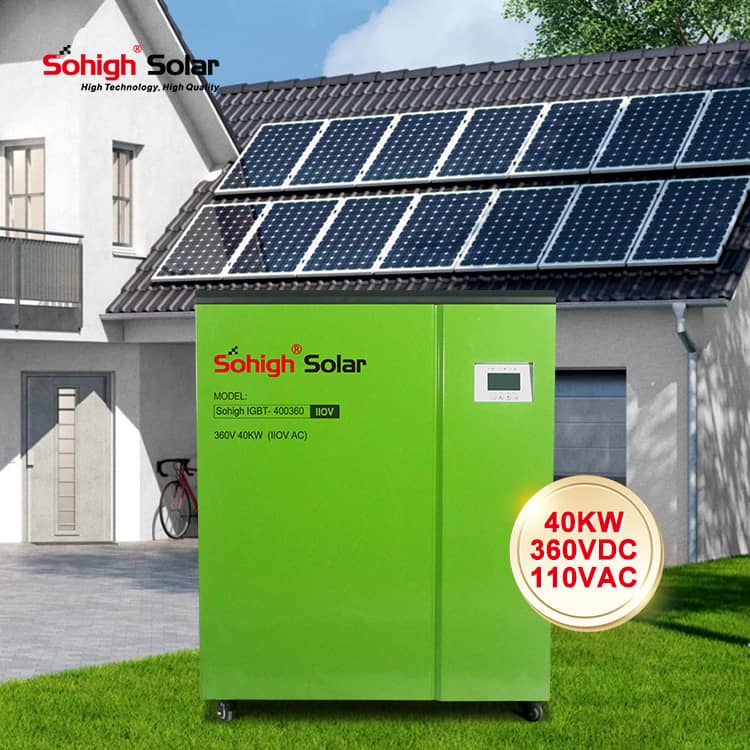

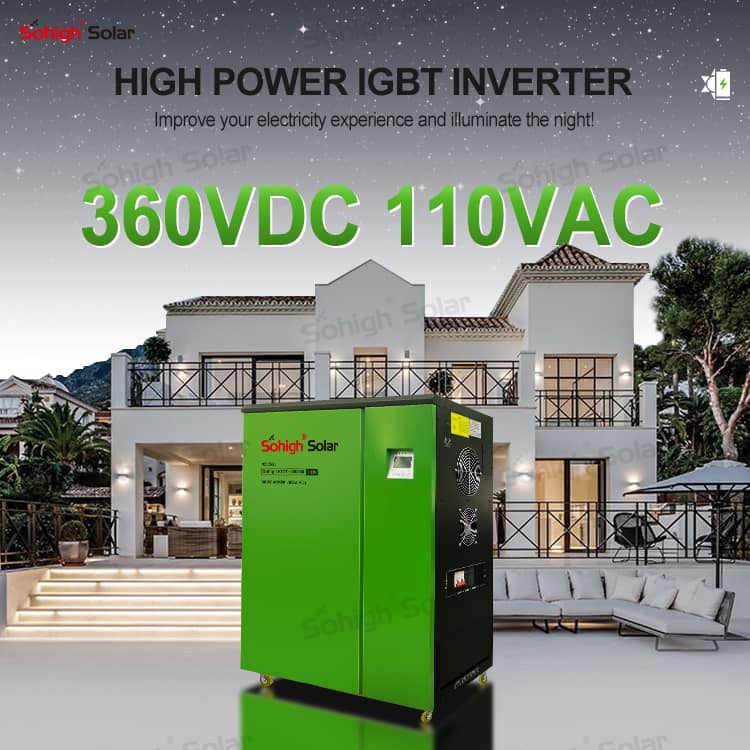

Power(W): 40KW
Model: Sohigh IGBT- 40360
Brand: Sohigh Solar
Voltage(V): 360V
Product Origin: Guangzhou,China
What is IGBT inverter?
IGBT stands for Insulated Gate Bipolar Transistor, and an IGBT inverter is a type of power inverter that utilizes IGBT technology for converting DC power into AC power. IGBTs are semiconductor devices that combine the best characteristics of both bipolar junction transistors (BJTs) and metal-oxide-semiconductor field-effect transistors (MOSFETs).
An IGBT inverter is commonly used in various applications, including motor drives, renewable energy systems, uninterruptible power supplies (UPS), and industrial equipment. It offers several advantages over other types of power inverters:
High efficiency: IGBTs have low conduction losses and switching losses, resulting in high overall efficiency of the inverter system.
High switching frequency: IGBTs can switch at high frequencies, allowing for faster and more precise control of the AC output waveform.
High voltage and current handling capabilities: IGBTs can handle high voltages and currents, making them suitable for high-power applications.
Improved thermal performance: IGBT modules are designed with built-in heatsinks or cooling systems to dissipate heat effectively, ensuring reliable operation even at high power levels.
IGBT inverters are widely used in motor control applications, where they can efficiently convert DC power into variable-frequency AC power to control the speed and torque of electric motors. They are also employed in renewable energy systems, such as solar inverters and wind turbine converters, to convert the DC power generated by the renewable sources into grid-compatible AC power.
Overall, an IGBT inverter is a power inverter that utilizes IGBT technology, offering high efficiency, high switching frequency, and robust performance for various applications requiring the conversion of DC power to AC power.
| Model ：Sohigh IGBT- | 360V 40KW | ||
| Power | 40KW | ||
| Voltage | 360VDC | ||
| Instant power | Three times | ||
| DC Input | DC voltage | Three times | |
| Battery type | 360V(15-30K) | ||
AC Input | Phase | Single phase | |
| Frequency | 50Hz ± 10% | ||
| AC Input | 110V(95-135V)/220V(195-265V)(L+N+G)(optional) | ||
| AC output directly | 110V(95-135V)/220V(195-265V)(L+N+G)(optional) | ||
| Charging | Floating charge voltage | DC96V:116V / DC192V:232V / DC240V:290V / DC360V:435V | |
| Charge current | 10-20A adjustable(Charging current can be customized) | ||
| Invert outpt | Output voltage | 100/110/120/220/230/240 AC(L+N+G) ± 1% | |
| Frequency | 50Hz ± 0.1% | ||
| THD | 3%(Linear load) | ||
| Dynamic response | 5%(0%~100% load) | ||
| Invert efficiency | 87% | ||
| Alarm | Buzzing and LCD screen flicker | ||

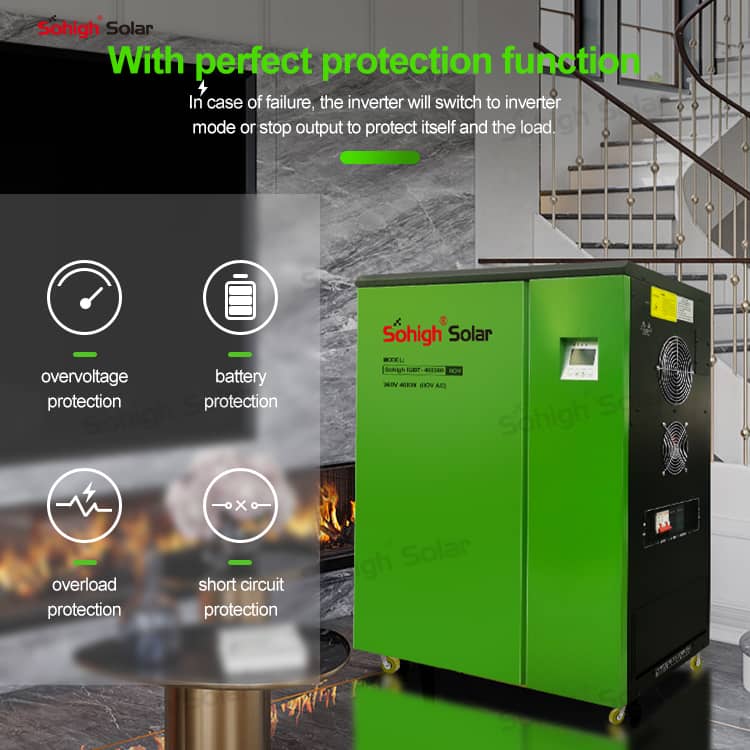

| Protection function | AC over voltage,under voltage,DC over voltage, under voltage,Overload,Output short circuit | ||
| Overload capacity | >100-120%,alarm 60s then shutdoen; >100-120%,back to normal working when cut down loads during alarm 60s; >150%,instant shutdown | ||
| Communication interface | USB/RS232/SNMP(option) | ||
| Protection class | Ip21 | ||
| Noise dB | 45db | ||
| Cooling mode | Forced ventilation | ||
| Ambient Temperature | Temperature 0-40℃，relative humidity 10%-90%,elevation | ||
Please contact us to get the latest datashet.
