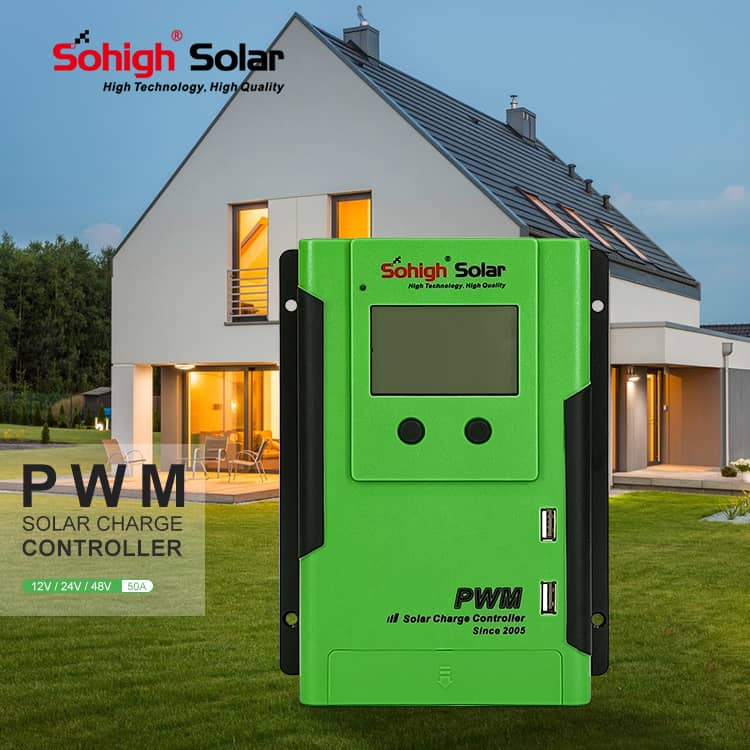

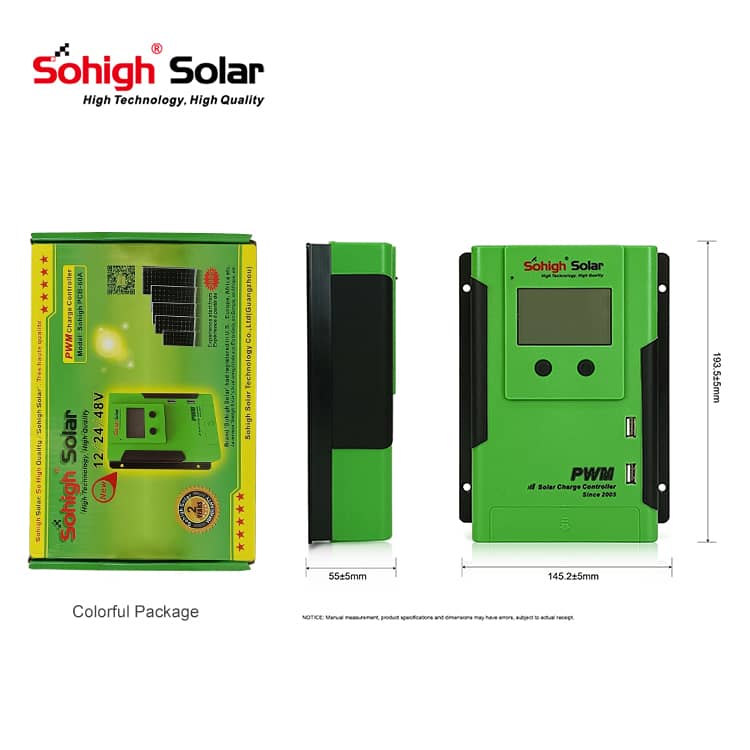

Model: Sohigh PCB-50A
Brand: Sohigh Solar
Voltage(V): 12/24/48V
Product Origin: Guangzhou,China
Capacity: 50A
Feature of the PWM solar charger controller
Unlike most of the low quality PWM charge controllers in the market, Sohigh Solar PWM models focus more on product reliability and user experience. We use first grade materials for our PWM controllers, to make it lasting as longer as MPPT models. For different use applications, we have different PWM controllers, like regular models, flush mount models, waterproof models, and models with APP operation function.
【Unique Design】Go chic with a flush mount PWM solar controller. It is easy to install and can blend with a wide range of decors to keep your space in the RV modern and minimal. Alternative wall mount with a bracket (included) is available as well. Unique USB port on the front display for USB devices charging.
【Unparalleled Compatibility】Encased in a compact frame, this intelligent solar regulator is compatible with 12V/24V Lithium, Sealed (AGM), GEL and Flooded batteries. Best of all, it can automatically recognize the battery voltage to kick off a charge.NOTE: the auto-recognition DOES NOT apply to lithium batteries. Preset the parameters before charging lithium batteries.
【Extensive Protection】The built-in multiple protection of PWM solar charge controller safeguards your off-grid power system from reverse polarity, over-voltage, over-current, over-discharge, short-circuits, reverse current, etc.
【Functional LCD Display】Solar regulator comes with Intuitive LCD screen to show you the operating data and status of the equipment. You can set the parameters configuration by key operation, suitable for home, industrial, commercial, etc.
| Model | Sohigh PCB-50A | Sohigh PCB-60A | |||||
| Rated Charge Current | 20A | 30A | |||||
| Voltage Range of Battery | 8V-32V；32V-64V | ||||||
| Max Open Voltage of Solar Panel | 50V；100V | ||||||
| System Rated Voltage | 12/24V Auto Rocognized | ||||||
| Temperature compensation coeficient | 4mV/℃/2V(25℃) | ||||||
| Operating Temperature | -20℃~+55℃(to run at full rated current continuously) | ||||||
| Storage Temperature | -30℃~+80℃ | ||||||
| Working Humidity | ≤95%,no condensation | ||||||
| Photovoltic module utilization ratio | ≤10mA; ≤13mA | ||||||
| IP code | IP30 | ||||||
| Wiring | PCB PCB terminal, I<10mm’ | ||||||
| Battery Type | GEL,SLD,FLD and Usr (default) | ||||||
| USB | 5V/1A | ||||||
| Man-machine interface | LCD,2 Buttons | ||||||
| Light control voltage | 5V(1V~10V)X1/X2/X3/X4 | ||||||
| Charge loop voltage drop | ≤0.21V | ||||||
| Man-machine interface | ≤0.10V | ||||||
| PV voltage | ≤50V | ||||||
| Charging mode* | PWM Multi-stage(bulk,float,absorption,equalized) | ||||||
| Load working mode | Regular control mode; Light control with switch-off point at night and switch-on point before dawn Light control mode | ||||||
