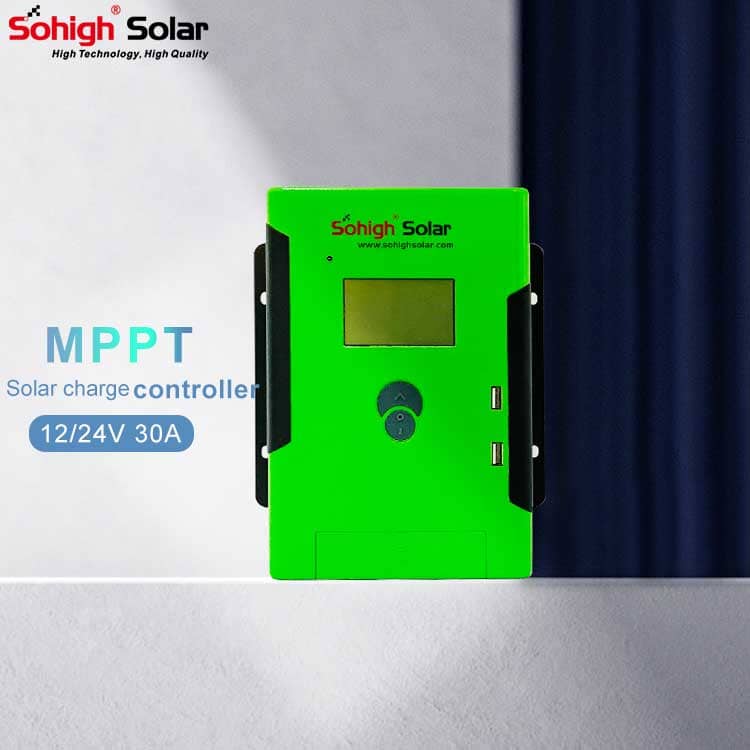

Model: Sohigh MCA-2430
Brand: Sohigh Solar
Voltage(V):12/24V
Product Origin: Guangzhou,China
Capacity: 30A
Feature of the solar charger controller
1.MPPT solar charge controller 12V/24V auto identification, max.

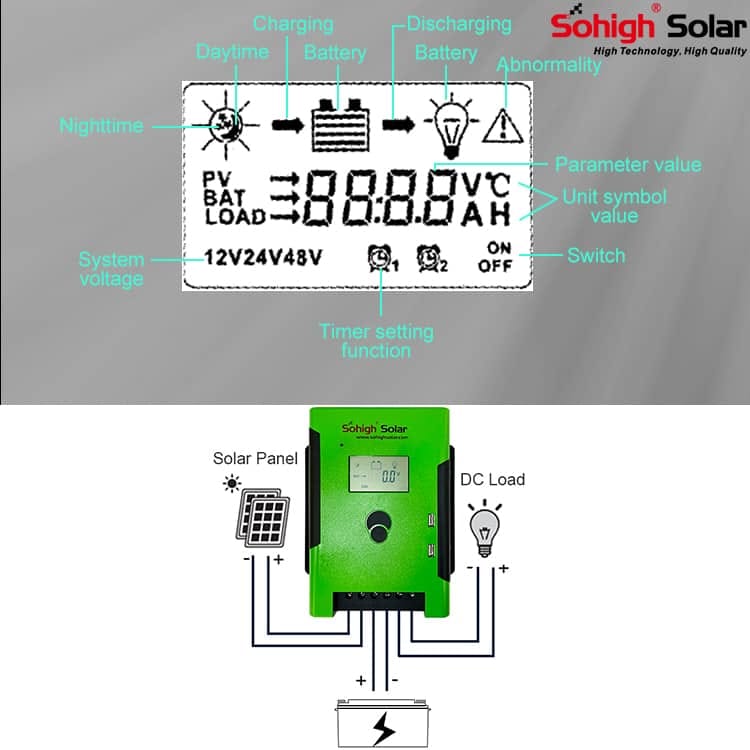

2.LCD display real-time power generation and current, daily power generation, cumulative power generation and fault record.
3.Adopting the advanced MPPT algorithm to track the maximum power point of solar power generation in real time, high charging efficiency over 98% and tracking accuracy over 99.73%.
4.Support lead-acid batteries, colloidal batteries and lithium batteries. 3-stage battery charging for efficiency and safety.
5.Battery temperature sensor (BTS) automatically provides temperature compensation to ensure the controller’s life.
6.Multiple protection including PV array short circuit, overvoltage, and overcurrent reverse polarity protection; battery overcharge, reverse connection, under voltage protection.
Model ：Sohigh MCA- | 2430 | 2440 | |||||
Rated Charge Current | 30A | 40A | |||||
Charging mode* | MPPT automatic maximum power point tracking | ||||||
Charging method | Three stages : Constant current charging(MPPT),Equalizing charging, float charging | ||||||
System Rated Voltage | 12/24V Auto Rocognized | ||||||
System identification voltage range | 12V system: DC 9V-DC15V 24V system: DC18V-DC30V | ||||||
MPPT Working voltage range | 12V system: DC18V-DC80V 24V system: DC30V-DC100V | ||||||
Quiescent dissipation | ≤2W | ||||||
Overall Unit efficiency | ≥96.5% | ||||||
Photovoltic module utilization ratio | ≤99% | ||||||
Temperature compensation coefficient | 4mV/℃/2V(25℃) | ||||||
Operating Temperature | ‘-20℃~+55℃(to run at full rated current continuously) | ||||||
Storage Temperature | ’-30℃~+80℃ | ||||||
Protection Class | IP30 | ||||||
Grounded type | Positive grounded | ||||||
Battery Type | GEL,SLD,FLD and Usr (default) | ||||||
Light control voltage | 5V | ||||||
Man-machine interface | LCD,2 Buttons | ||||||
Static loss | ≤9.2mA/12V , ≤11.7mA/24V | ||||||
Charge loop voltage drop | ≤0.29V | ||||||
Discharge loop voltage drop | ≤0.16V | ||||||

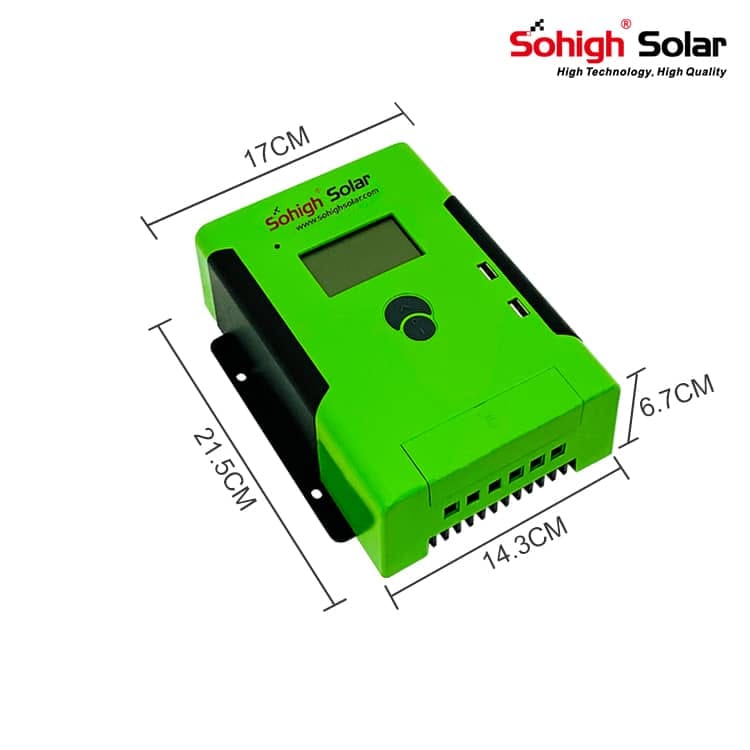

Aperture for installation | Φ5mm | ||||||
Optional function | Remote communication, TTL, Standard Modbus protocol | ||||||
