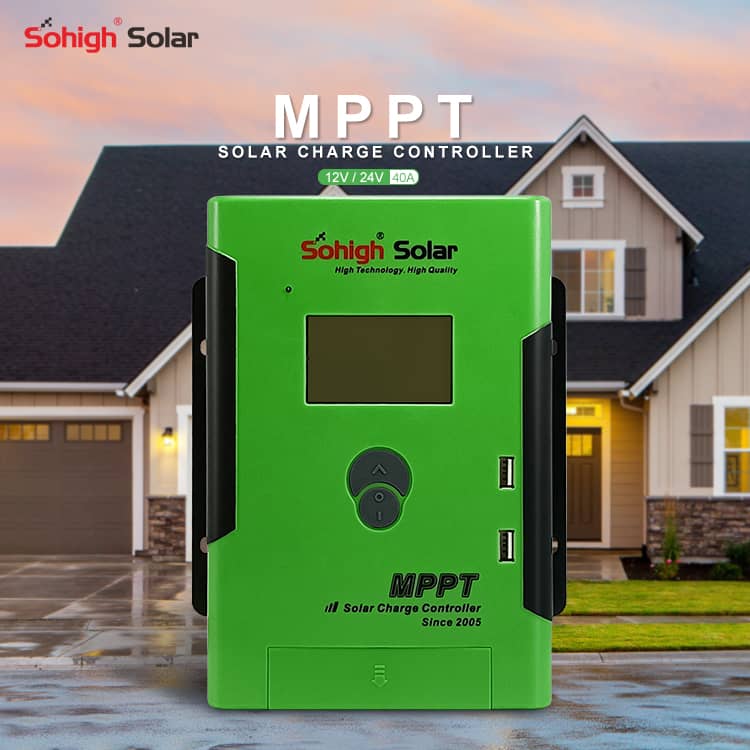

Model: Sohigh MCB-40A
Brand: Sohigh Solar
Voltage(V):12/24V
Product Origin: Guangzhou,China
Capacity: 40A
Feature of the MPPT solar charger controller
1.With the advanced dual-peak or multi-peak tracking technology, when the solar panel is shadowed or part of the panel fails resulting in multiple peaks on the I-V curve, the controller is still able to accurately track the maximum power point.
2. The maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems. The charging efficiency is 15% to 20% higher than the conventional PWM method.
3. MPPT Tracking efficiency is up to 99.9%.
4. Advanced digital power technology raises the circuit energy conversion efficiency to 98%.
5. The controller features a limited current charging mode. When the solar panel power exceeds a certain level and charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.
6. Support charging lithium batteries, gel batteries, sealed batteries and vented batteries, etc.
7. The controller has an overheat protection mechanism. With charging line loss compensation, the voltage of the battery terminal can be accurately controlled.
8. The controller features a limited current charging mode. When the solar panel power exceeds a certain level and charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.
9. The controller has an overheat protection mechanism. When the temperature exceeds the set value, the charging current will decline in linear proportion and discharging will be shut off so as to curb the temperature rise of the controller and keep the controller from being damaged by overheat.
Model ：Sohigh MCA- | 2430 | 2440 | |||||
Rated Charge Current | 30A | 40A | |||||
Charging mode* | MPPT automatic maximum power point tracking | ||||||
Charging method | Three stages : Constant current charging(MPPT),Equalizing charging, float charging | ||||||
System Rated Voltage | 12/24V Auto Rocognized | ||||||
System identification voltage range | 12V system: DC 9V-DC15V 24V system: DC18V-DC30V | ||||||
MPPT Working voltage range | 12V system: DC18V-DC80V 24V system: DC30V-DC100V | ||||||
Quiescent dissipation | ≤2W | ||||||
Overall Unit efficiency | ≥96.5% | ||||||
Photovoltic module utilization ratio | ≤99% | ||||||
Temperature compensation coefficient | 4mV/℃/2V(25℃) | ||||||
Operating Temperature | ‘-20℃~+55℃(to run at full rated current continuously) | ||||||
Storage Temperature | ’-30℃~+80℃ | ||||||
Protection Class | IP30 | ||||||
Grounded type | Positive grounded | ||||||
Battery Type | GEL,SLD,FLD and Usr (default) | ||||||
Light control voltage | 5V | ||||||
Man-machine interface | LCD,2 Buttons | ||||||
Static loss | ≤9.2mA/12V , ≤11.7mA/24V | ||||||
Charge loop voltage drop | ≤0.29V | ||||||
Discharge loop voltage drop | ≤0.16V | ||||||
Aperture for installation | Φ5mm | ||||||
Optional function | Remote communication, TTL, Standard Modbus protocol | ||||||
