Model: Sohigh MCB-100A
Brand: Sohigh Solar
Voltage(V): 12/24/36/48V
Product Origin: Guangzhou,China
Capacity: 100A

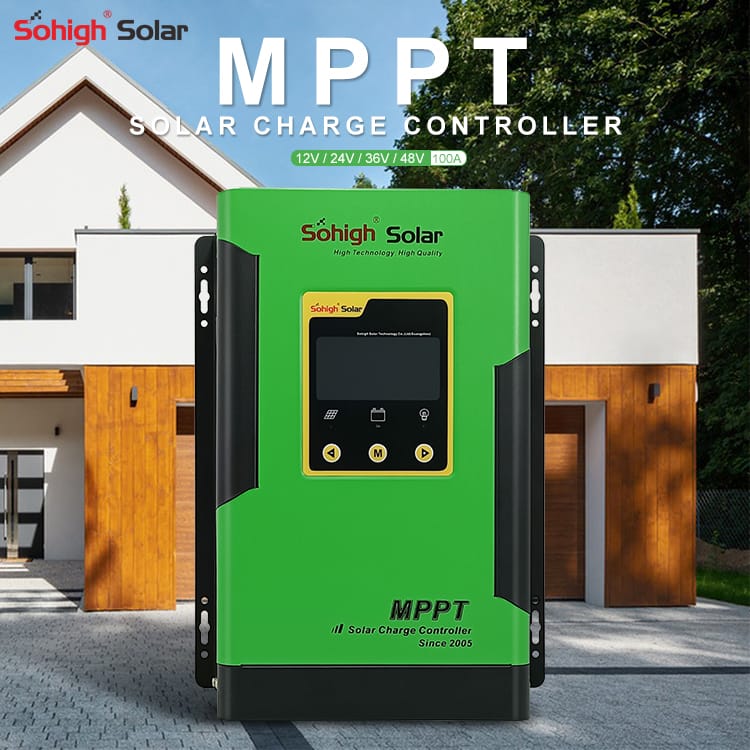

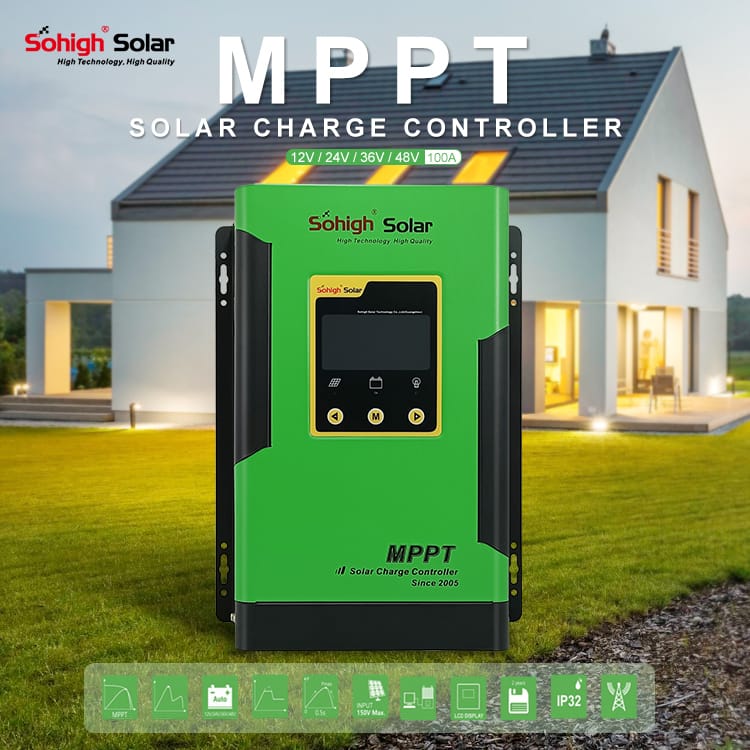

Sohigh Solar MCB 100A
intelligent 100a mppt solar charge controller 12v 24v 36v 48v tracks the maximum power point of a PV array to deliver the maximum available current for charging batteries.

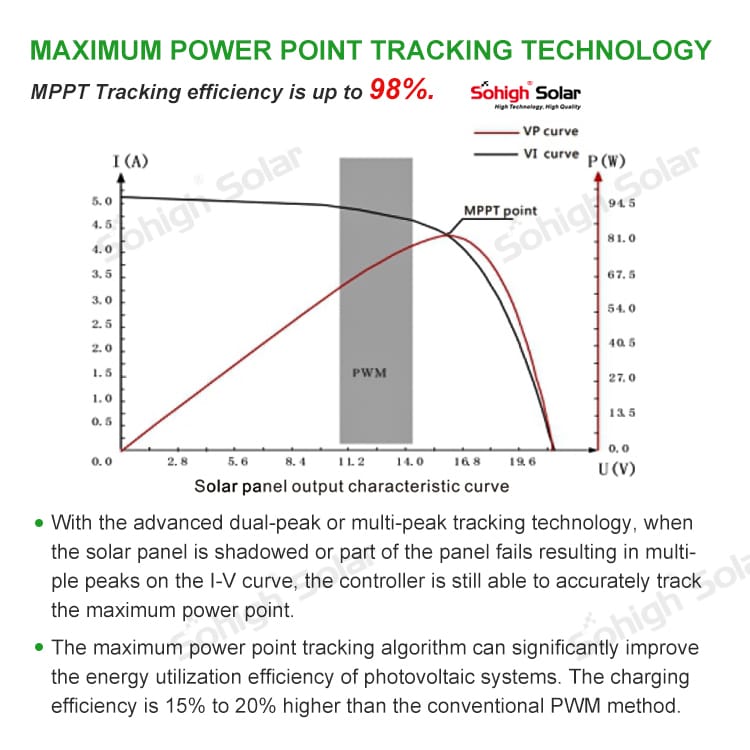

Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 97%. Touch LCD screen and LED indicators for displaying system operation information, customizable parameters, and error codes.
It protects the battery from becoming over-charged by the solar modules and over-discharged by the loads. By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage.
It is widely used in many fields such as RVs, communication base stations, household systems and field monitoring.

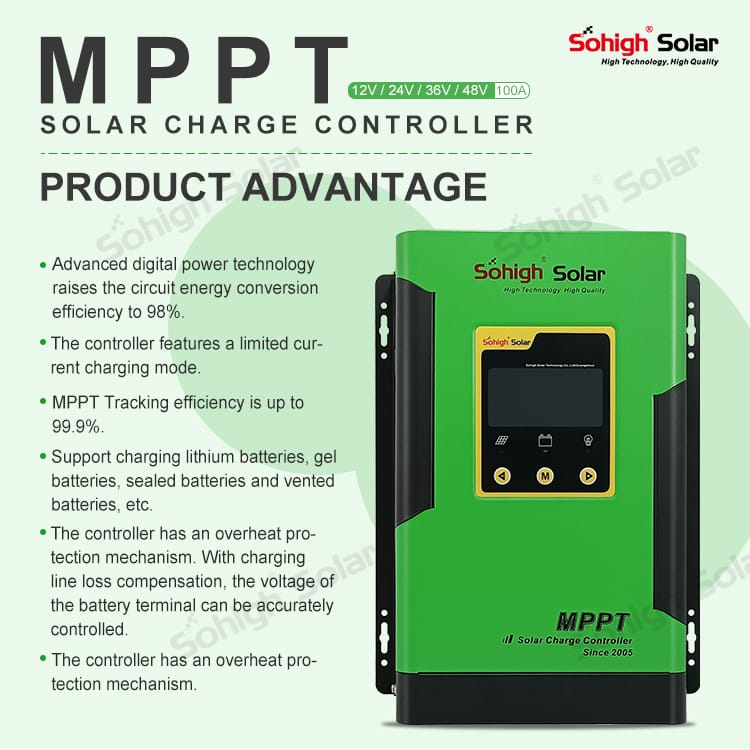

Feature of the MPPT solar charger controller
100 AMP MPPT Solar Charge Controller Features
Compatible for PV systems in 12V / 24V /36V/ 48V Auto.
MPPT tracking efficiency up to 99%.

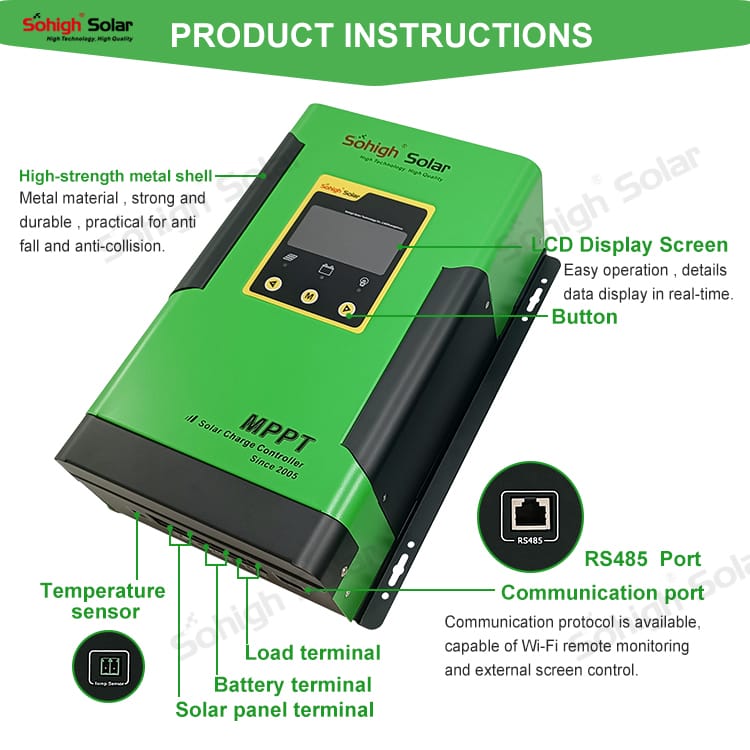

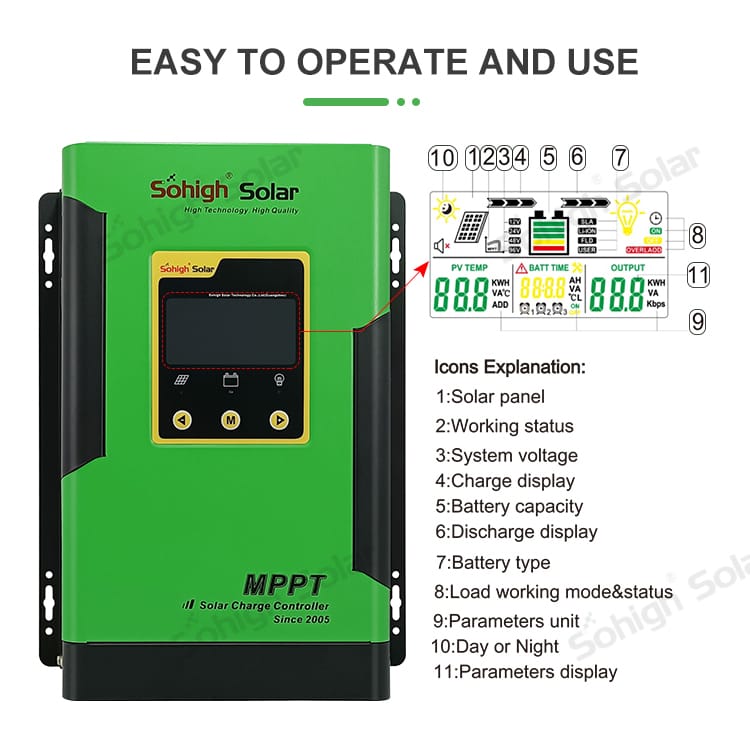

Touch LCD screen and LED indicators for operation information, customizable parameters, and error codes.
Three-stage charging optimizes battery performance.
Deep Cycle Sealed, Gel, Flooded, and Lithium battery option ready.
Automatic battery voltage detection.
User programmable for Absorption voltage/Floating voltage/Low voltage disconnect.
Ability to output in parallel to power DC loads.
Over-temperature protection.

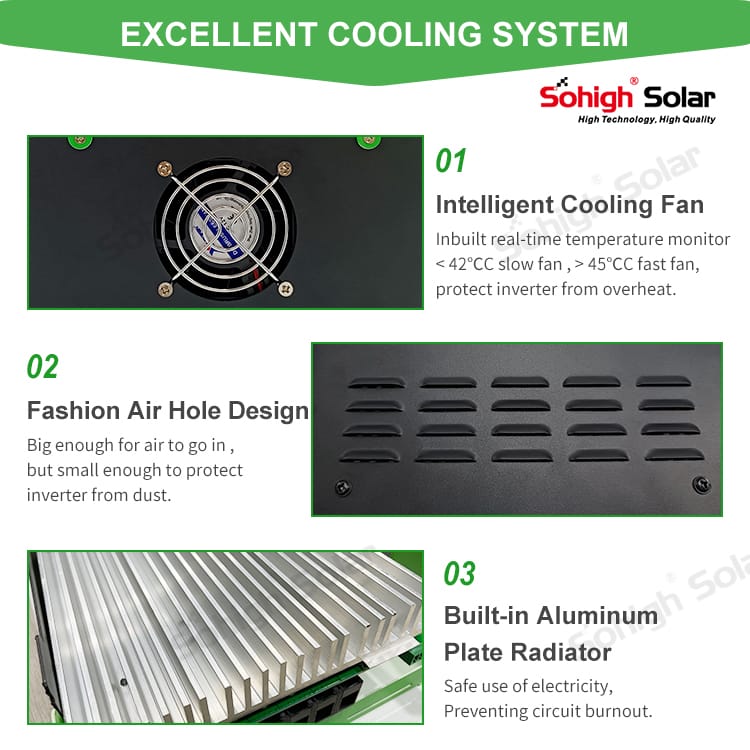

Die-cast aluminum design allows for efficient heat dissipation.
| Model ： | Sohigh MCB-80A | Sohigh MCB-100A | |||||
| Rated Charge Current | 80A | 100A | |||||
| Charging mode* | MPPT automatic maximum power point tracking | ||||||
| Charging method | Three stages : Constant current charging(MPPT),Equalizing charging, float charging | ||||||
| System Rated Voltage | 12/24/36/48 V Auto Rocognized | ||||||
| System identification voltage range | 12V system: DC 9V-DC15V24V system: DC18V-DC30V36V system: DC27V-DC45V48V system: DC36V-DC60V | ||||||
| MPPT Working voltage range | 12V system: DC18V-DC80V24V system: DC30V-DC100V36V system: DC40V-DC100V48V system: DC65V-DC150V | ||||||
| Quiescent dissipation | ≤2W | ||||||
| Overall Unit efficiency | ≥96.5% | ||||||
| Photovoltic module utilization ratio | ≤99% | ||||||
| Temperature compensation coefficient | 4mV/℃/2V(25℃) | ||||||

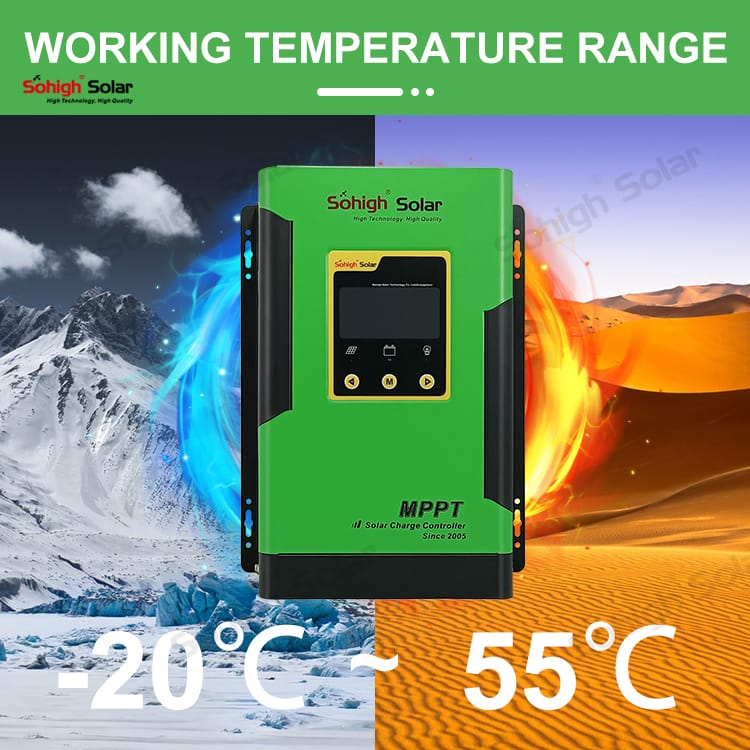

| Operating Temperature | ‘-20℃~+55℃(to run at full rated current continuously) | ||||||
| Storage Temperature | ’-30℃~+80℃ | ||||||
| Protection Class | IP30 | ||||||
| Grounded type | Positive grounded | ||||||
| Battery Type | GEL,SLD,FLD and Usr (default) | ||||||
| Light control voltage | 5V | ||||||
| Man-machine interface | LCD,2 Buttons | ||||||
| Static loss | ≤9.2mA/12V , ≤11.7mA/24V | ||||||
| Charge loop voltage drop | ≤0.29V | ||||||
| Discharge loop voltage drop | ≤0.16V | ||||||
| Aperture for installation | Φ5mm | ||||||
| Optional function | Remote communication, TTL, Standard Modbus protocol | ||||||
