Model: Sohigh BAT-150AH-F
Brand: Sohigh Solar
Voltage(V): 12V
Product Origin: Guangzhou,China
Capacity: 150AH

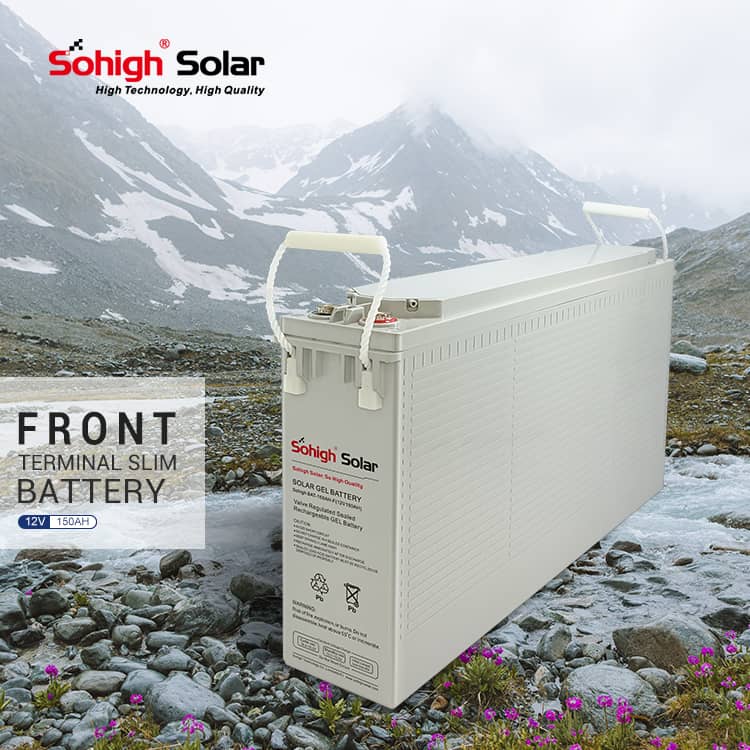

General Features for front terminal access telecom slim gel battery
Unique structure & Longer cycle life
Front terminals make the installation, maintenance and supervision easy. Shield designs protect terminals from short circuits and show good appearance. Thick plates, special formula of paste and plate making a process for a long service life.
Special Construction
· Positive plate – Thick high Sn low Ca grid minimize corrosion and prolong life
· Negative plate – Balanced Pb-Ca grid for improved recombination efficiency
· Electrolyte – Dilute high purity sulphuric acid with fumed Silica gel
· Battery container and cover – ABS
· Pillar seal – 100% factory tested, proven two layers epoxy resin seal
· Relief valve – Complete with integrated flame arrestor
Wide Operation Temperature Range
A wide range of temperature operating range is suitable for different areas. Sohigh Solar series batteries can be used in wide temperature range from -15°C to 50°C.
| Module | Sohigh BAT-150AH-F | |||
| Cells Per Unit | 6 | |||
| Voltage(V) | 12V | |||
| Terminal Type | T18 | |||
| Capacity | 150Ah@10hr-rate to 1.80V per cell @25℃ | |||
| Max.Discharge Current | 1000A(5 sec) | |||
| Internal Resistance | Approx. 5m Ω | |||
| Recommended Maximum Charging |
45A | |||
| Operating Temperature range | Discharge:-20℃~60℃，Charge:0℃~50℃ Storage:-20℃~60℃ | |||
| Normal Operating Temperature Range | 25℃±5℃ | |||
| Float charging Voltage | 13.6 to 13.8V DC/unit Average at 25℃ | |||
| Equalization and Cycle service | 14.4 to 14.6V DC/unit Average at 25℃ | |||
| Designed floating life(20℃) | 12 years | |||
| Self Discharge | Gel batteries can be stored for more than 6 months at 25℃ Self-discharge ratio less than 3% per month at | |||
