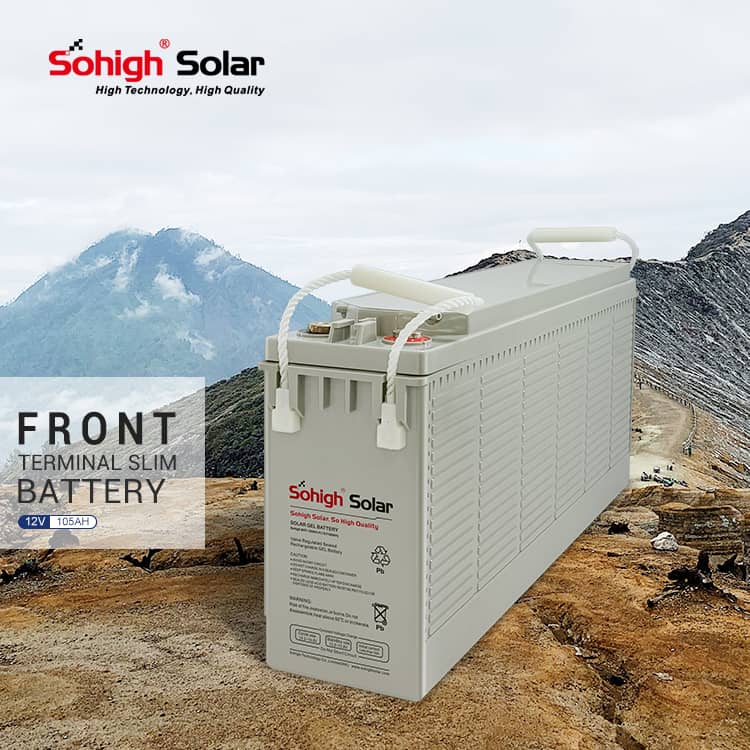

Solar Gel Battery 12V 105AH

Model: Sohigh BAT-105AH-F
Brand: Sohigh Solar
Voltage(V): 12V
Product Origin: Guangzhou,China
Capacity: 105AH

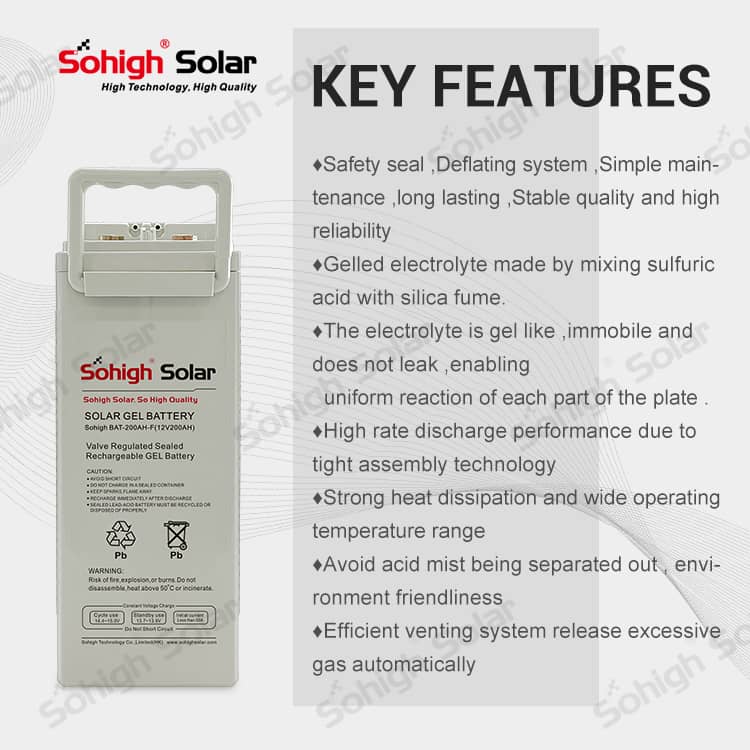

Features for front terminal access telecom slim gel battery

This stationary battery comes with a superior gel electrolyte where sulfuric acid is evenly mixed with silica fume and acid layering does not exist.

The electrolyte is gel like and immobile, which enables no leakage and uniform reaction of battery plates.

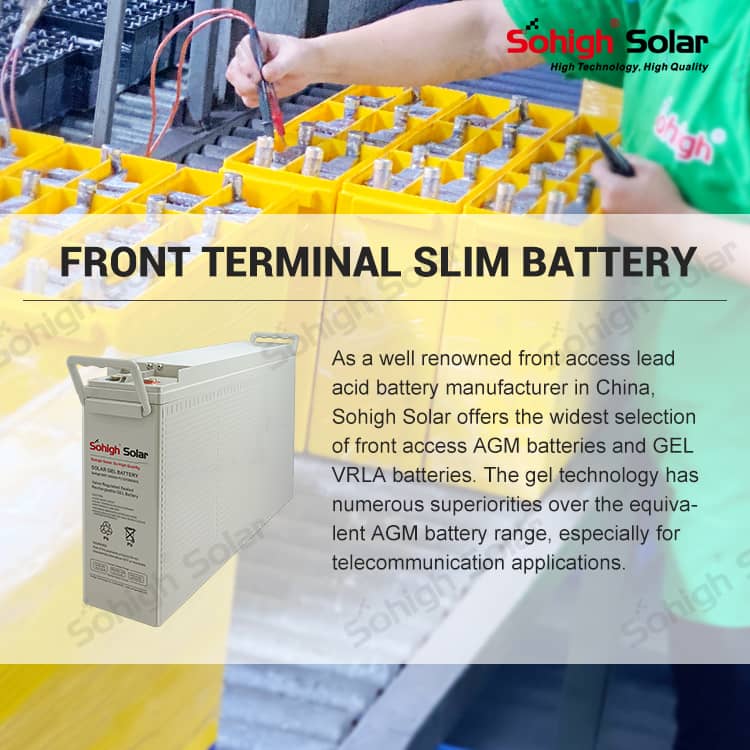

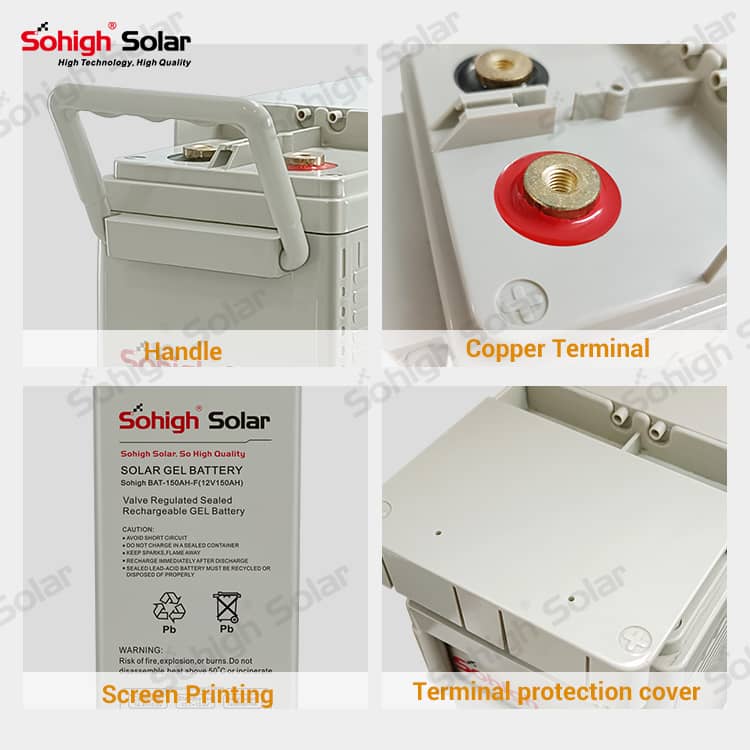

Serving as perfect power supply equipment, the front access lead acid battery is designed with slim shape. Front access terminal connection is convenient for installation and maintenance, and space serving.

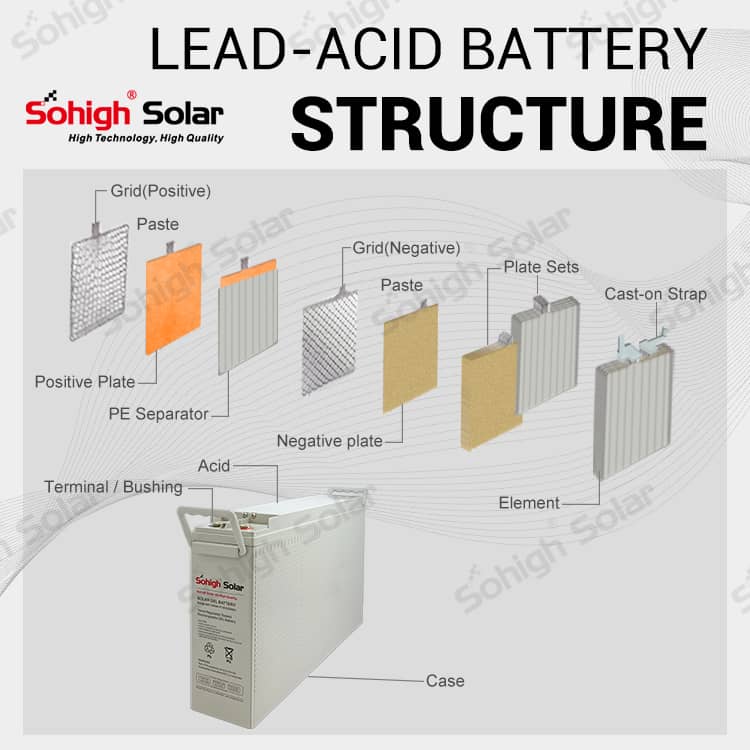

Radial type grid design and tight assembly technology enable prominent high rate discharge performance for our GEL VRLA battery.

Due to a unique design, the electrolyte volume of this battery can not reduce in use, and it requires no watering during service life.

Special anti-corrosion grid alloy is utilized so that the energy storage device comes with more than 12years of design life at 25 degree.

High purity raw materials ensure super low battery self discharge.

Thanks to the use of gas recombination technology, our industrial battery boasts extremely high seal reaction efficiency and yields no acid mist, thus friendly and pollution-free to the environment.

By means of special design and high reliable sealing technology, the battery is well sealed, thus ensuring definite safety.

ModuleSohigh BAT-105AH-F
Cells Per Unit6
Voltage(V)12V
Terminal TypeT18
Capacity

105Ah@10hr-rate to

1.80V per cell @25℃

Max.Discharge Current1000A(5 sec)
Internal ResistanceApprox. 5.5m Ω
Recommended Maximum Charging



30A

Operating Temperature rangeDischarge:-20℃~60℃,Charge:0℃~50℃ Storage:-20℃~60℃
Normal Operating Temperature Range25℃±5℃
Float charging Voltage13.6 to 13.8V DC/unit Average at 25℃
Equalization and Cycle service14.4 to 14.6V DC/unit Average at 25℃
Designed floating life(20℃)12 years
Self Discharge

Gel batteries can be stored for more than 6 months at 25℃

Self-discharge ratio less than 3% per month at
