Model: Sohigh BAT-200AH-F
Brand: Sohigh Solar
Voltage(V): 12V
Product Origin: Guangzhou,China
Capacity: 200AH

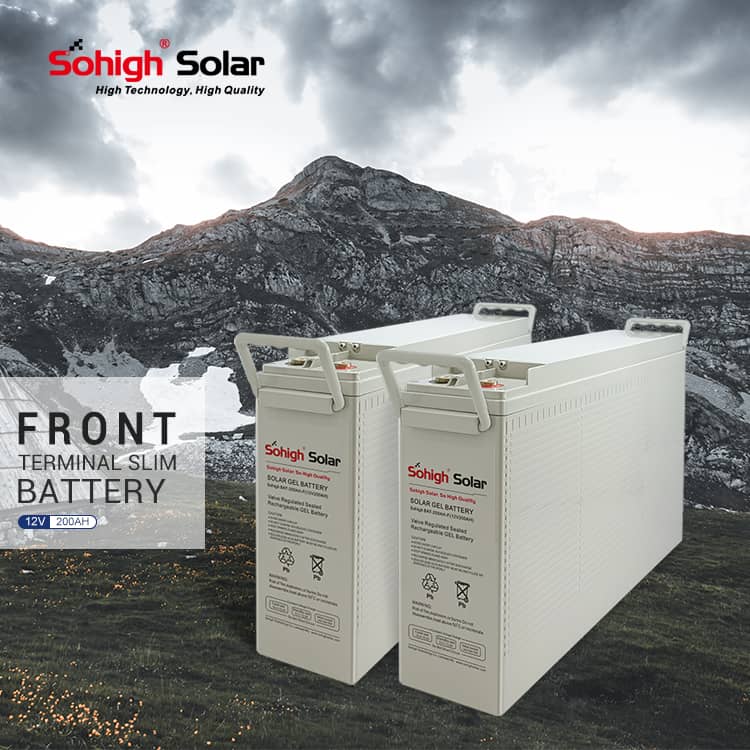

General Features for front terminal access telecom slim gel battery
Long service life VRLA battery
Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
Absorbent Glass Mat (AGM) technology for superior performance
Special grid alloy and the use of high purity lead account for superior shelf-life characteristics, permitting storage for extended periods of time
Thick plate design and efficient gas recombination that yield a design life expectancy of up to 12 years
Easy to use front terminal connectors and Integrated carrying handles
Proven valve regulated technology that guarantees safe operation without maintenance
| Module | Sohigh BAT-200AH-F | |||
| Cells Per Unit | 6 | |||
| Voltage(V) | 12V | |||
| Terminal Type | T18 | |||
| Capacity | 200Ah@10hr-rate to 1.80V per cell @25℃ | |||
| Max.Discharge Current | 2000A(5 sec) | |||
| Internal Resistance | Approx. 3.8m Ω | |||
| Recommended Maximum Charging |
60A | |||
| Operating Temperature range | Discharge:-20℃~60℃，Charge:0℃~50℃ Storage:-20℃~60℃ | |||
| Normal Operating Temperature Range | 25℃±5℃ | |||
| Float charging Voltage | 13.6 to 13.8V DC/unit Average at 25℃ | |||
| Equalization and Cycle service | 14.4 to 14.6V DC/unit Average at 25℃ | |||
| Designed floating life(20℃) | 12 years | |||
| Self Discharge | Gel batteries can be stored for more than 6 months at 25℃ Self-discharge ratio less than 3% per month at | |||
