Model: Sohigh BAT-3000AH-OPZV
Brand: Sohigh Solar
Voltage(V): 2V
Product Origin: Guangzhou,China
Capacity: 3000AH

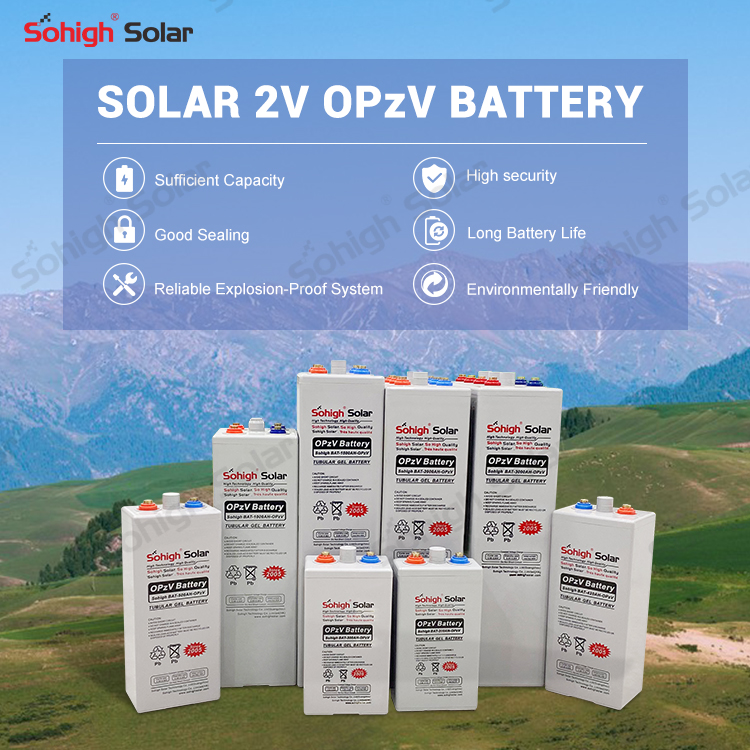

OPzV Series (Pure Gel Deep Cycle Battery)
OPzV battery offers the highest cycle life among all other lead-acid batteries, with significant savings on the cost per cycle. They are maintenance-free and have robust construction, providing the highest level of reliability and performance. OPzV battery has superior deep discharge durability and excellent recharging properties. They are the best choice of batteries for industrial projects, even in remote installations with minimal supervision. In some regions of the world, where electricity is unstable, high capacity backup power is required. Whether you’re generating backup power from solar panels or wind turbines, frequent power outages require high performing batteries with excellent deep cycling capabilities.
OPzV batteries offer high capacity reserve power and true deep cycling performance. With a design life of 20 years and a maintenance-free operation, OPzV battery batteriesfect for regions with an unstable supply of electricity. OPzV batteries are also completely spill-proof, which makes them safe to install anywhere, even in remote environments with minimal supervision. battery OPzV are also available in a front terminal design upon request.
| Rated Voltage | 2V | |||
| Nominal Capacity | 3000AH | |||
| Terminal | M8 | |||
| Container Material | ABS | |||
| Rated Capacity (25°C) |
3900.0 Ah (100hr,39.0A,1.80V/cell) 3000.0 Ah (10hr,300.0A,1.80V/cell) 2616.5Ah (5hr,523.3A,1.75V/cell) 2322.6 Ah (3hr,774.2A,1.75V/cell) 1673.8 Ah (1hr,1673.8A,1.67V/cell)
| |||
| Max. Discharge Current(5s) | 24000A | |||
| Internal Resistance(25″C) | Approx.0.23m Ω | |||
| Charging Operating Temp.Range |
Discharge -20°C~55°C (-4°F~131°F) Charge 0°C~40°C (32°F~104°F) Storage – 20°C-50°C (-4°F~122°F) | |||
| Nominal Operating Temp. Range | 25+3°C (77+5°F) | |||
| Max. Charging Current(25°C) | 750.0A | |||
| Charge voltage(25°C) |
Float 2.25V Temp. Coefficient -3mV/cell/°C Cycle(Equalization) 2.35~2.40V | |||
| Effect of temp. to Capacity |
40°C (104°F) 106% 25°C (77°F) 100% 0°C (32°F) 86% | |||
| Self Discharge | ≤ 3% per month at 25°C | |||
