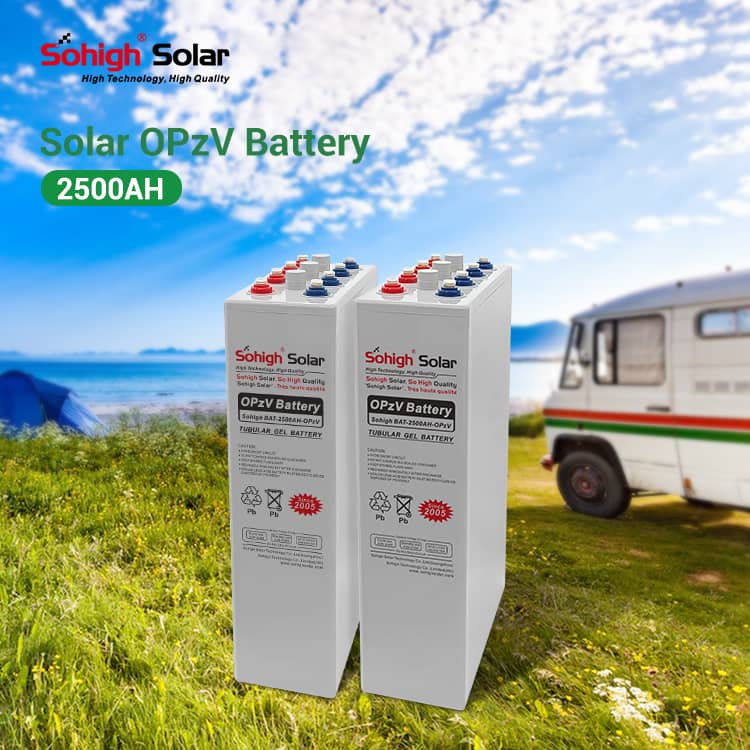

Model: Sohigh BAT-2500AH-OPZV
Brand: Sohigh Solar
Voltage(V): 2V
Product Origin: Guangzhou,China
Capacity: 2500AH
Description of the OPzV Battery
The Sohigh Solar OPzV batteries are suitable for a broad range of applications including telecommunications, power generating stations and distribution systems, railway, airport and seaport signalling, computing, emergency lighting, automation and measuring systems.
The Sohigh Solar OPzV range of valve regulated lead-acid batteries uses a proven combination of gel and tubular technologies to offer a very high level of reliability. These single cells benefit from an optimised plate design that gives capacities in excess of the DIN standard values. In addition, the Sohigh Solar OPzV range of batteries offers both an excellent float life and a high cycle life for a truly flexible solution.
The tubular batteries OPzV Gel series are characterized by a long-term maintenance-free, excellent reliable performance even under difficult conditions (high operating temperature or unstable mains) and durability using cyclic, thus offering a cost and excellent efficiency.
Optimal Design, according to international standards DIN, exclusive use of high quality raw materials, rugged construction and advanced production processes OPzV make this range ideal for demanding stationary applications.
| Rated Voltage | 2V | |||
| Nominal Capacity | 2500AH | |||
| Terminal | M8 | |||
| Container Material | ABS | |||
| Rated Capacity (25°C) |
3250.0 Ah (100hr,32.5A,1.80V/cell) 2500.0 Ah (10hr,250.0A,1.80V/cell) 2180.5 Ah (5hr,436.1A,1.75V/cell) 1935.6 Ah (3hr,645.2A,1.75V/cell) 1394.8 Ah (1hr,1394.8A,1.67V/cell)
| |||
| Max. Discharge Current(5s) | 20000A | |||
| Internal Resistance(25″C) | Approx.0.25m Ω | |||
| Charging Operating Temp.Range |
Discharge -20°C~55°C (-4°F~131°F) Charge 0°C~40°C (32°F~104°F) Storage – 20°C-50°C (-4°F~122°F) | |||
| Nominal Operating Temp. Range | 25+3°C (77+5°F) | |||
| Max. Charging Current(25°C) | 625.0A | |||
| Charge voltage(25°C) |
Float 2.25V Temp. Coefficient -3mV/cell/°C Cycle(Equalization) 2.35~2.40V | |||
| Effect of temp. to Capacity |
40°C (104°F) 106% 25°C (77°F) 100% 0°C (32°F) 86% | |||
| Self Discharge | ≤ 3% per month at 25°C | |||
