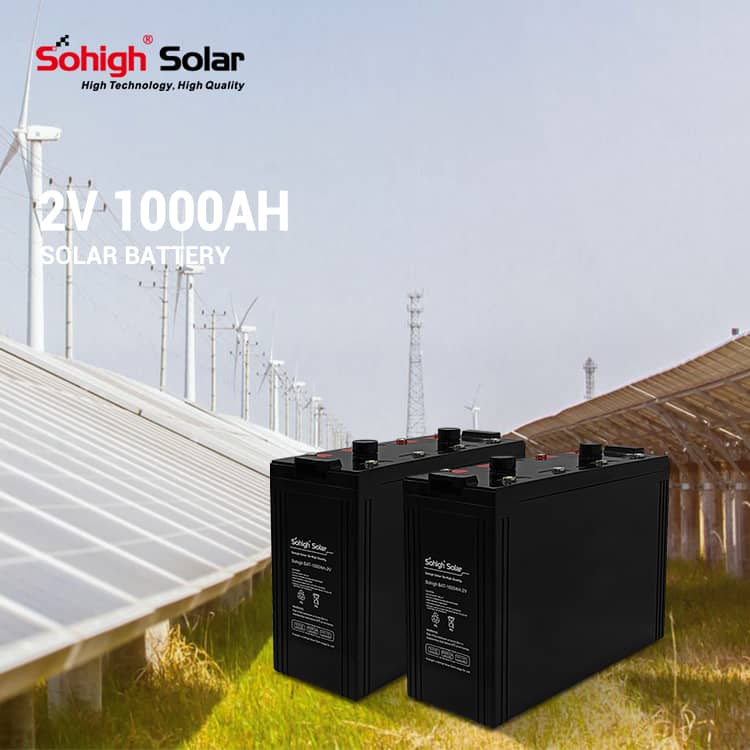

2V 1000Ah Solar Battery

Model: Sohigh BAT-1000AH-2V
Brand: Sohigh Solar
Voltage(V): 2V
Product Origin: Guangzhou,China
Capacity: 1000AH

Summary For Industry 2V AGM Deep Cycle Battery

Sohigh Solar series of 2V VRLA AGM batteries upto 2V1000Ah are recognized as the most reliable and high quality battery system in the industry. They are designed with advanced AGM (Absorbent Glass Mat) technology, Long service life designed with 10-15 years, the batteries comply to the most popular international standards

-Stable Quality & High Reliability For Industry Battery

Sohigh Solar battery is well known for its stable and reliable performance. Sealed AGM batteries are all free maintenance; thus permitting a safe and proper operation of the equipments. The battery can withstand overcharge, over discharge, vibration, and shock. It is also capable of extended storage.

– Sealed Construction For AGM Battery

Sohigh Solar’s unique construction and sealing technique guarantees that no electrolyte leakage can occur from the terminals or case of any Sohigh Solar battery. This feature ensures safe and efficient operation of Sohigh Solar batteries in any position. Sohigh Solar batteries are classified as “Non-Spillable” and will meet all requirements of the International Sea and Air Transportation Association.

– Maintenance-Free Operation For VRLA battery

During the expected float service life of Sohigh Solar batteries, there is no need to check the specific gravity of the electrolyte, or add water. In fact, there is no provision for these maintenance functions.

– Low Pressure Venting System For Long Life Battery

Sohigh Solar batteries are equipped with a safe low pressure venting system, which operates from 1 psi to 6 psi. The venting system is designed to release excess gas in the event that the gas pressure rises to a level above the normal rate. Afterwards,the venting system automatically re-seals itself when the gas pressure level returns its normal rate.This feature prevents excessive build up of gas in the batteries. This low pressure venting system, coupled with the extraordinarily high recombination efficiency, ensure Sohigh Solar batteries be the safest VRLA batteries available.

– Heavy Duty Grids For Sealed AGM Battery

The heavy duty lead calcium alloy grids in Sohigh Solar batteries provide an extra margin of performance and service life in both float and cyclic applications, even in conditions of deep discharge.

Low Self Discharge For Lead Acid Battery

Because of the use of Lead Calcium grids alloy, Sohigh Solar VRLA battery can be stored for long periods of time without recharge.

– Application For Industry Battery 2V

Industry use, Communication equipment, Telecommunication control equipment; Emergency lighting systems; Electric power systems; Power station; Nuclear power station; Solar powered and wind powered systems; Load leveling and storage equipment; Marine equipment; Power generation plants; Alarm systems; Uninterruptible power supplies and stand-by power for computers; Medical equipment; Fire and security systems; Control equipment; Stand-by electric power.

Rated Voltage2V
Nominal Capacity1000AH
Capacity(25℃)

10HR(1.8V)        800Ah

3HR(1.80V)        750Ah

1HR(1.75V)        550Ah

Terminal typeT20
Internal resistance (Fully charged,25℃)



Approx.0.30mΩ





Capacity affected by temperature (10HR)



40℃                    102%

25℃                    100%

0℃                      85%

-15℃                   65%

Self-discharge (25℃)

3 months             Remaining Capacity: 91%

6 months             Remaining Capacity: 82%

12 months           Remaining Capacity: 65%



Operating temperature range



Discharge             -15℃ ~ 50℃ (5℉ ~ 122℉)

Charge                  -10℃ ~ 50℃ (14℉ ~ 122℉)

Storage                  -20℃ ~ 50℃ (-4℉ ~ 122℉)

Nominal Operating Temp. Range25℃ ± 3℃ (77℉ ± 5℉)
Float charging voltage(25℃)



2.25 to 2.30V

Temperature compensation:-3mV/℃

Cyclic charging voltage( 25℃)



2.40 to 2.50V

Temperature compensation:-5mV/℃



Maximum discharge current5500A(5 sec.)
Designed floating life( 20℃ )18 years
Maximum charging current200A
