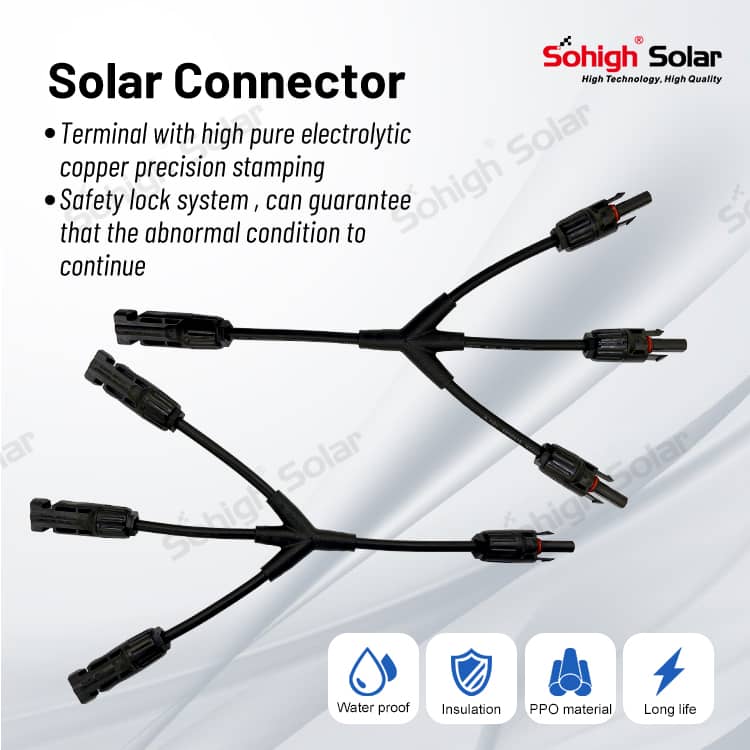

Description of the Solar Connector
Specifications: Rated current: 40A; Rated voltage: 1000V; DC Test Voltage 6000V (50Hz, 1min); Contact resistance: four-point probe method (<1mQ); Conductor Material: Pure Copper Core; Coating: PPO; Standard for Safety: UL94-VO; Safe class: Class II; Waterproof class: IP67; Work temperature grade: -40° C ~ +110° C; Insertion force ≤50N; Extraction force ≥50N

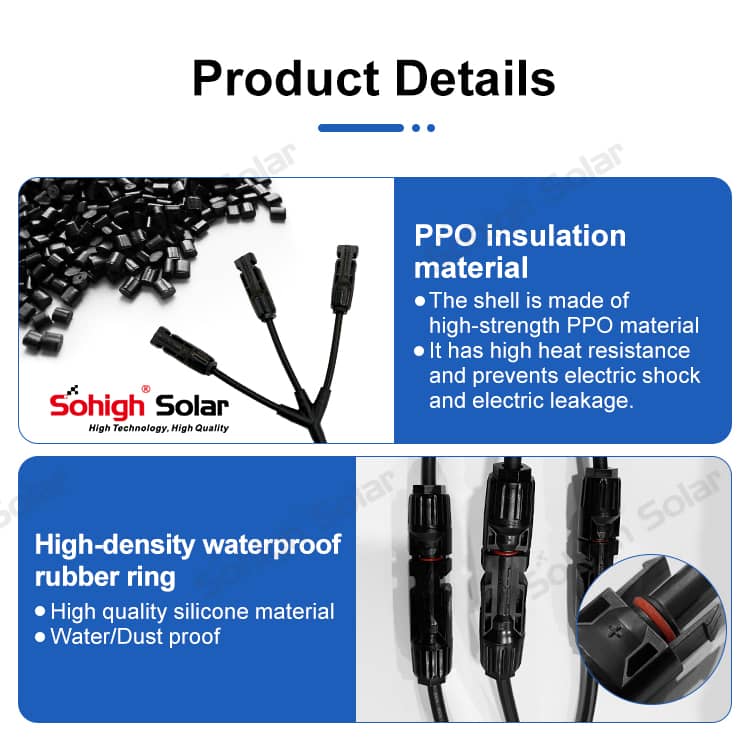

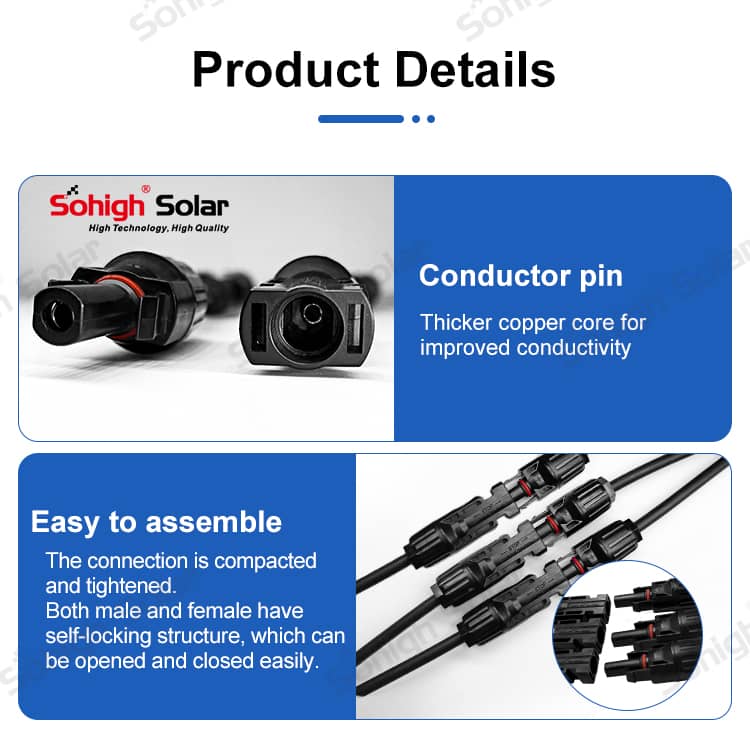

High Quality: The cable is made of a high quality special PPO (polyphenylene oxide) material which is a crystalline thermoplastic resists heat deformation and does not melt. The Core is made of pure copper with a tin outer layer for the best possible electrical current conduction. With its simple MC-4 connectors Plug and Play system, these cables are ideal for connecting your solar panels.

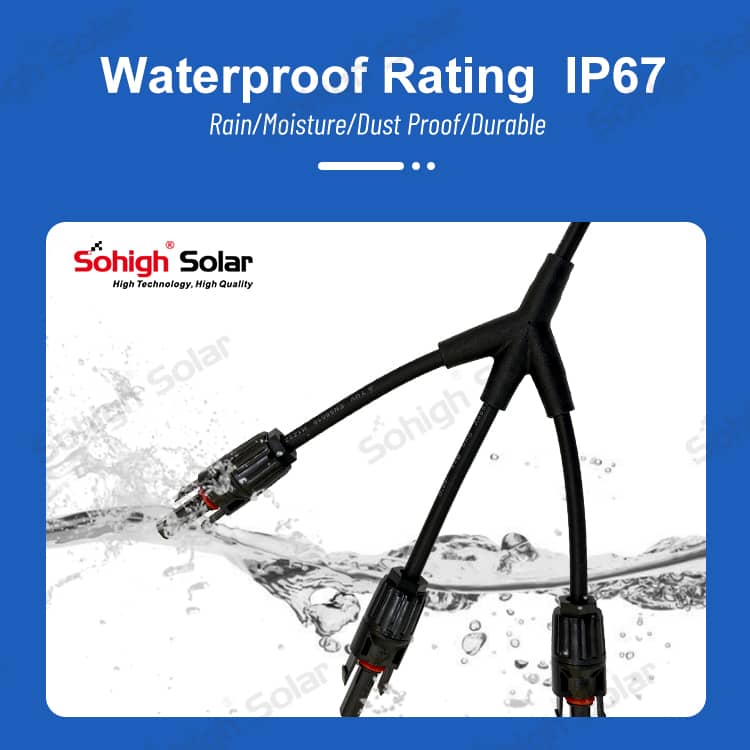

Easy to use: A simple plug-and-play system that ensures that the cables are completely waterproof thanks to the high-end closure design featuring a special rubber ring that does not allow water to pass through the connectors. No messing with cables while installing your solar panels, thanks to the simple plug-and-play system, these cables provide a safe way to place your solar panels, even on top of the roof of your house.

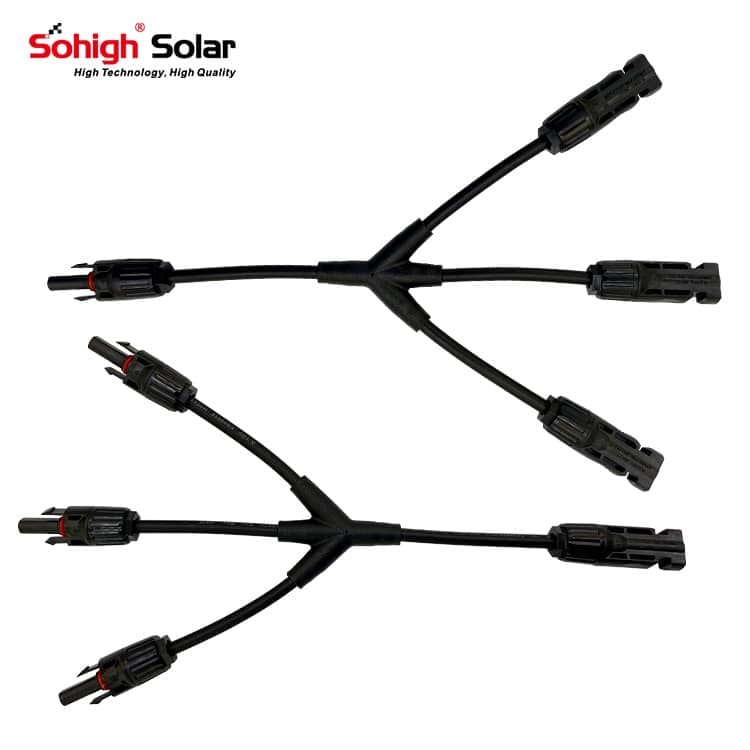

| Product Name | Solar Connector Y Branch 3 To 1 | |||
| Product Type | Connectors | |||
| Rated Voltage | 1500 V | |||
| Cable Size | 2.5mm², 4mm², 6mm² | |||
| Connector | Female and male connector | |||
| Packaging | Polybag or oem packing | |||
| Terminal material | Copper,Silver plated | |||
| Protection Degree | IP67 | |||
| Pollution Degree | -40℃~+85℃ | |||
