Model: MC4-Y5 (4-1)
Brand: Sohigh Solar
Product Origin: Guangzhou,China

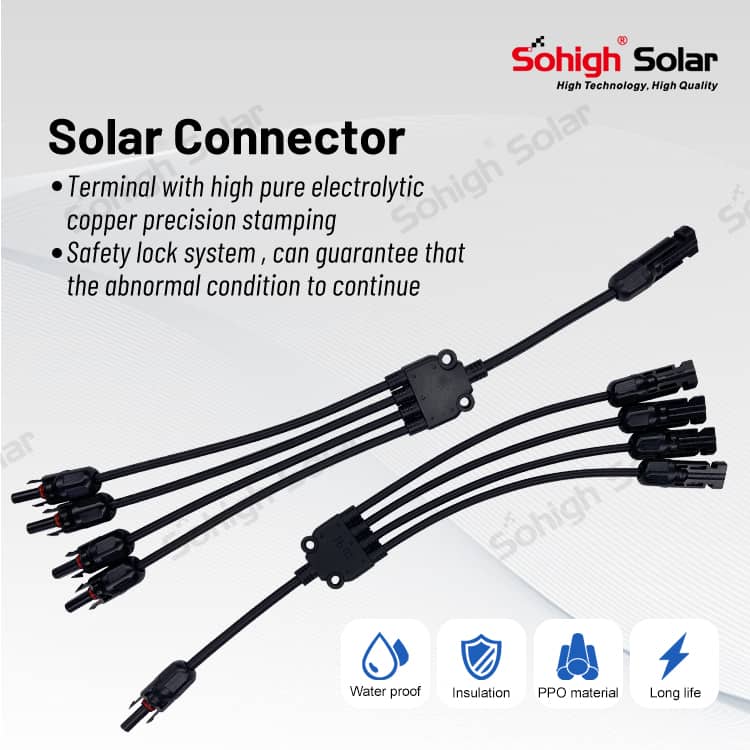

Description of the Solar Connector

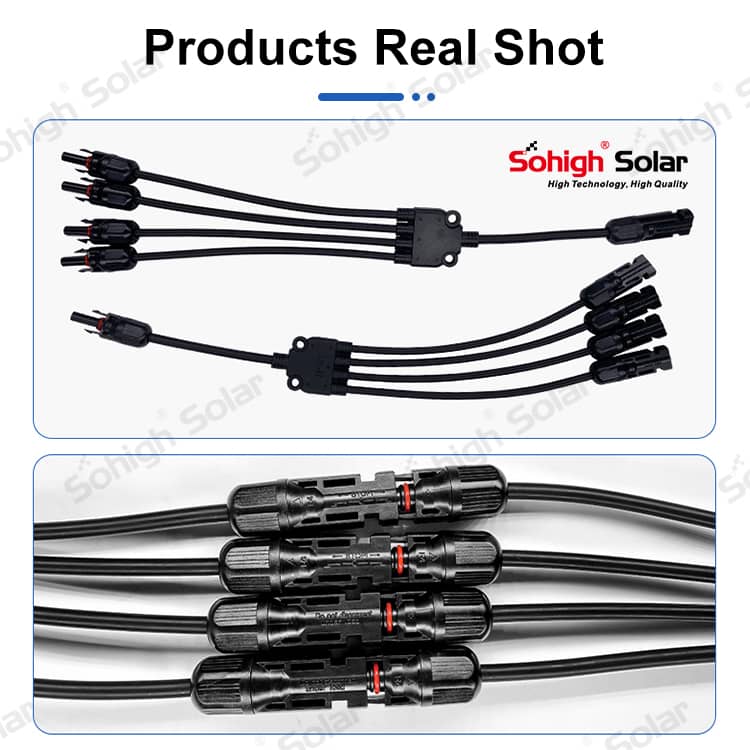

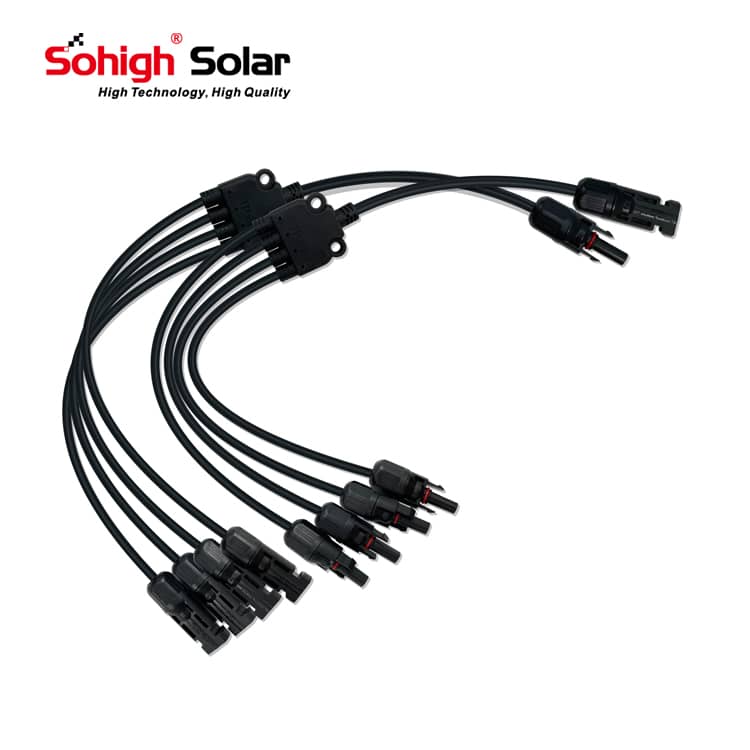

-1 Pair of Y Branch parallel Connectors 1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM)

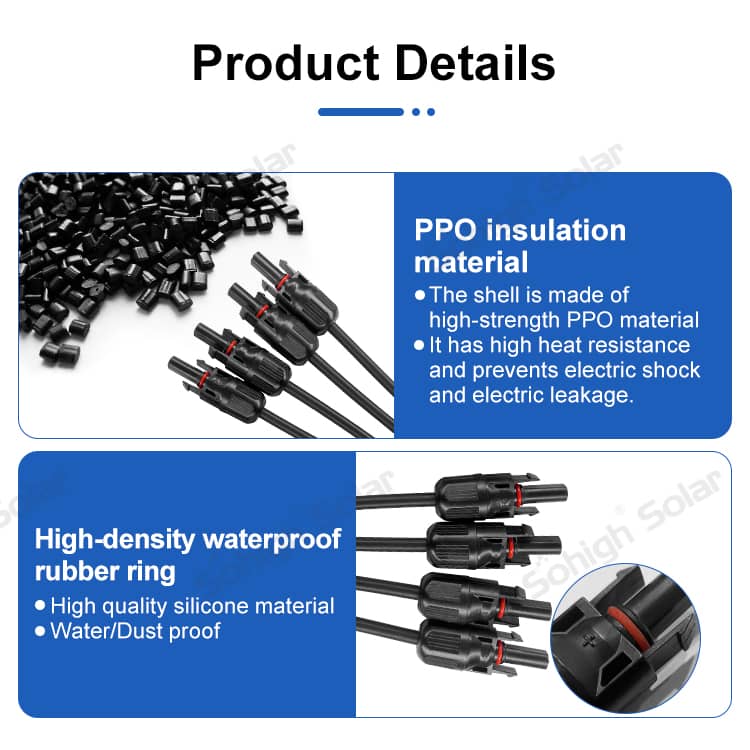

-Double seal rings for better waterproof and dustproof effect, it can be used in harsh environment, will survived rain, high force winds and snow.
-With excellent aging resistance and UV endurance, guide insulator are installed on the contact head of the product, preventing electric shock. They are safe and reliable for connecting

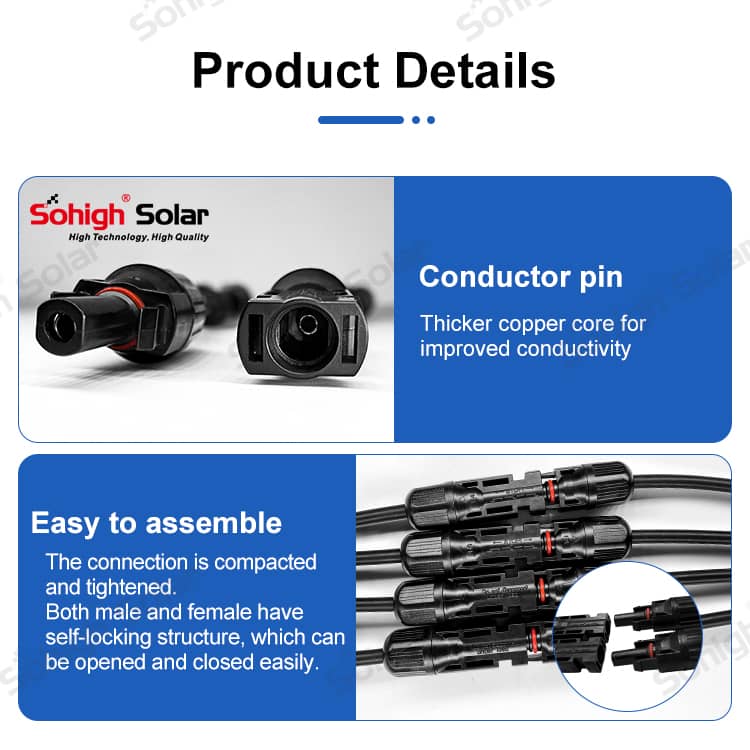

-Designed with stable self-locking structure. The connector is connected by riveting. Male and -Female head with an automatic lock, insuring easy docking.
-Easy to install, quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.
| Product Name | Solar Connector Y Branch 4 To 1 | |||
| Product Type | Connectors | |||
| Rated Voltage | 1000 V | |||
| Rated current (A) | 20A (4mm²)30A (6mm²) | |||
| Connector | Female and male connector | |||
| Packaging | Polybag or oem packing | |||
| Terminal material | Copper,Silver plated | |||

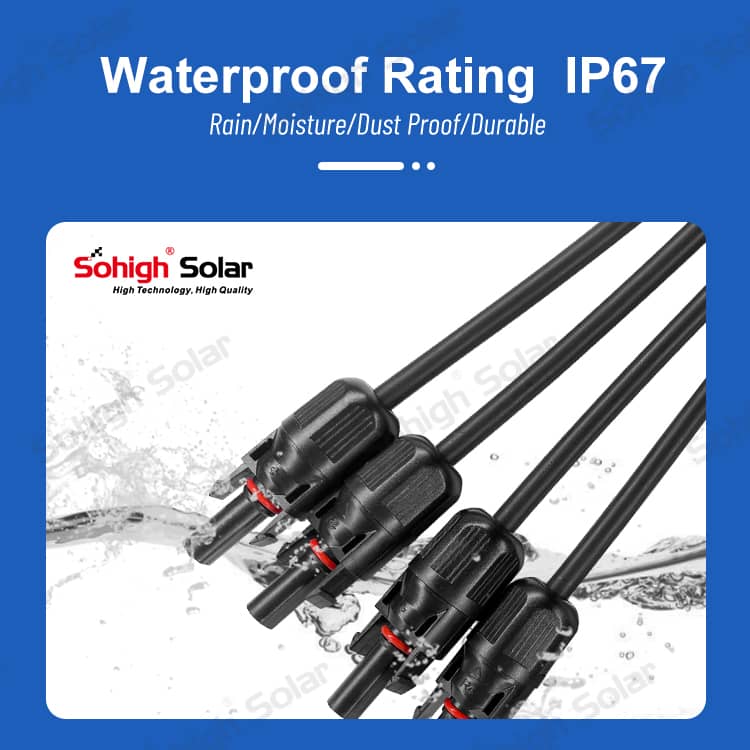

| Protection Degree | IP67 | |||
| Cable specification | φ5mm-φ7mm | |||
| Terminal specification | φ4.0mm | |||
| Withdrawal force | >50N | |||
| Insertion force | <50N | |||
| Pollution Degree | -40℃~+85℃ | |||
