Model: MC4-Y3 (2-1)
Brand: Sohigh Solar
Product Origin: Guangzhou,China
Description of the Solar Connector

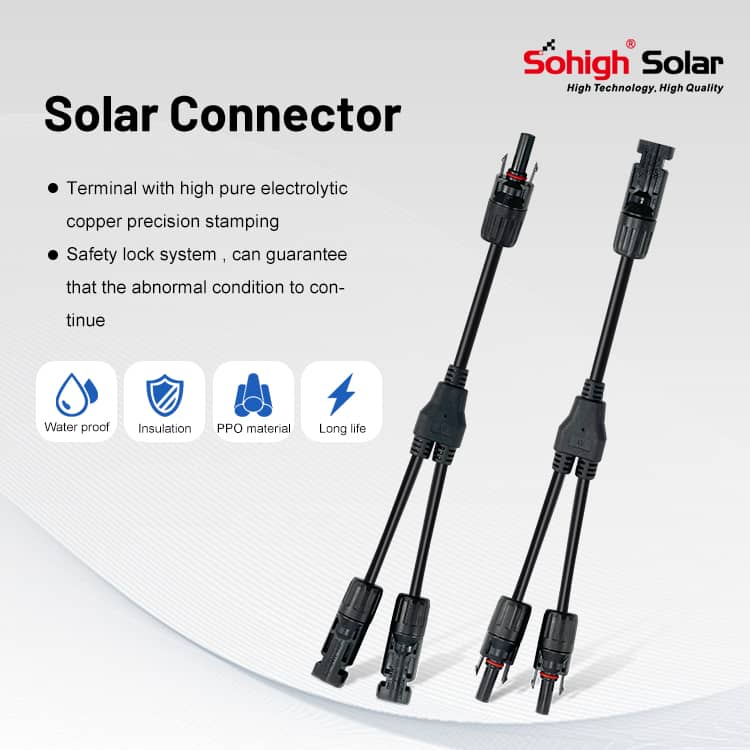

The Solar connector is a single contact electrical connector. They are often used to connect solar panels. MC4 is an acronym for “Multi-Contact, 4mm”. It is the standard in the renewable energy industry. The connectors make it easy to build photovoltaic panel arrays. In today’s solar market, Solar connectors and their compatible products are fully utilized. In most cases, large solar panels are already equipped with MC4 connectors. A solar panel is a plastic base circular housing with a single conductor in a male/female pair. With a notched interlock, the MC4 connectors can be terminated to each other to avoid accidental pulling apart.

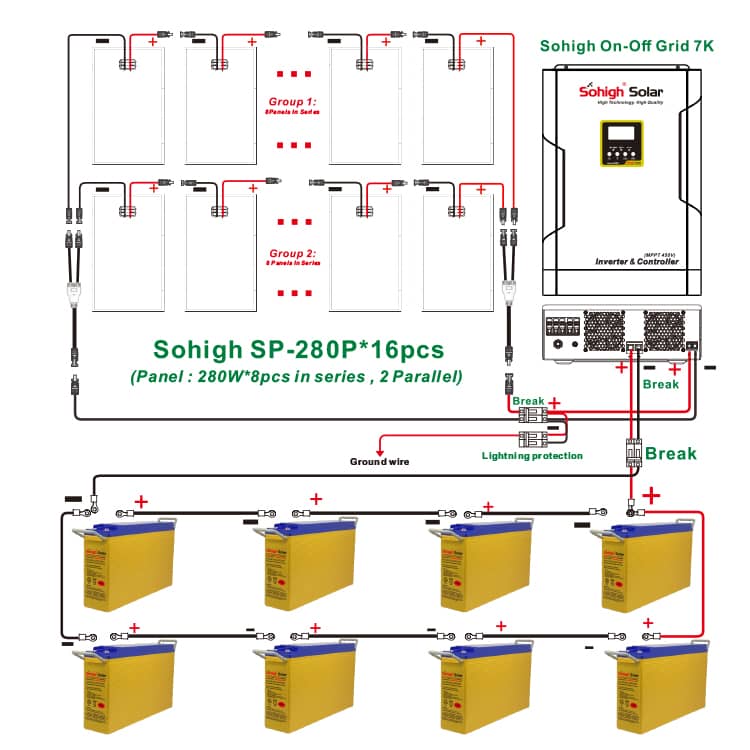

DC connector MD-MC4 series are applicable for use in connection with photovoltaic devices like DC combiner boxes, Inverters, String Combiner Boxes, etc.Double electric shock free protection for load closure and disconnection can meet quick connection and anti vibration function.

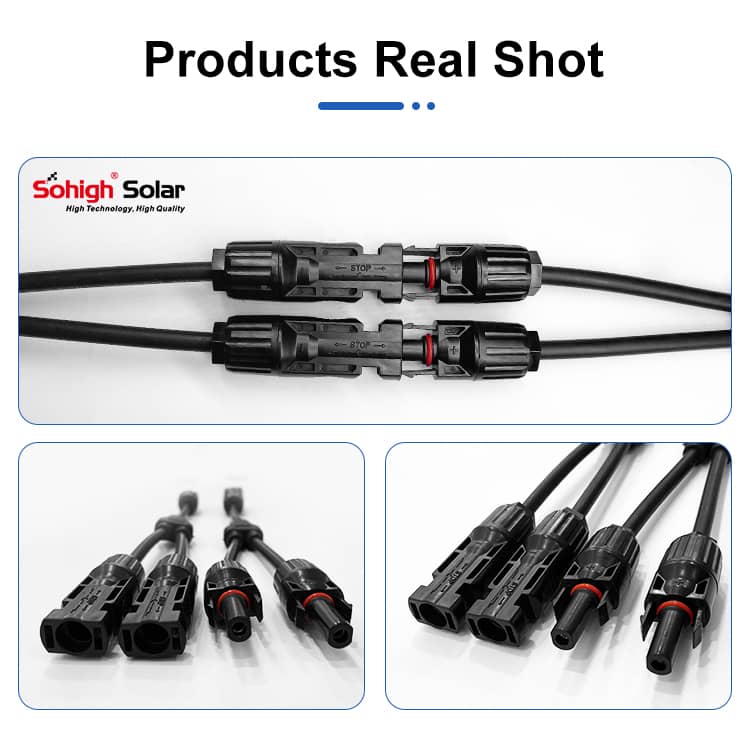

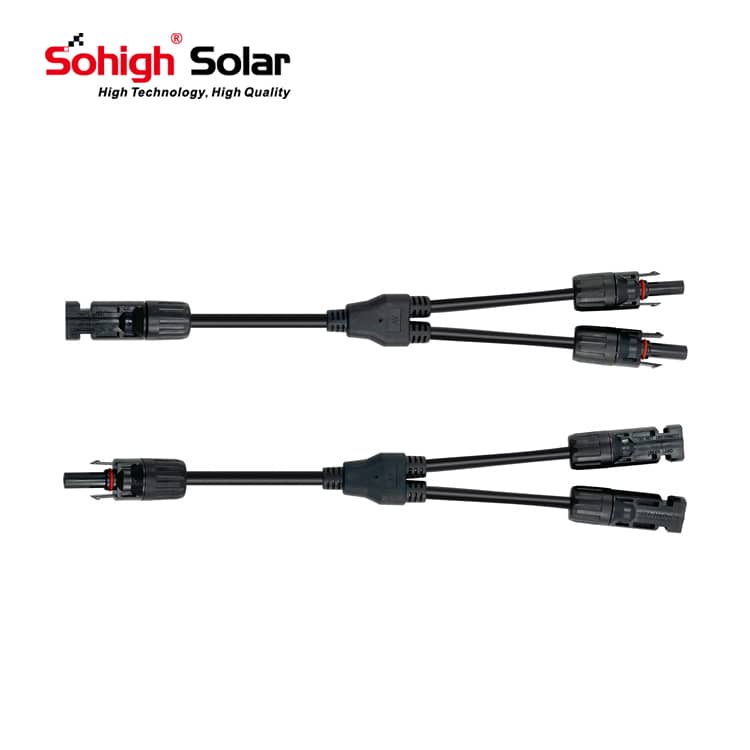

1 Pair of Y Type MC4 Solar Panel Cable Connectors: one female to double male and one male to double female.
Feature of the solar connector branch 2 to 1:
1. Strong adaptability
Compatible with PV cables with different insulation diameters.
Can be applied to environment of -40 to 90 degrees.
2. High Security

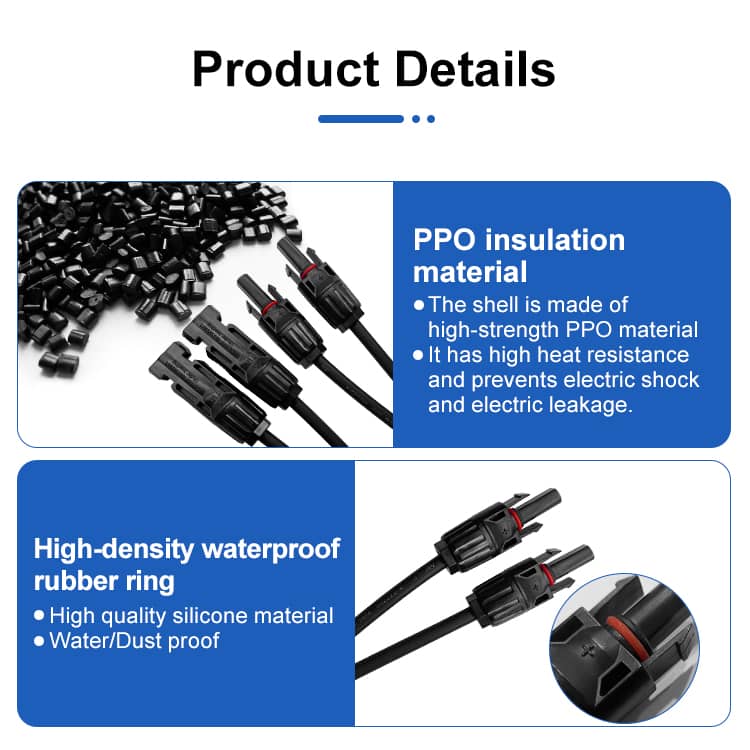

PPO insulation flame retardant material with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain, snowstorm or heat for a long time.
Rated current 30A. Max voltage 1000V.
3. Multiple functions

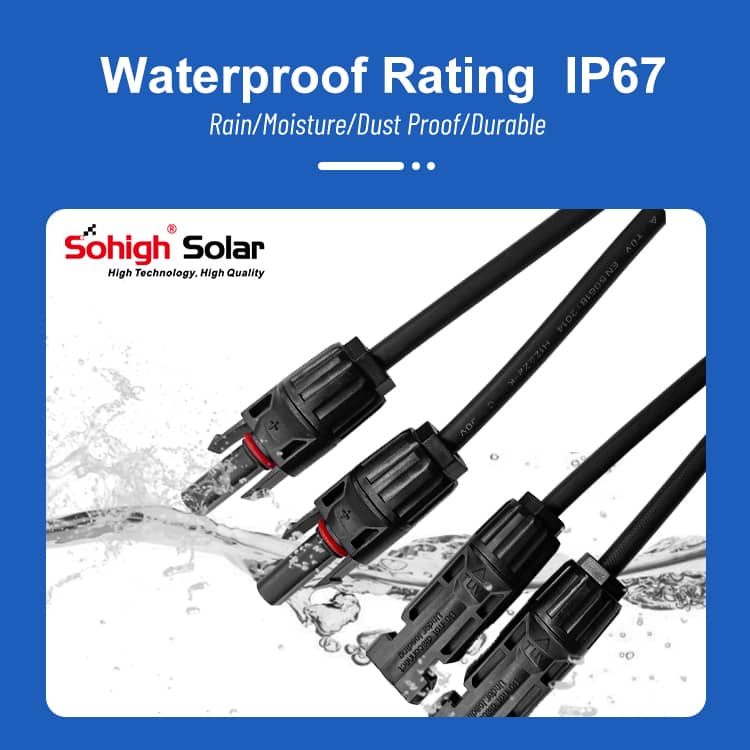

Rainproof, moisture-proof,dust proof and durable. Waterproof grade IP67, double seal rings for better waterproof effect, high heat resistance,wear resistance,durability, corrosion resistance, thick copper inner core,high quality material selection.
4. Easy Installation

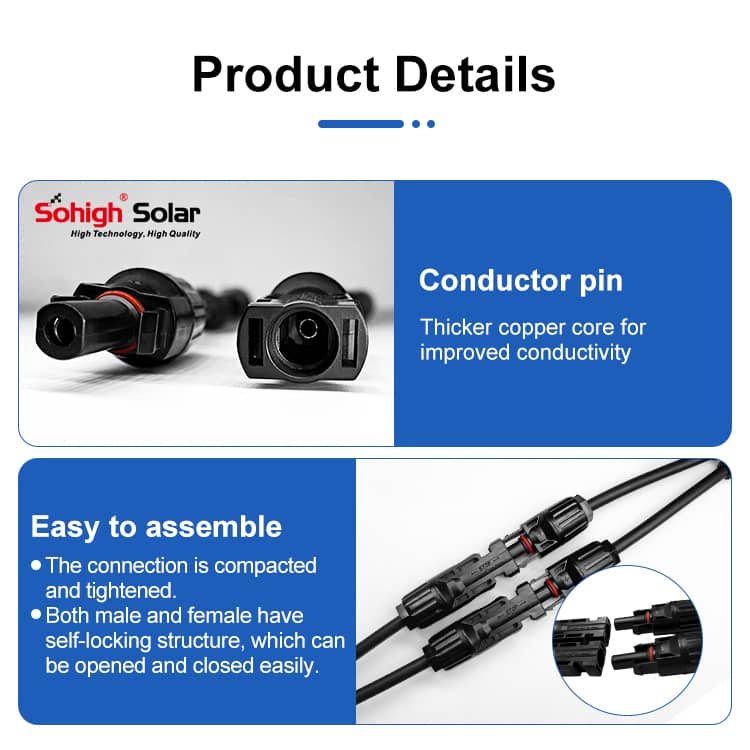

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.
| Product Name | Solar Connector Y Branch 2 To 1 | |||
| Product Type | Connectors | |||
| Rated Voltage | 1000 V | |||
| Rated current (A) | 20A (4mm²) 30A (6mm²) | |||
| Connector | Female and male connector | |||
| Packaging | Polybag or oem packing | |||
| Specification | • Insulation Material: PPO • Rated Current: 20A(4mm²) • Rated Voltage: DC1000V • Contact Resistance: ≤5mΩ • Insulation Resistance: >500mΩ • Operating Temperature range: -40℃ until+90℃ • Degree of Protection: IP67 • Flame Class: UL94-V0 • Safety Degree: Ⅱ • Suitable Single Core Cable Section: 1.5mm²– 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 ) | |||
| Protection Degree | IP67 | |||
| Pollution Degree | -40℃~+85℃ | |||
