Model: MC4-T6 (5-1)
Brand: Sohigh Solar
Product Origin: Guangzhou,China
About Solar Connector T Branch 5 in 1
5 in 1 T Branch Connector for Photovoltaic System
5 to 1 Branch connector is compatible with Multi-Contact connector,suitable to solar cable
2.5MM2,4MM2 and 6MM2 .This connector will make it easy to combine and connect your solar panels in series or parallel.
Quick and reliable connection of your solar cables to the photovoltaic system (solar panels, converters).
Features of the Solar Connector T Branch 5 to 1
Brand New and Waterproof IP67 Dustproof 5 to 1 Branch Solar Connector. 1 Male to 5 Female (M/FF) and 1 Female to 5 Male (F/MM).
Fast and reliable quick and convenient to use, the outer casing is strong anti-aging and ultraviolet resistance.

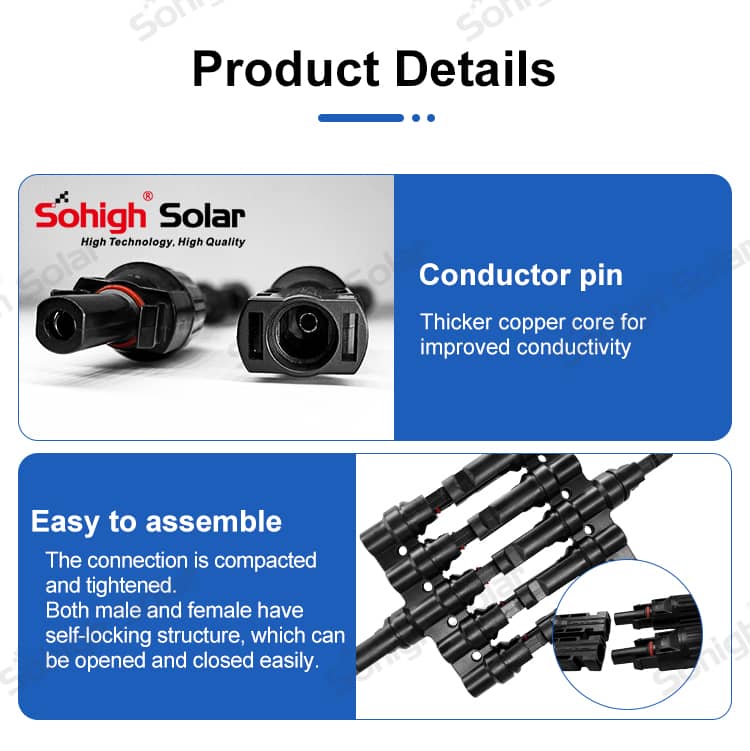

Easy to plug and unplug the connector without any tools,the connection of the cable is connected by riveting and fastening.
Load capability with big current and high voltage, compatible with PV cables with different insulation diameters.

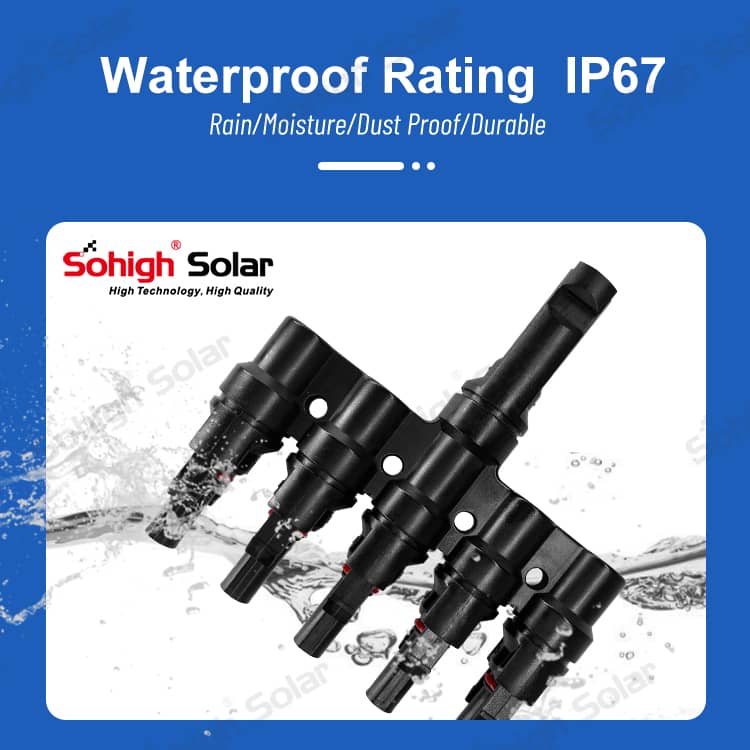

Protection class IP67 Suitable for outdoor harsh environments
| Product Name | Solar Connector T Branch 5 To 1 | |||
| Product Type | Connectors | |||
| Rated Voltage | 1000 V | |||
| Test Voltage | -6kV(TUV50HZ,1 min) | |||
| Protection Class | Class II | |||
| Rated Current | 50A | |||
| Contact Resistance Of Plug Connector | <0.5mΩ | |||
| Protection Degree | IP67 | |||
| Contact Material | Copper, Tin-plated | |||

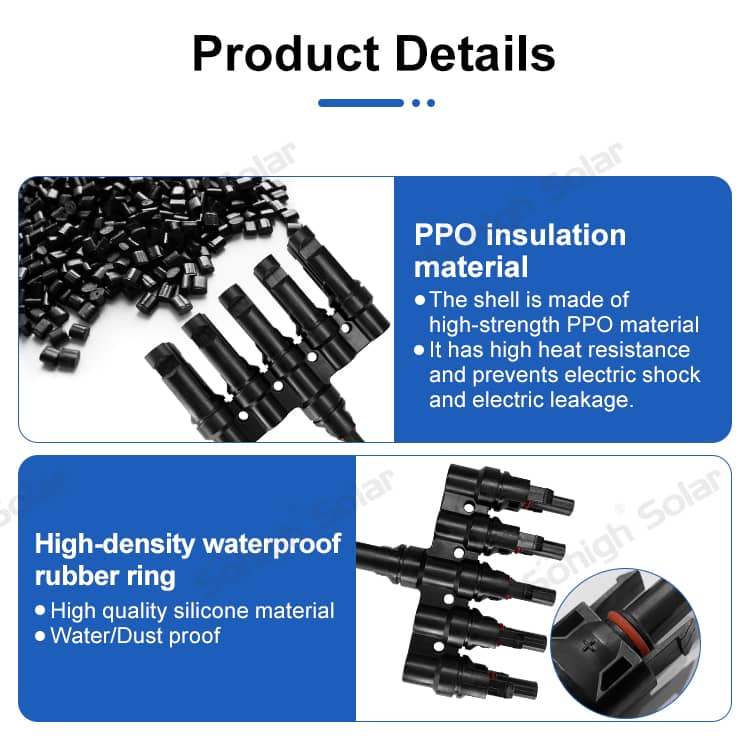

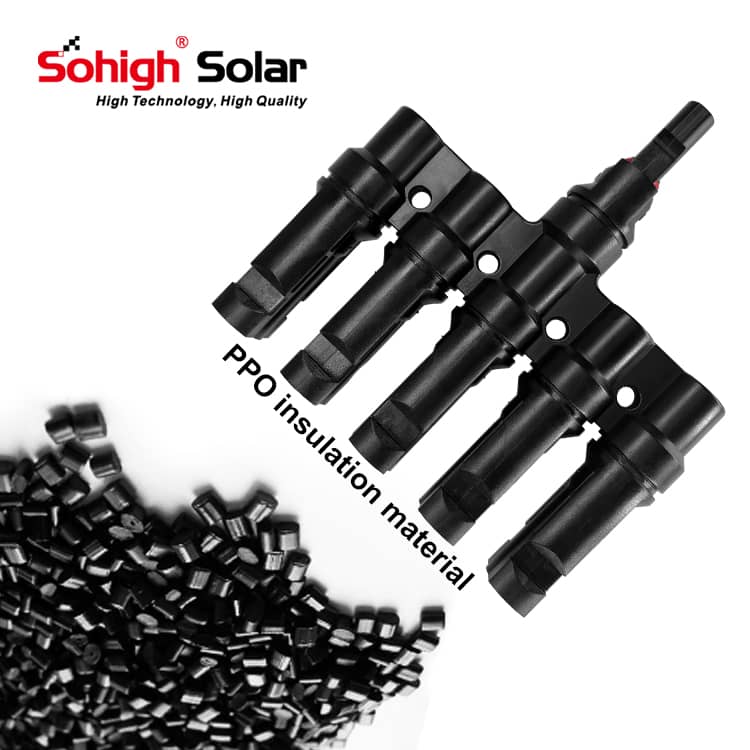

| Insulation Material | PPO | |||
| Degree Of Protection | IP2X/IP67 | |||
| Temperature Range | -40℃ ~ +125℃ | |||
