Model: MC4-T5 (4-1)
Brand: Sohigh Solar
Product Origin: Guangzhou,China
About Solar Connector T Branch 4 in 1
It is 1 pair male and female solar mc4 4 in 1 connector. 4 in 1 mc4 connector is also know as T4 connector and 4 in 1 out connector. These connectors are suitable for connectingany size of 4 solar panels in parallel connection. The metal used in these connectors is made of high quality machined copper and seal tip which can ensure excellent electrical contact. They have double seal rings for better waterproofing and rustproof effect, can be used in harsh environments and will survive high force winds and snow in the rainy season.

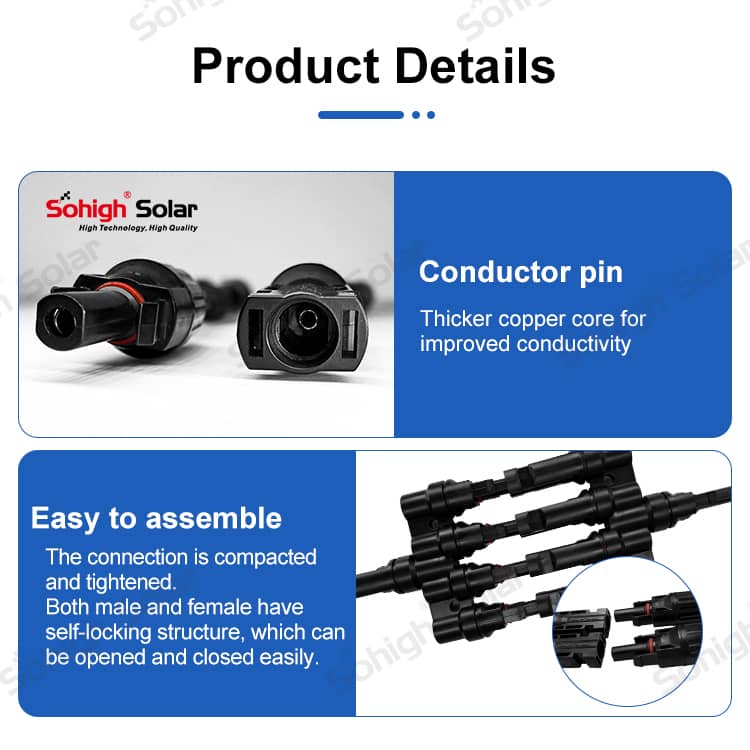

With excellent aging resistance and UV endurance, a guide insulator is installed on the contact head of the product to prevent electric shock. They are safe and reliable to connect. The solar mc4 4 in 1 connector is designed with a stable self-locking structure. They have a male and female head with an automatic lock, which insures easy docking.

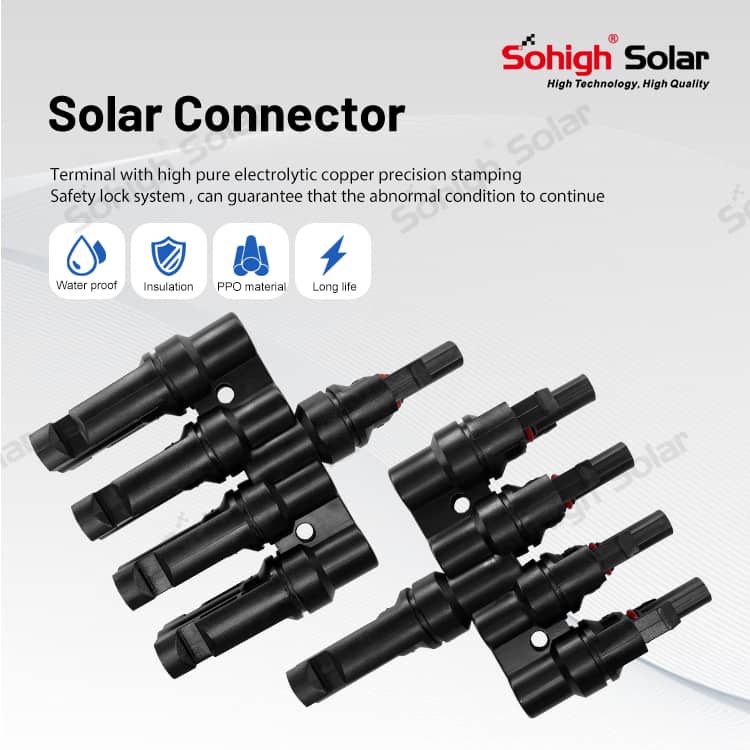

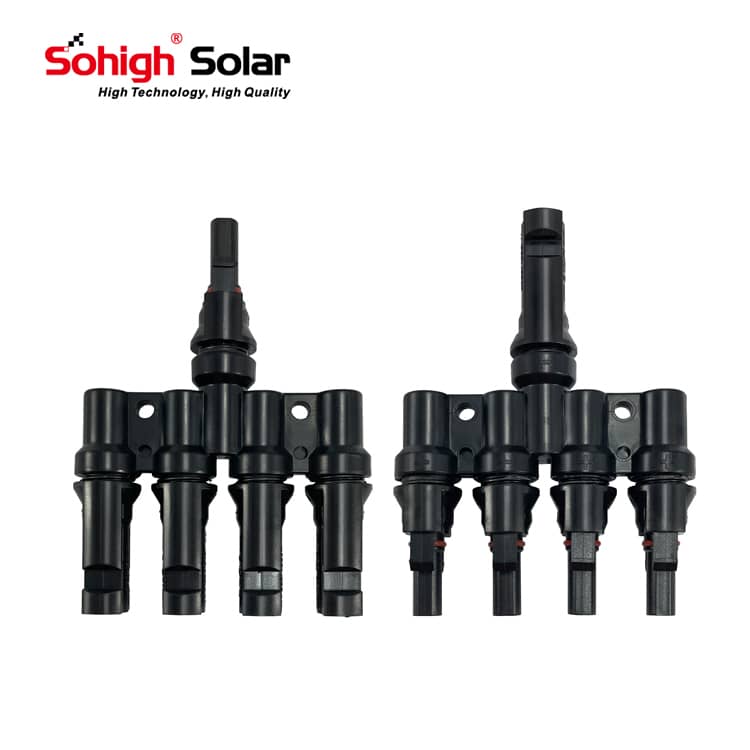

MC4 Solar Panel Cable Connectors connects – One female to four male (F/MMMM) and one male to four female (M/FFFF).
Solar mc4 4 in 1 connector load capacity with large current and high voltage, quick and simple assembly processing, compatible and simple removal of plugs without the aid of any additional means.
| Product Name | Solar Connector T Branch 4 To 1 | |||
| Product Type | Connectors | |||
| Rated Voltage | 1500 V | |||
| Overvoltage Type/Pollution Degree | 6000V(50Hz, 1min) | |||
| Contact Resistance Of Plug Connector | CAT III /2 | |||
| Rated Current | 50A | |||
| Contact Resistance Of Plug Connector | 1mΩ | |||

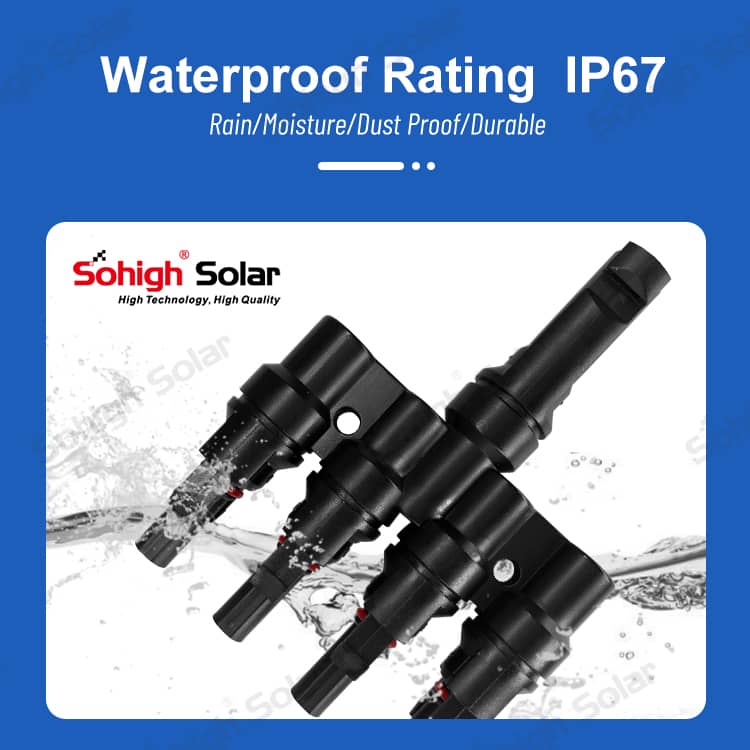

| Protection Degree | IP67 | |||
| Contact Material | Copper, Tin-plated | |||

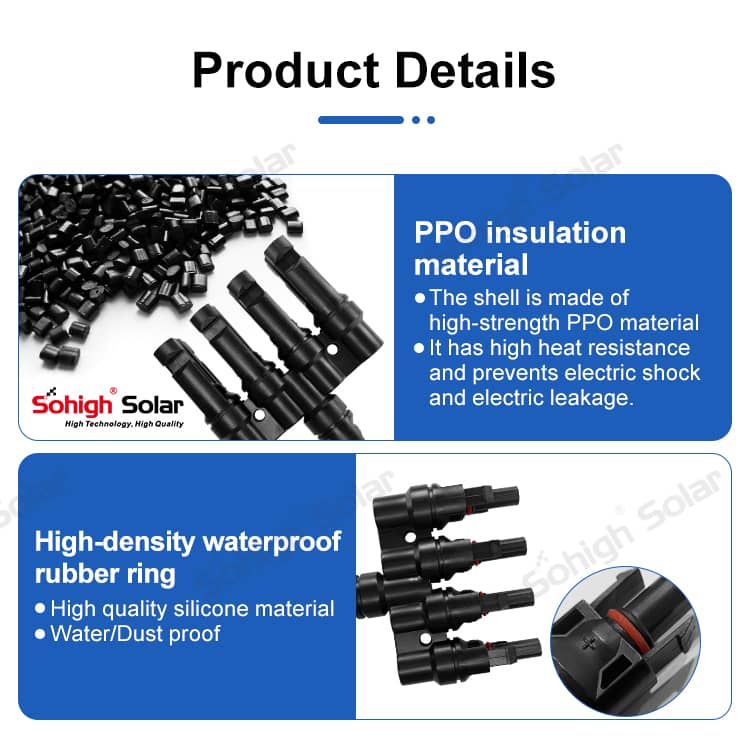

| Insulation Material | PPO | |||
| Degree Of Protection | IP2X/IP67 | |||
| Temperature Range | -40℃ ~ +125℃ | |||
