Power(W): 5500W
Model: Sohigh On-Off Grid 5.5KW
Brand: Sohigh Solar
Voltage(V): 48V
Product Origin: Guangzhou,China
Capacity: 100A

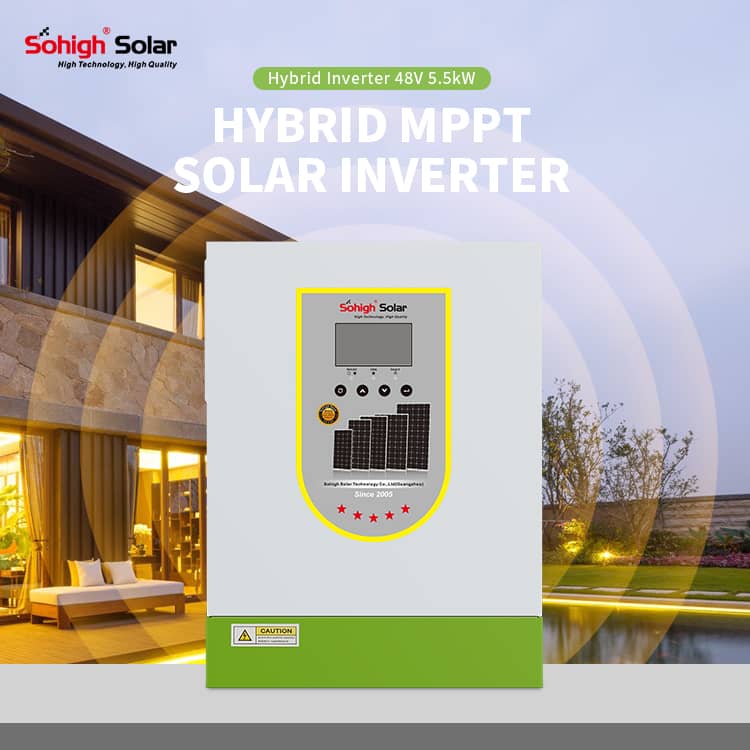

Introduction of 5.5KW Hybrid Inverter

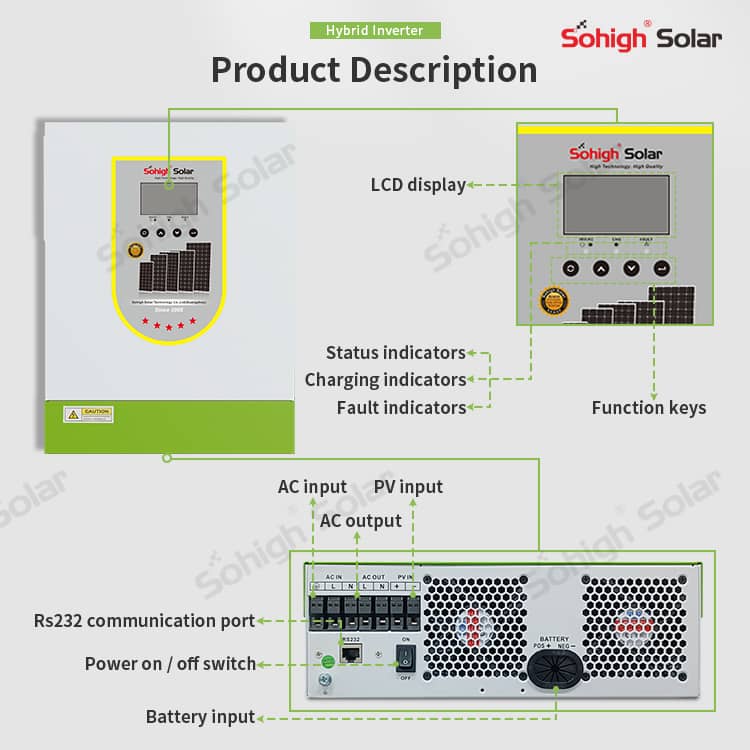

This is a versatile inverter/charger that combines the functions of an inverter, solar charger and battery charger to provide uninterrupted power support in a portable size. Its comprehensive LCD display provides user-configurable and easily accessible button operations such as battery charge current, AC/solar charger priority, and acceptable input voltages based on different applications.

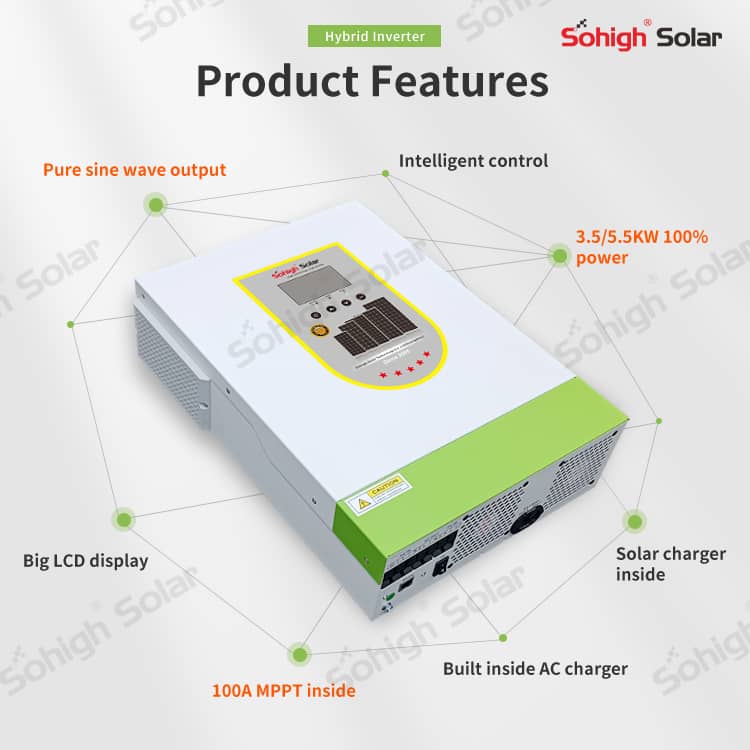

Features of 5500W Hybrid Inverter
1. Pure sine wave inverter
2. Configurable input voltage range for home appliances and personal computers via LCD settings
3. Configurable battery charging current according to the application via LCD setting
4. Configurable AC/solar charger priority via LCD setting

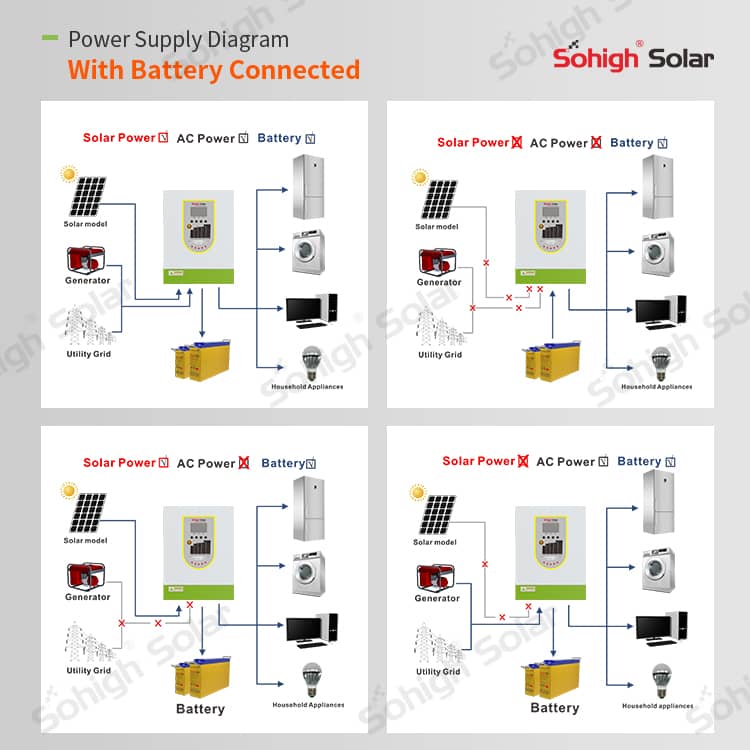

5. Compatible with mains voltage or generator power
6. Automatic restart when AC is restored
7. Overload/over temperature/short circuit protection
8. Intelligent battery charger design to optimize battery performance
9. Cold start function
| Module | Sohigh On-Off Grid 5.5KW | |||
| Rated Power | 5500W | |||
| Parallel Capability | No | |||
| Parallel Mode | No | |||

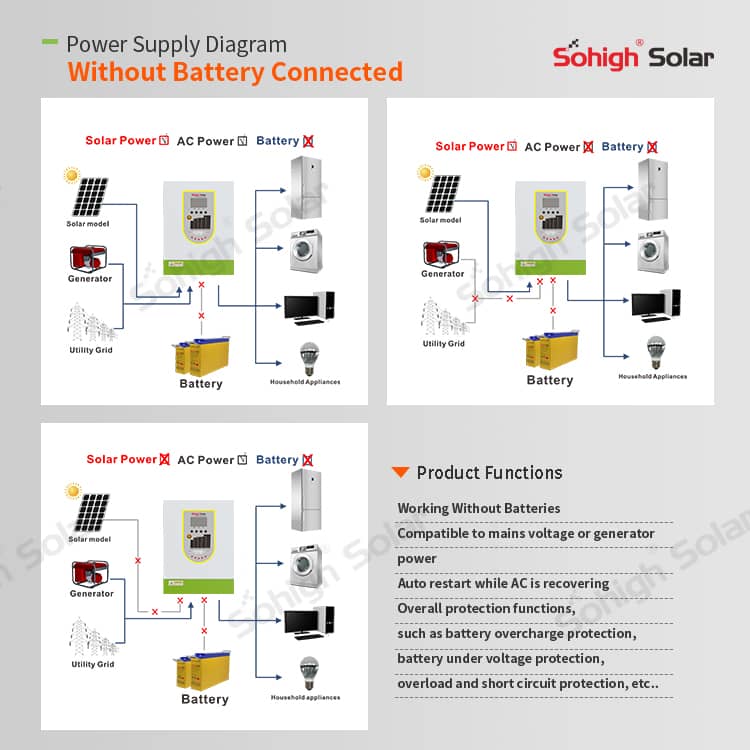

| Work without Battery | Yes | |||
| INPUT | ||||
| Voltage | 48VDC | |||
| Voltage Range | 176-280 VAC at 100% load 110-280 VAC at 50% load | |||
| Frequency Range | 50Hz/60Hz(Auto sensing) | |||
| OUTPUT | ||||
| AC Voltage Regulation (Batt.Mode) | 220~230VAC / 110~120VAC (Optional) | |||
| Surge Power | 11000VA for 5 sec | |||
| Efficiency(Peak) | >95% ( Rated R load, battery full charged） | |||
| Waveform | Pure sine wave | |||
| BATTERY | ||||
| Battery Voltage | 48 VDC | |||
| Floating Charge Voltage | 54 VDC | |||
| Overcharge Protection | 64 VDC | |||
| SOLAR CHARGER & AC CHARGER | ||||
| Solar Charger Type |
MPPT | |||
| Maximum PV Array Open Circuit Voltage |
500 VOC | |||
| Maximum PV Array Power | 6000W | |||
| Maximum PV Charge Current | 100A | |||
| MPPT Range Operating Voltage | 120-450VDC | |||
| Maximum AC Charge Current | 60A | |||
| PHYSICAL | ||||
| Communication (Additional) | Removable OTG USB/RS232/RS458/BLE/Dry-contact,BMS interface | |||
| OPERATING ENVIRONMENT | ||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
| Operating Temperature | ‘-10℃ to 50℃ | |||
| Storage Temperature | ‘-15℃ to 60℃ | |||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
