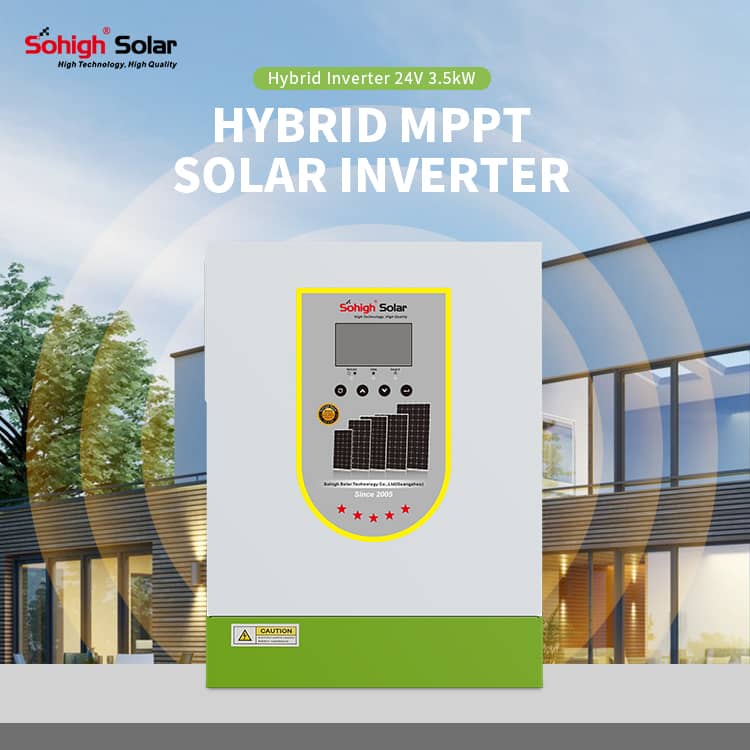

Solar Hybrid Inverter 3.5KW

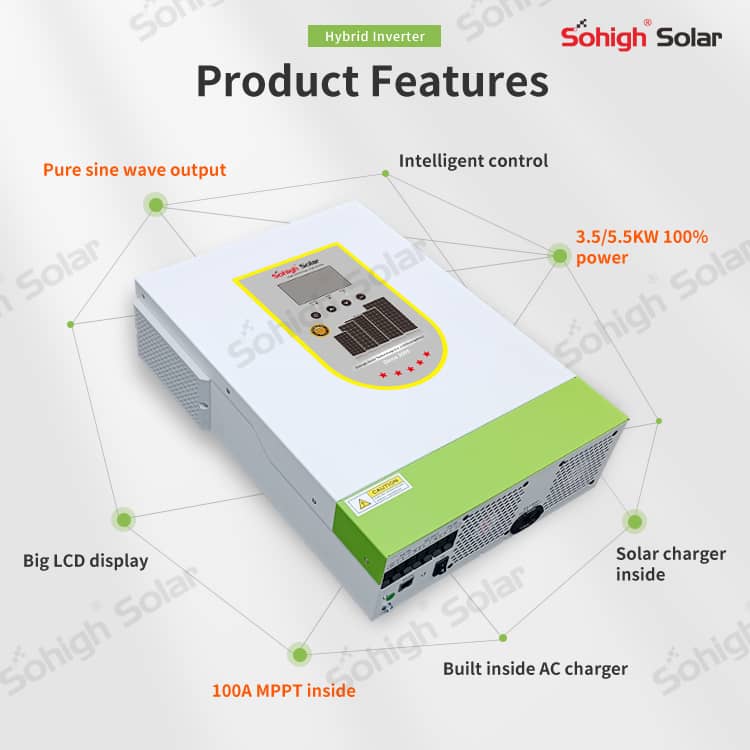

Feature of the 3500w hybrid inverter

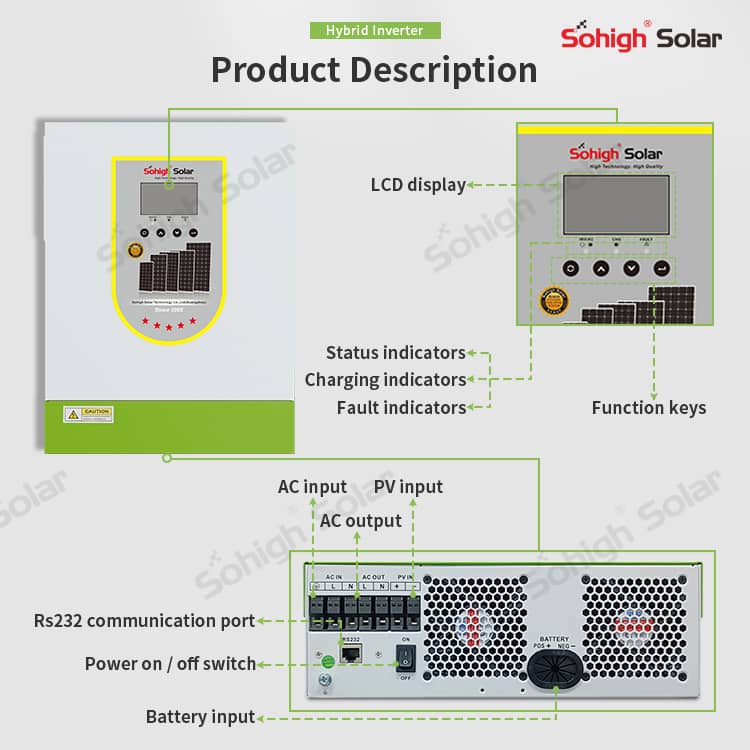

This hybrid inverter is a multifunction inverter/mppt charger that combines the functionality of an inverter, solar charger and battery charger to provide uninterrupted power support in a portable size. Its comprehensive LCD display provides user configurable and easily accessible button operations such as battery charge current, AC/solar charger priority, and acceptable input voltages based on different applications.

MPPT solar charge controllers are charge controllers embedded with algorithms that maximize the amount of power flow from the PV module into the battery.

MPPT is a DC to DC converter that works by taking the DC input from the PV module, converting it to AC and converting it back to different DC voltages and currents in order to precisely match the PV module to the battery.

The main principle of MPPT is to extract the maximum available power from the PV module by making it work at the most efficient voltage (maximum power point). In other words, MPPT checks the output of the PV module, compares it to the battery voltage, and then determines the best power the PV module can produce to charge the battery and convert it to the best voltage to get the maximum current into the battery. It can also supply power to a DC load connected directly to the battery.
