Model: Sohigh BAT-150AH
Brand: Sohigh Solar
Voltage(V): 12V
Product Origin: Guangzhou,China
Capacity : 150AH
Material: Gel

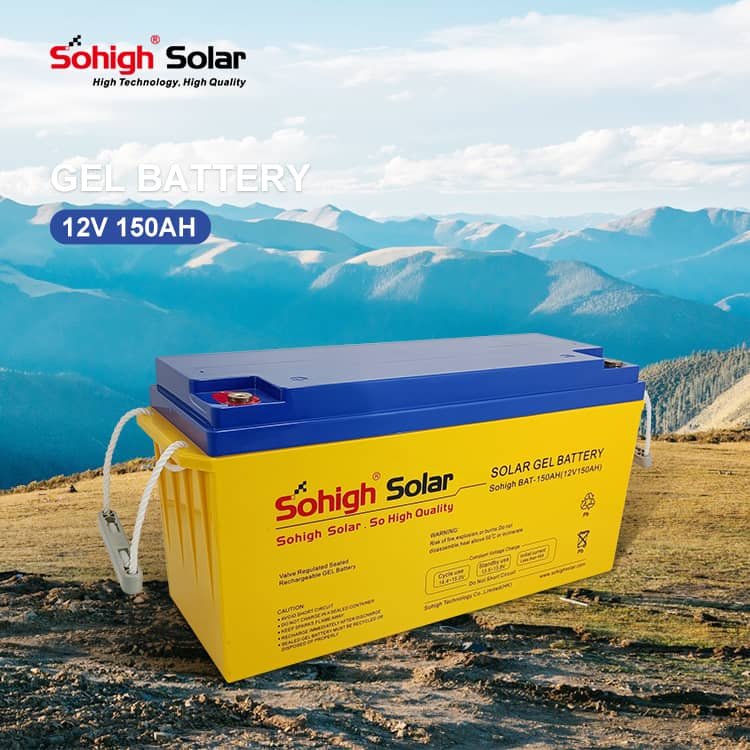

12V 150AH Gel Battery Description
【Maintenance Free & Safe to Use】 Manufactured with thick absorbent glass mat (AGM) separators and advanced valve regulated technology, Sohigh Solar Deep cycle AGM Batteries save you from acid leakage and frequent maintenance. No acid leakage, no water refilling, and no harmful hydrogen gas.
【Outstanding Discharge Performance】 Proprietary quinary alloy plates and exclusively treated plate grids enable low internal resistance and high discharge currents of up to 10 times the battery rated capacity. This means that Sohigh Solar AGM batteries can power home appliances with high current ratings.
【Longer Shelf Life】 Made of high purity materials, Sohigh Solar Deep Cycle AGM Batteries reduce the monthly self-discharge rate below 3% at 77℉ (25℃), which is 5 times lower than their flooded counterparts. No need to recharge the battery frequently when not in use.
【Better Performance at Extreme Temp】 The improved electrolyte formula ensures stable battery capacity and outstanding discharge performance from -4℉ (-20℃) to 140℉ (60℃).
【Power Most Appliances】 Featuring 2000A (5 seconds) max discharge current and consistent, stable discharge, the battery can power up most home appliances, such as a fridge, microwave,coffee maker, laptop, and more.
Main features
- Longer Service Life
- Low Internal Resistance
- Longest Available Standby Life
- Lower Self Discharge.
- High Energy Density
- Good deep discharge cycle capability
- Excellent Recovery from Deep
Function
- Standby power supply
- UPS/Power supply
- Telecommunication system
- Solar system
- Wind system
- Power station
Model | Sohigh BAT-150AH |
Other Capacity | Solar batteries of other capacities can be customized,welcome inquire us to get more information. |
Cells Per Unit | 6 |
Voltage(V) | 12V |
Capacity | 150Ah@10hr-rate to 1.80V per cell @25℃ |
Max.Discharge Current | 1500A(5 sec) |
Internal Resistance | Approx. 4.2m Ω |
Recommended Maximum Charging | 45A |
Operating Temperature range | Discharge:-20℃~60℃,Charge:0℃~50℃ Storage:-20℃~60℃ |
Normal Operating Temperature Range | 25℃±5℃ |
Float charging Voltage | 13.6 to 13.8V DC/unit Average at 25℃ |
Equalization and Cycle service | 14.4 to 14.6V DC/unit Average at 25℃ |
