Model: Sohigh LiBAT-200AH-24V
Brand: Sohigh Solar
Voltage(V): 24V
Product Origin: Guangzhou,China
Capacity: 200A
Material: Lithium ion
Features of the 25.6V 200AH lifepo4 battery
Ironclad Protection
A steel-hardened, gray cast iron case provides significant improvements in protection against structural affects versus a typical plastic case that can have its integrity and functionality compromised by excessive heat and mechanical shock during a typical service-life.
Streamlined Visual Assessments
Sophisticated monitoring software provides on-demand information for battery health, cell health, BMS protections, regulatory temperature status, and cell balancing leaving peace of mind and confidence in your system.
Longer Service Life
Our LiFePO4 battery provides 2500 – 7000 cycles & a 10 years lifetime compared to 200 – 500 cycles & a 3 years lifetime in typical Lead Acid chemistry.
Efficient Power
Our LiFePO4 battery’s flat discharge curve holds above 48V for up to 95% of its capacity usage providing astronomical boosts in run-time compared to only 50% in Lead Acid.
Impeccably Lightweight
Our LiFePO4 battery is only a 1/3 of the weight of Lead Acid which makes it the disputable choice for RVs, Marine and Off-Grid Applications when towing or mobility is in the consideration.
Complete Protection
The lithium battery’s unique built-in Battery Management System (BMS) protects it from overcharge, deep discharge, overloading, overheating and short circuit, and excessive low self-discharge rate ensuring up to 1 year maintenance-free storage. Built-in low-temp cut off prevents charging under 23 °F (-5 °C).
Electrical Characteristics | Nominal Voltage | 25.6V | |||
Nominal Capacity | 200AH | ||||
Energy | 5120Wh | ||||
Internal Resistance | ≤200mΩ | ||||

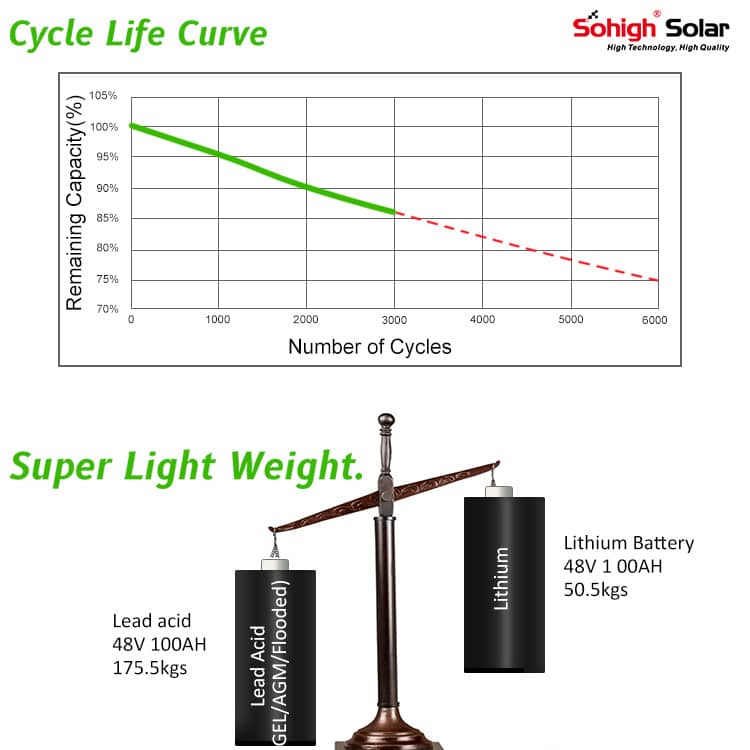

Cycle Life | >3500 cycles @1C 100%DOD | ||||
Months Self Discharge | <3% | ||||
Efficiency of Charge | 100% @0.2C | ||||
Efficiency of Discharge | 96~99% @1C | ||||
Standard Charge | Charge Voltage | 29.2±0.2V | |||
Charge Mode | 0.2C to 14.6V, then 14.6,charge current 0.02C(CC/CV) | ||||
Charger Current | 20A | ||||
Max. Charge Current | 100A | ||||
Charge Cut-Off Voltage | 14.8V±0.2V | ||||
Standard Discharge | Continuous Current | 150A | |||
Max. Pulse Current | 300A(<3s) | ||||
Discharge Cut-off Voltage | 20V | ||||
Mechanical | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | |||
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | ||||
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | ||||
