Brand: Sohigh Solar
Product Origin: Guangzhou,China
About Solar Cable
We sell cable and connectors for solar systems, PV projects. Our products are reliable, quality cables and the connectors make it easy for installation.
We source for the best solar cables and connectors, our products guarantee high quality and reliability to ensure that customers are happy.
We supply these cables in bulk or per meter as required, bulk pricing on Solar cables will reduce your cost as by buying per meter. 4mm / 6mm/10mm
Black and Red, cut to required lengths. Solar Cables and Connectors are specially design to assist you with easy installations. The solar cables are ultra violet resistance.
They’re suitable for internal and external installations and connect the solar cells to the inverter or the DC mains cable. Our range of Solar cable can be roof mounted or buried direct in the earth.
| Grade | Industrial | |||
| Material | Copper, Nylon, Steel | |||
| Electrical Features | ||||
| Rated Current | 22A(2.5m㎡), 35A(4m㎡),40A(6m㎡) | |||
| Withstanding Voltage | 1500V DC(IEC),1000V/1500V DC(UL) | |||
| Contact Resistance | ≤0.3mΩ | |||
| Protection Class | Class II | |||
| Mechanical Features | ||||
| Temperature Range | -40 ºC~+90ºC | |||

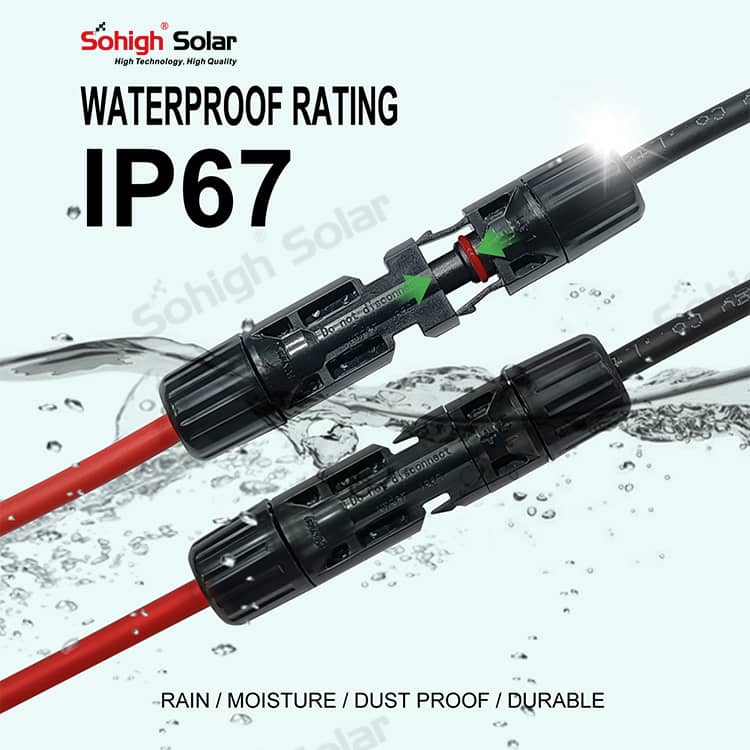

| Protection Degree | IP2X,unmated;IP68,mated | |||
| Wire Size Range | Wire Size Range | |||
| Unmating Force | 200 Newton | |||
| Material Features | ||||
| Insulation Material | PC | |||
| Wire Size Range | 2.5/4/6m㎡(14AWG,12AWG,10AWG) | |||
| Flame Class | UL94-V0 or UL94-5VA | |||
