Power(W): 400W
Model: Sohigh SP-400M
Brand: Sohigh Solar
Product Origin: Guangzhou,China
Material: Mono
The Sohigh SP-400M is a high performance 400 watt monocrystalline PERC 54cell solar panel operating at 20.07% efficiency. The module features a 5 busbar design, durable construction and excellent output under different light conditions, with anti-reflective glass. The actual output of the Sohigh Solar module is up to
5 Wp higher than the nominal power.
Features of 400w mono solar panels
– 54 Monochrystalline cells
– More energy from less space: Sohigh SP-400M solar panels convert more sunlight into electricity than conventional panels.
– More electricity:
Sohigh SP400M solar panels convert more sunlight to electricity over the life of your system than conventional panels. Which means you produce 55% more energy over 25 years and save more on your electricity bills, too.
– More flexibility: Because residential solar panels generate more electricity from a smaller area, you can expand energy production simply by using additional roof space to add more panels later.
– The panels are designed to deliver consistent, trouble-free energy over a very long lifetime.
| Module | Sohigh SP-400M | |||

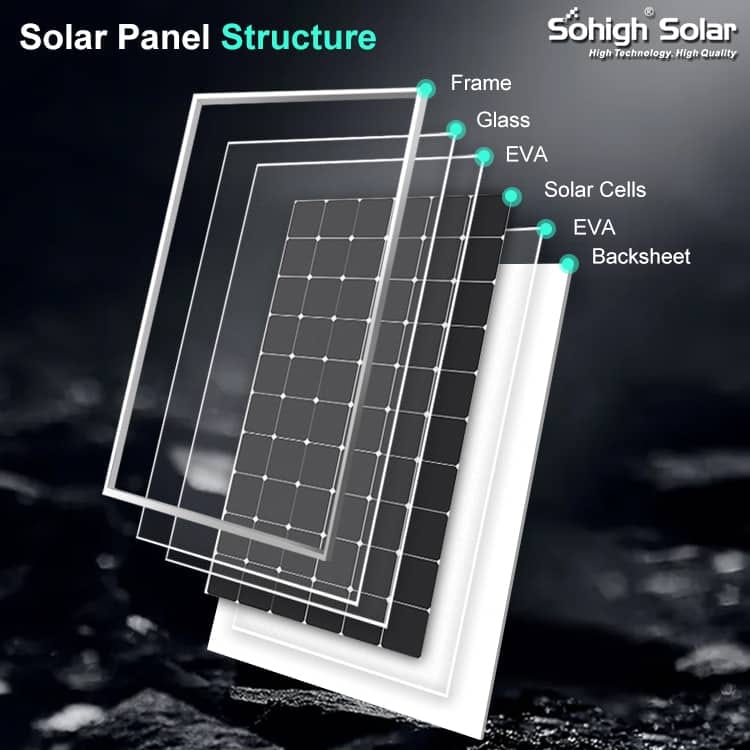

| Encapsulation | Class/Eva/Cell/Eva/Backsheet | |||
| Maximum Power Pmax (W) | 400 | |||
| Maximum Power Voltage (Vmp/V) | 30.78 | |||
| Maximum Power Current (Imp/A) | 13 | |||
| Open Circuit Voltage (Voc/V) | 49.60 | |||
| Short Circuit Current (Isc/A) | 13.78 | |||
| Module Efficiency (%) | 20.70 | |||
| Power Tolerance (W) | 0 ~ +5W | |||
| Temperature Coefficient of Isc (αIsc) | +0.043%/℃ | |||
| Temperature Coefficient of Voc (βVoc) | -0.26%/℃ | |||
| Temperature Coefficient of Pmax (γPmp) | -0.36%/℃ | |||
| STC | Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5 | |||
Please contact us to get the latest datashet.
