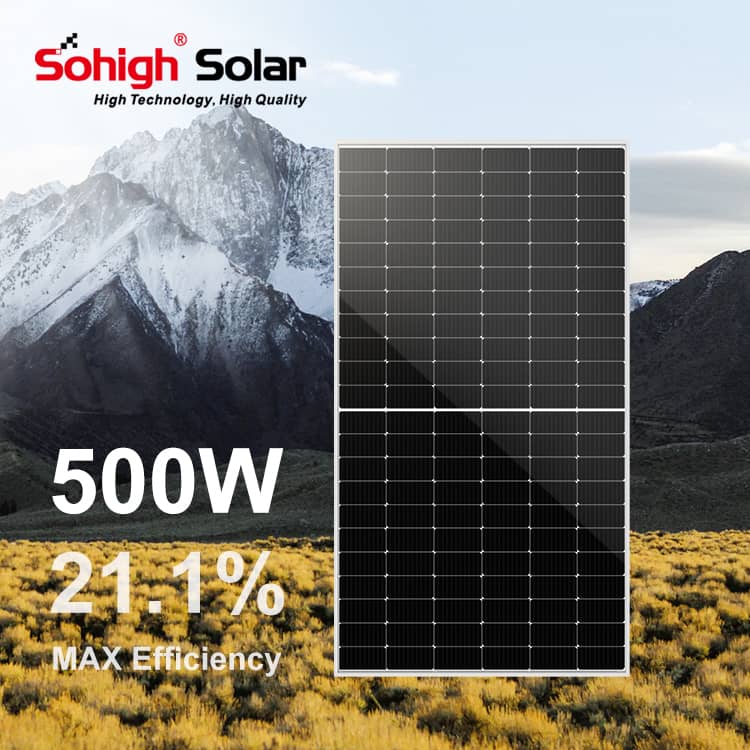

Half Cut Solar Mono Panel 500W

Power(W): 500W
Model: Sohigh SP-500MH
Brand: Sohigh Solar
Product Origin: Guangzhou,China
Material: Mono

About 500W Half Cut Solar Panel

The solar panel of 500W Monocrystalline is composed of an anti-reflective glass that increases the level of transmissivity by 2%, which allows to take advantage of all the light projected by the sun and increase its efficiency by 2%.

According to the technologies in the manufacture of the solar module , two types of solar panels: monocrystalline solar panels and polycrystalline solar panels, it is important to be clear about the differences between monocrystalline solar panels and polycrystalline solar panels so that the cell type is adequate to the place where the solar panel will be installed.

The monocrystalline solar panel of 500W is a very efficient solution because it gives us more power in less space so we can increase the solar power installed in the same space or have the same installed solar power occupying less space. The solar panel of 500W Monocrystalline is easy to assemble and install. With the solar panel 500W Monocrystalline, you will have great functionality for the generation of electric power in field huts, warehouses, buildings or usual homes.

The typical application of solar panel 500W monocrystalline is to supply electric power to electronic equipment of small and medium power that, by their characteristics, are located in areas far from urban centers, such as batteries away from conventional energy sources (example: A battery that is in some little use house) relief posts, lights, small beacons … It is also widely used in self-consumption facilities due to its better ratio of power and size

You can buy the 500W solar panel for single units or for pallets or integrated in our all-inclusive solar kits, both for isolated installations and for self-consumption installations, providing absolute autonomy and independence of the electric companies, providing the daytime hours energy that will be consumed and stored to be able to be consumed also at night hours or when solar energy is not available due to weather conditions.

ModuleSohigh SP-500MH
EncapsulationClass/Eva/Cell/Eva/Backsheet
Maximum Power Pmax (W)500
Maximum Power Voltage (Vmp/V)38.33
Maximum Power Current (Imp/A)13.05
Open Circuit Voltage (Voc/V)45.65
Short Circuit Current (Isc/A)13.92
Module Efficiency (%)21.1
Power Tolerance (W)0 ~ +5W
Temperature Coefficient of Isc (αIsc)+0.046%℃
Temperature Coefficient of Voc (βVoc)-0.276%℃
Temperature Coefficient of Pmax (γPmp)-0.350%℃
STCIrradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5

Please contact us to get the latest datashet.
