Power(W): 450W
Model: Sohigh SP-450MH
Brand: Sohigh Solar
Product Origin: Guangzhou,China
Material: Mono

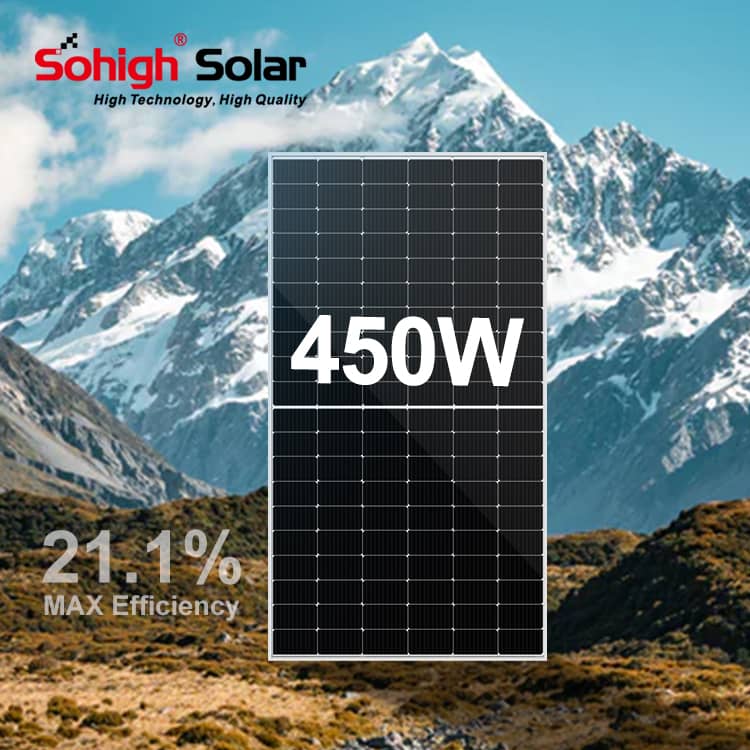

About 4500W Half Cut Solar Panel
The 450w half-cell monocrystalline solar panel adopts most advanced PERC cells technology, realizing higher module conversion efficiency. Black silicon cells are used, with lower reflection, so as to improve power generation output.
Key Features of 450W Half Cut Cell Mono PERC Solar Panel
1.NEW TECHNOLOGY: LOW LEVELISED COST OF ELECTRICITY:
Higher yield per surface area, lower costs, higher power classes, and an efficiency rate of up to 21.10%.
2.LOW ELECTRICITY GENERATION COSTS:
Higher yield per surface area thanks to higher power classes and an efficiency rate of up to 18.8%.
3.INNOVATIVE ALL-WEATHER TECHNOLOGY:
Optimal yields, whatever the weather with excellent low-light and temperature behavior.
4.EXTREME WEATHER RATING:
High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (2400 Pa).
5.A RELIABLE INVESTMENT:
Inclusive 10-year product warranty and 25-year linear performance guarantee
| Module | Sohigh SP-450MH | |||
| Encapsulation | Class/Eva/Cell/Eva/Backsheet | |||
| Maximum Power Pmax (W) | 450 | |||
| Maximum Power Voltage (Vmp/V) | 34.67 | |||
| Maximum Power Current (Imp/A) | 12.98 | |||
| Open Circuit Voltage (Voc/V) | 41.25 | |||
| Short Circuit Current (Isc/A) | 13.89 | |||
| Module Efficiency (%) | 20.8 | |||
| Power Tolerance (W) | 0 ~ +5W | |||
| Temperature Coefficient of Isc (αIsc) | +0.046%℃ | |||
| Temperature Coefficient of Voc (βVoc) | -0.276%℃ | |||
| Temperature Coefficient of Pmax (γPmp) | -0.350%℃ | |||
| STC | Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5 | |||
Please contact us to get the latest datashet.
