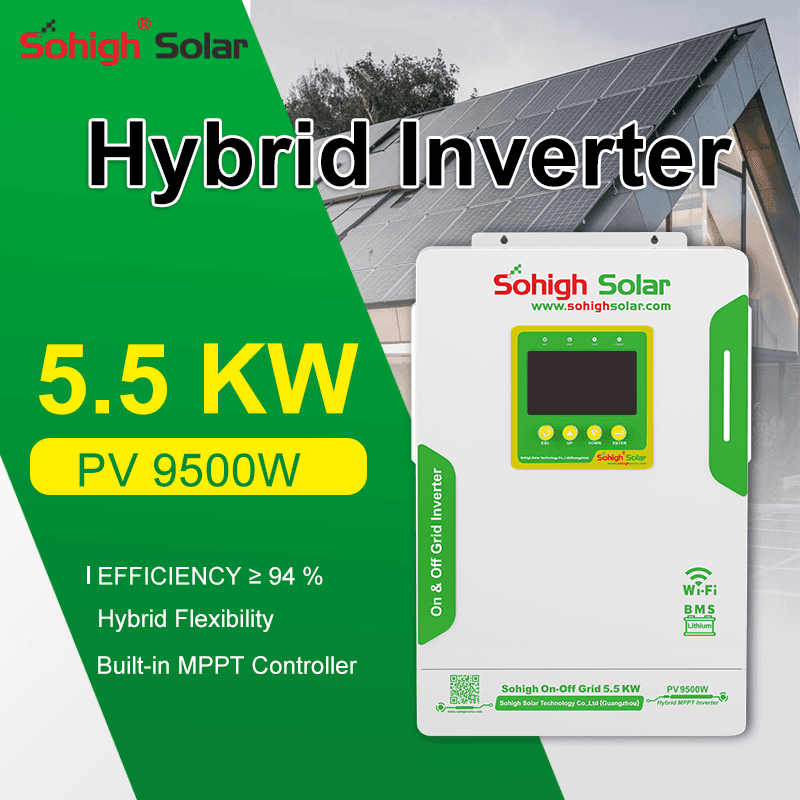

Solar Hybrid Inverter 5500W

Power(W): 5500W
Brand: Sohigh Solar
Voltage(V): 48V
Product Origin: Guangzhou,China
Capacity: 60A

Features of the 5500w hybrid inverter

1.Full digital voltage and current double closed loop control, advanced technology, output of pure sine wave.

2.Two output modes: mains bypass and inverter output; Uninterrupted power supply. (Load Working Mode can set Solar or Utility to provide priority)

3.Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.

4.Advanced MPPT technology with an efficiency of 99.9%. Built in 60A mppt controller

5.Designed with an LCD screen and 3 LED indicators for dynamic display of system data and operating status.

6.ON/OFF rocker switch for AC output control.

7.Power saving mode available to reduce no-load loss.

8.Intelligent variable speed fan to efficiently dissipate heat and extend system life.

9.Lithium battery activation by PV solar or mains, allowing access to lead-acid batteries and lithium batteries.

Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.

Module

Sohigh

Rated Power

7KVA(5500W)

Parallel Capability

No

Parallel Mode

No

Work without Battery

Yes

INPUT

Voltage

48VDC

Voltage Range

176-280 VAC at 100% load 110-280 VAC at 50% load

Frequency Range

50Hz/60Hz(Auto sensing)

OUTPUT

AC Voltage Regulation (Batt.Mode)

220~230VAC / 110~120VAC (Optional)

Surge Power

11000VA for 5 sec

Efficiency(Peak)

>95% ( Rated R load, battery full charged)

Waveform

Pure sine wave

BATTERY

Battery Voltage

48 VDC

Floating Charge Voltage

54 VDC

Overcharge Protection

64 VDC

SOLAR CHARGER & AC CHARGER

Solar Charger Type

MPPT

Maximum PV Array Open Circuit Voltage

500 VOC

Maximum PV Array Power

6000W

Maximum PV Charge Current

100A

MPPT Range Operating Voltage

120-450VDC

Maximum AC Charge Current

60A

PHYSICAL

Communication (Additional)

Removable OTG USB/RS232/RS458/BLE/Dry-contact,BMS interface

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

‘-10℃ to 50℃

Storage Temperature

‘-15℃ to 60℃

Humidity

5% to 95% Relative Humidity(Non-condensing)
