Power(W): 2000W
Model: Sohigh-2000W
Brand: Sohigh Solar
Voltage(V): 12/24V
Product Origin: Guangzhou,China

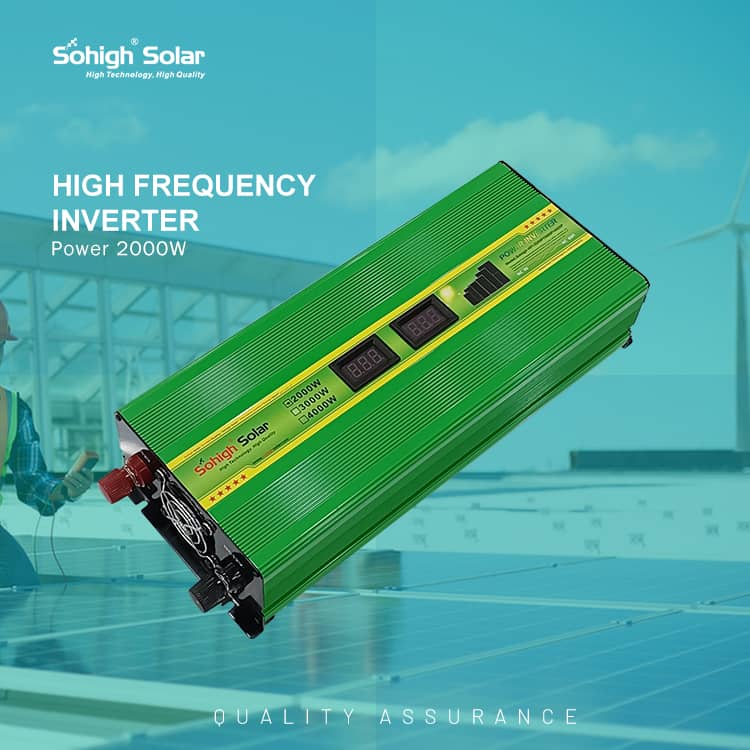

Features of the 2000w high frequency inverter
Optimized for 12/24VDC system voltage, it is the best addition to any off-grid solar power system.
Provides high-quality waveform with low harmonic distortion.
Both DC input and AC output have overload protection to prevent damage to components and equipment.
Special LED indicators for undervoltage and overvoltage protection, overtemperature protection, overload protection and short circuit indication. High-speed ventilation fans help keep the inverter running cool.
Quiet, no static or hum. This inverter can effectively and reliably supply various household AC products, such as TVs, computers, air conditioners, etc.
| Module | Sohigh -2000W | |||
| Output | ||||
| Output voltage | AC220V ± 5% | |||
| Output power | 2000W | |||
| Peak power | 4000W | |||
| Output frequency | 50HZ | |||
| Input | ||||
| Input voltage | DC12V,24V | |||
| Voltage range |
10-15V 20-30V | |||
| Protection Over voltage | 10V,20V | |||
| Protection Charging | 15.5V,31V | |||
| Current Maximm | 20A,10A | |||
| Efficiency | 94% | |||
