Power(W): 8200W
Model: Sohigh On-Off Grid 10KVA
Brand: Sohigh Solar
Voltage(V): 48V
Product Origin: Guangzhou,China
Capacity: 160A

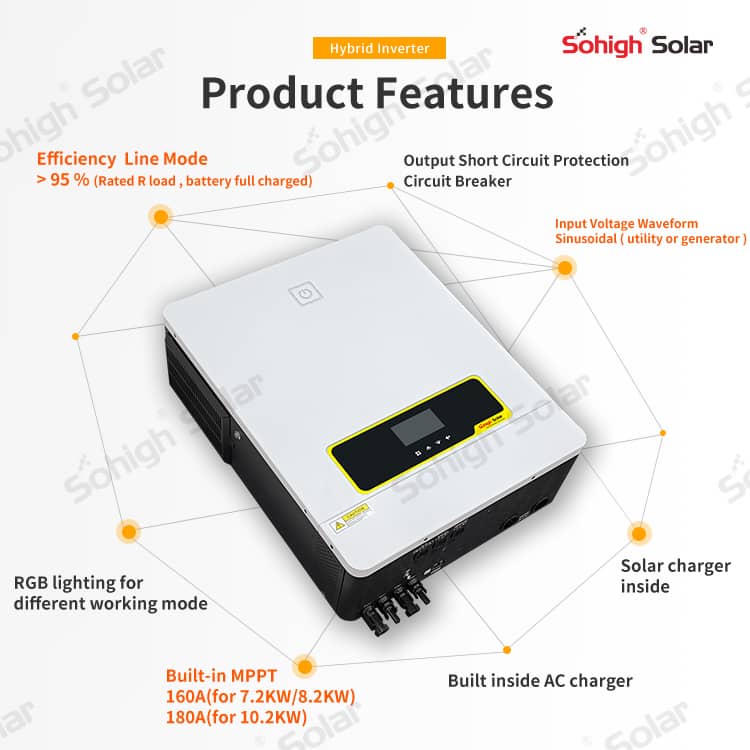

Features of 8200W Hybrid Inverter
[Pure sine wave inverter with built in 140A MPPT controller] Much better than improved sine wave inverters, protects the life of appliances without electromagnetic pollution while efficiently charging the battery via MPPT.

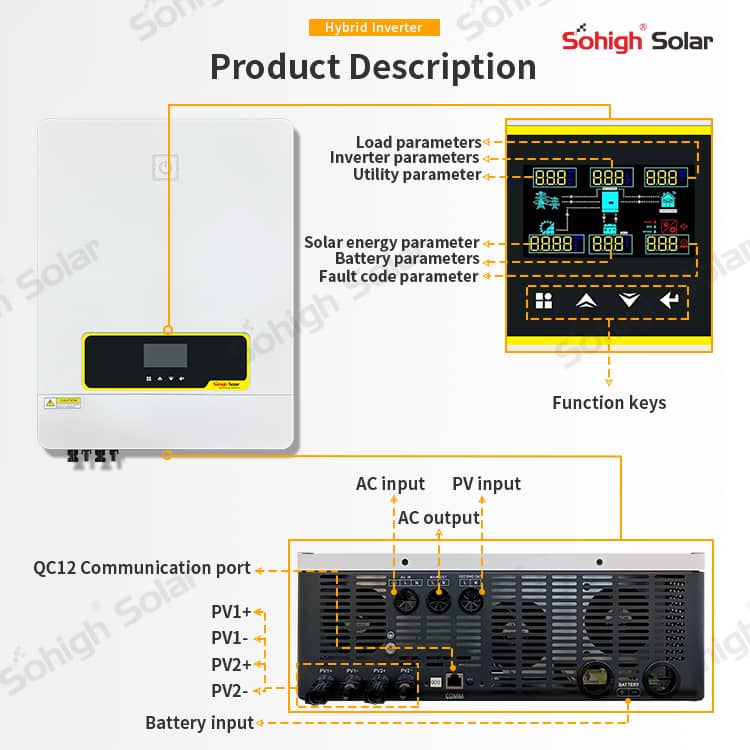

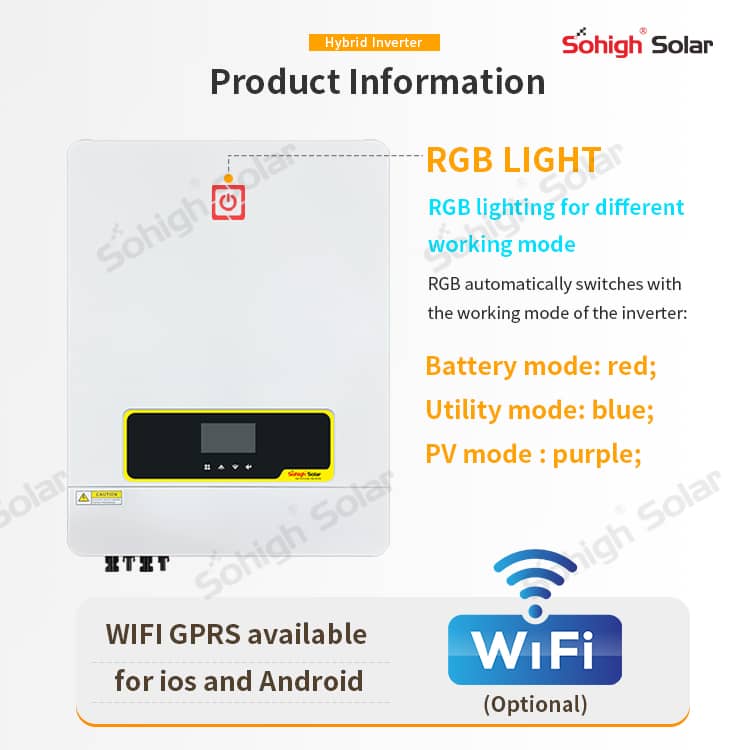

[Very detailed LCD screen and customizable status LED bar with RGB light] Easily check voltage, current, system status, remaining battery, etc. 6 buttons to customize your system parameters and RGB light can display different colors to show the output source from PV, Grid or battery and battery charge/discharge status.

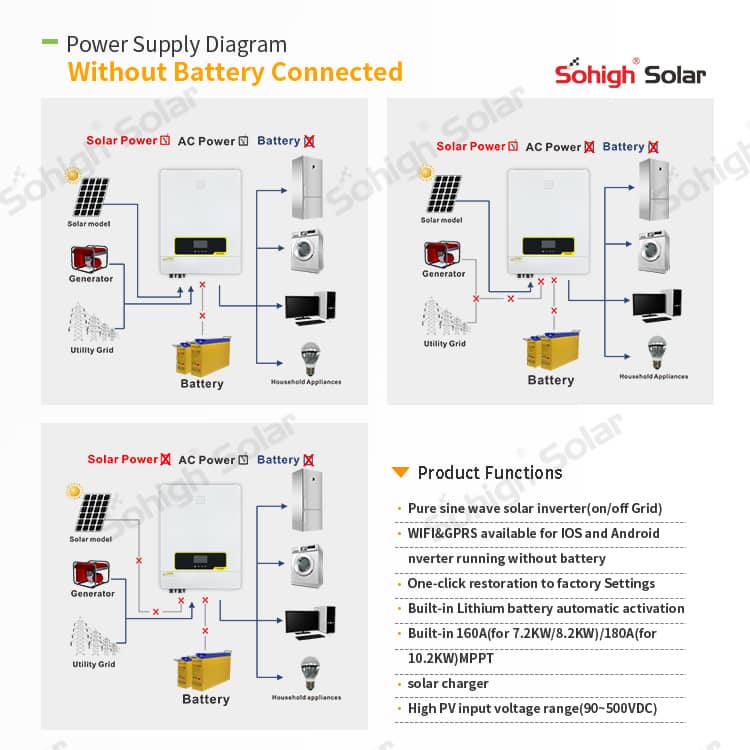

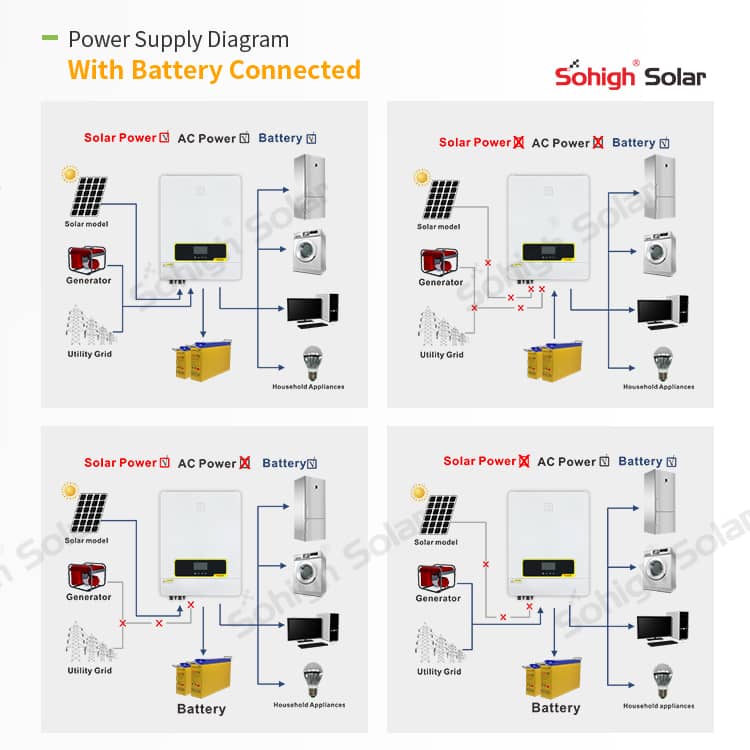

[Charging and output mode selectable] Mobile monitoring of the inverter is available, batteries can be charged from solar or utility power or generator power (optional), output mode and priority is configurable, solar/utility/battery power is selectable.
Off-grid inverter 7200W, 48V lead acid / lithium battery support, dustproof design, built-in WIFI, optional input voltage range for home applications and personal computers.
| Power | 7.2KW | 8.2KW | 10.2KW | |
| Input Voltage Waveform | Sinusoidal (utility or generator) | |||
| Norminal Input Voltage | 230Vac | |||
| Low Loss Voltage | 170Vac±7V (UPS); 90Vac±7V (Appliances) | |||
| Low Loss Return Voltage | 170Vac±7V (UPS); 100Vac±7V (Appliances) | |||
| High Loss Voltage | 280Vac±7V | |||
| High Loss Return Voltage | 270Vac±7V | |||
| Max AC Input Voltage | 300Vac | |||
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) | |||
| Low Loss Frequency | 40±1HZ | |||
| Low Loss Return Frequency | 42±1HZ | |||
| High Loss Frequency | 65±1HZ | |||
| High Loss Return Frequency | 63±1HZ | |||
| Output Short Circuit Protection | Circuit Breaker | |||
| Efficiency (Line Mode) | >95% ( Rated R load, battery full charged ) | |||
| Transfer Time | 10ms typical (UPS); 20ms typical (Appliances) | |||
| Output Voltage Waveform | Pure Sine Wave | |||
| Output Voltage Regulation | 230Vac+ 5% | |||
| Output Frequency | 50HZ | |||
| Peak Efficiency | 93% | |||
| Overload Protection | 3s@≥150% load; 5s@101%~ 150% load | |||
| Surge Capacity | 2* rated power for 5 seconds | |||
| Nominal DC Input Voltage | 48Vdc | |||
| Cold Start Voltage | 46.0Vdc | |||
| Low DC Warning Voltage @ load ≤ 50% @ load≥50% | 44.0Vdc 42.0Vdc | |||
| Low DC Warning Return Voltage @ load ≤50% @ load≥50% | 45.0Vdc 44.0Vdc | |||
| Low DC Cut-off Voltage @ load ≤ 50% @ load≥50% | 41.0Vdc 40.0Vdc | |||
| High DC Recovery Voltage | 62Vdc | |||
| High DC Cut-off Voltage | 63Vdc | |||
| Storage Temperature | ‘-10℃ to 60℃ | |||
| No Load Power Consumption | 60W | 70W | 75W | |
| Maximum Second Load(battery model) | 2400W | 2733W | 3400W | |
| Main Load Cut Off Voltage | 44VDC | |||
| Main Load Return Voltage | 53.5VDC | |||
| Charging Algorithm | 3-Step | |||
| AC Charging Current (Max) | 140Amp | 140Amp | 160Amp | |
| Floating Charging Voltage | 54Vdc | |||
| Max. PV Array Power | 8200W | 10200W | ||
| Nominal PV Voltage | 360Vdc | |||
| PV Array MPPT Voltage Range | 90Vdc-500Vdc | |||
| Max. PV Array Open Circuit Voltage | 500Vdc | |||
| Max Charging Current (AC charger plus solar charger) | 160Amp | 160Amp | 180Amp | |
| Nominal Output Voltage | 220/230/240 VAC | |||
| Feed-in Grid Voltage Range | 195 ~ 253VAC | |||
| Feed-in Grid Frequency Range | 49~51士1Hz/59~61+1Hz 49~51士1Hz/59~61+1Hz | |||
| Nominal Output Current | 31.3A | 35.6A | 44.3A | |
| Power Factor Range | >0.99 | |||
| Maximum Conversion Efficiency (DC/AC) | 98% | |||
| Operating Temperature Range | -10°C to 50°C | |||
| Storage temperature | -15°C~ 60°C | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||
