Model: Sohigh LiBAT-100AH-51.2V
Brand: Sohigh Solar
Voltage(V): 51.2V
Product Origin: Guangzhou,China
Capacity: 100AH
Material: Lithium ion

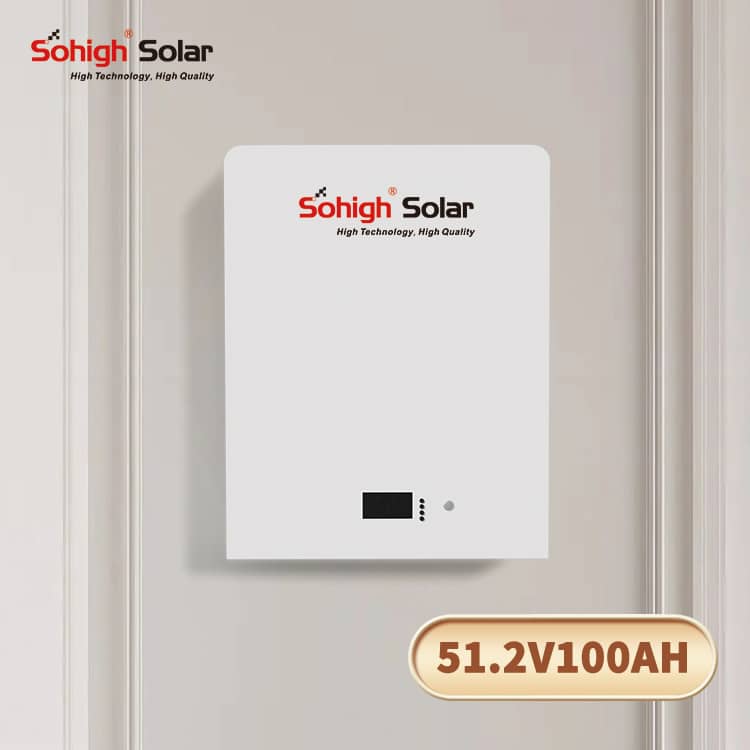

A 51.2V100AH wall-mounted lithium battery has the following characteristics:
Voltage: The battery has a nominal voltage of 51.2 volts. This voltage level is commonly used in various applications, including electric vehicles, renewable energy storage systems, and off-grid power systems.
Capacity: The battery has a capacity of 100 ampere-hours (AH). This indicates the amount of charge the battery can deliver over a specific period. In this case, the battery can theoretically supply a continuous current of 100 amperes for one hour, or 50 amperes for two hours, and so on.
Chemistry: The battery uses lithium-ion technology. Lithium-ion batteries are known for their high energy density, long cycle life, and lightweight design. They are commonly used in many portable electronic devices and energy storage systems.
Wall-mounted design: The battery is designed to be mounted on a wall, providing a convenient and space-saving solution for installations. Wall-mounted batteries are often used in residential and commercial applications, such as home energy storage systems or backup power systems.
Integrated battery management system (BMS): The battery is likely to have an integrated BMS. The BMS monitors and controls various parameters of the battery, such as voltage, current, temperature, and state of charge. It ensures the safe operation and optimal performance of the battery, protecting it from overcharging, over-discharging, and other potentially damaging conditions.
Safety features: Lithium ion batteries often come with safety features to minimize the risk of accidents. These may include overcurrent protection, short circuit protection, thermal protection, and cell balancing to ensure the cells are charged and discharged evenly.
Communication interface: The battery may have a communication interface, such as CAN bus or Modbus, to enable integration with other systems and devices. This allows for monitoring, control, and communication with the battery, facilitating system integration and management.
It’s important to note that specific characteristics may vary depending on the manufacturer and the intended application of the battery. Always refer to the manufacturer’s documentation or specifications for accurate and detailed information about a specific battery model.
| Electrical Characteristics | Nominal Voltage | 51.2V | |||
| Nominal Capacity | 100AH | ||||
| Energy | 5120Wh | ||||
| Internal Resistance | ≤200mΩ | ||||
| Cycle Life | >3500 cycles @1C 100%DOD | ||||
| Months Self Discharge | <3% | ||||
| Efficiency of Charge | 100% @0.2C | ||||
| Efficiency of Discharge | 96~99% @1C | ||||
Standard Charge | Charge Voltage | 55.5±0.2V | |||
| Charge Mode | 0.2C to 14.6V, then 14.6,charge current 0.02C(CC/CV) | ||||
| Charger Current | 20A | ||||
| Max. Charge Current | 50A | ||||
| Charge Cut-Off Voltage | 59.2V±0.2V | ||||
Standard Discharge | Continuous Current | 100A | |||
| Max. Pulse Current | 150A(<3s) | ||||
| Discharge Cut-off Voltage | 40V | ||||
Mechanical | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | |||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | ||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | ||||
