Model: Sohigh BAT-250AH-F
Brand: Sohigh Solar
Voltage(V): 12V
Product Origin: Guangzhou,China
Capacity: 250AH

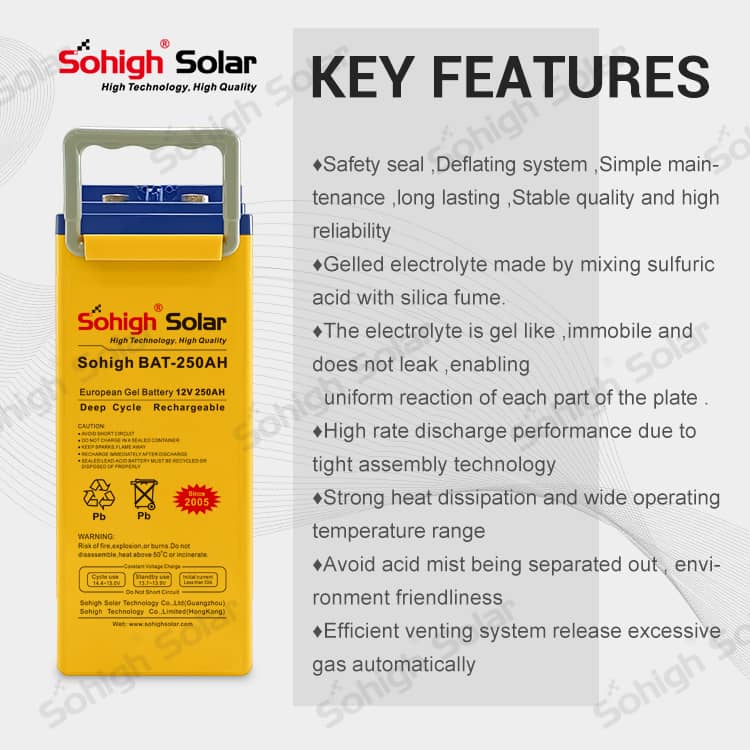

Feature of the front terminal slim battery-12V250AH
1. Safety seal, deflation system, easy maintenance, long service life, stable quality and high reliability.
2. Gel electrolyte mixed with sulfuric acid and silica fume.
3. The electrolyte is gel-like, does not flow, does not leak, and makes all parts of the plate react evenly. The gel-like electrolyte, which does not flow or leak, allows every part of the battery panel to react evenly.
4. Strict assembly technology ensures high rate discharge performance.
5. Strong heat dissipation and wide operating temperature range.
6. Avoid acid mist precipitation, friendly to the environment
7. Efficient ventilation system, automatically release excess gas
| Module | Sohigh BAT-250AH-F | |||
| Cells Per Unit | 6 | |||
| Voltage(V) | 12V | |||
| Terminal Type | T18 | |||
| Capacity | 250Ah@10hr-rate to 1.80V per cell @25℃ | |||
| Max.Discharge Current | 2500A(5 sec) | |||
| Internal Resistance | Approx. 2.8m Ω | |||
| Recommended Maximum Charging |
60A | |||
| Operating Temperature range | Discharge:-20℃~60℃，Charge:0℃~50℃ Storage:-20℃~60℃ | |||
| Normal Operating Temperature Range | 25℃±5℃ | |||
| Float charging Voltage | 13.6 to 13.8V DC/unit Average at 25℃ | |||
| Equalization and Cycle service | 14.4 to 14.6V DC/unit Average at 25℃ | |||
| Designed floating life(20℃) | 12 years | |||
| Self Discharge | Gel batteries can be stored for more than 6 months at 25℃ Self-discharge ratio less than 3% per month at | |||
