Model: Sohigh LiBAT-210AH-51.2V
Brand: Sohigh Solar
Voltage(V): 51.2V
Product Origin: Guangzhou,China
Capacity: 210AH
Material: Lithium ion

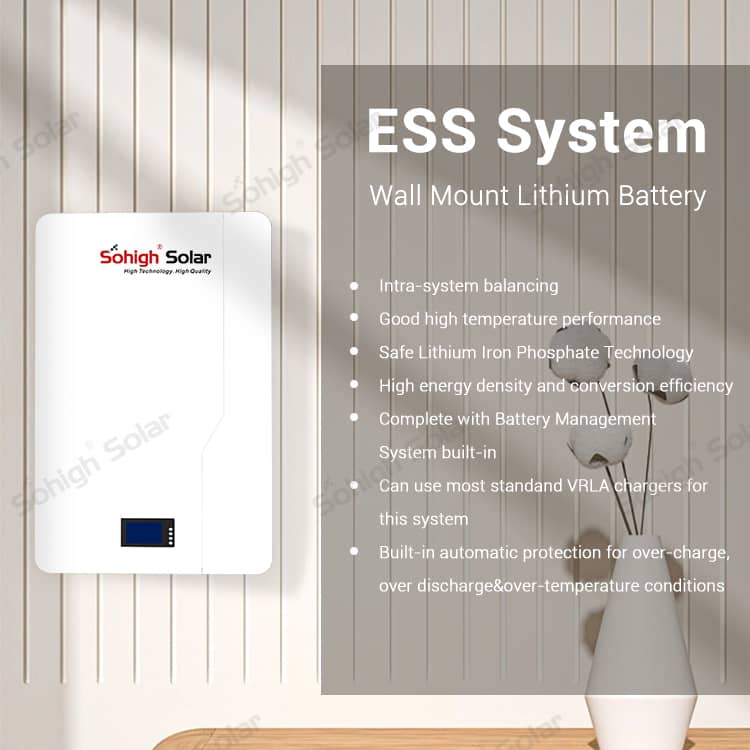

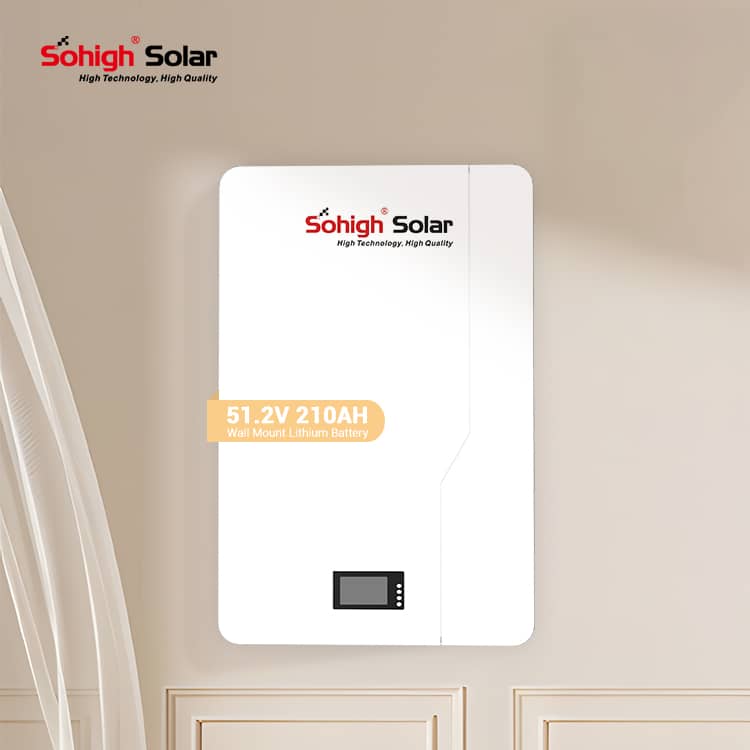

51.2V household wall-mounted lithium iron phosphate battery

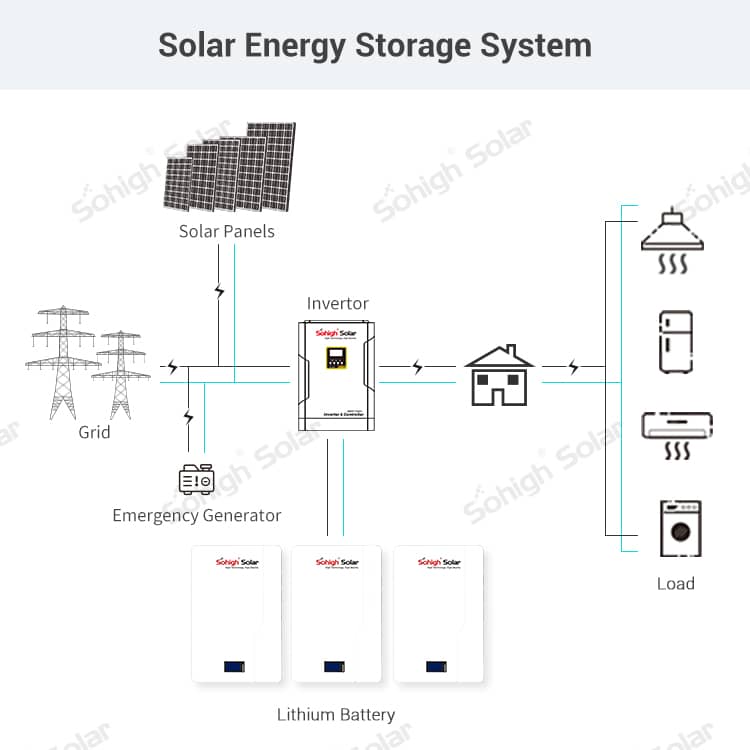

Sohigh Solar Wall Mount Lithium Iron Phosphate Batteries are the perfect home energy storage solution for your on-grid or off-grid solar installations. This whole house backup battery system has various advantages, including 98% round trip efficiency when charging or discharging, 6000 cycle life, high voltage electronic battery management system, easy installation and no maintenance etc. Its purpose is to provide backup power in the event of a blackout caused by extreme weather, or to help store electricity for use during peak periods.
On the other hand, it has a short circuit protection design to protect the backup power system from electrical short circuit. With our latest technology, our home power system can achieve about 99% power efficiency compared to other products on the market. It will meet all your home’s energy needs thanks to its excellent scalability, safety and adaptability.

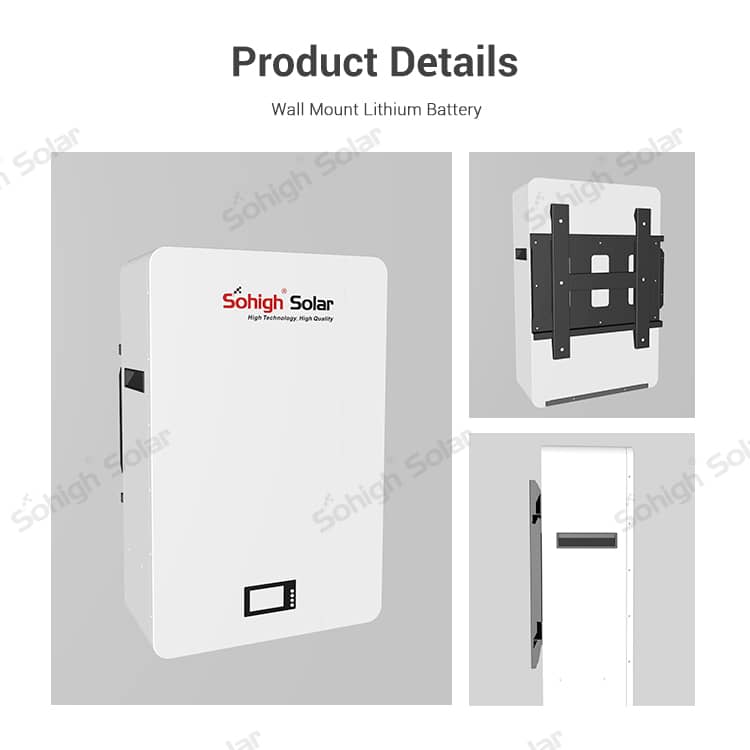

Our wall mounted lithium iron phosphate battery energy storage system adopts a modular structure, which can be flexibly composed of various voltage platforms and capacity level systems. And the modular design makes it easy to transport, install and use.
Sohigh Solar will be your ideal home energy storage solution. The lithium batteries we provide have large capacity, long cycle life, exquisite appearance, waterproof design and industry-leading warranty service. Our technical experts will provide ongoing support for your energy storage project.
| Electrical Characteristics | Nominal Voltage | 51.2V | |||
| Nominal Capacity | 210AH | ||||
| Energy | 10752Wh | ||||
| Internal Resistance | ≤500mΩ | ||||
| Cycle Life | >6000 cycles @1C 100%DOD | ||||
| Months Self Discharge | <3% | ||||
| Efficiency of Charge | 100% @0.2C | ||||
| Efficiency of Discharge | 96~99% @1C | ||||
Standard Charge | Charge Voltage | 58.4±0.2V | |||
| Charge Mode | 0.2C to 58.4V, then 58.4,charge current 0.02C(CC/CV) | ||||
| Charger Current | 20A | ||||
| Max. Charge Current | 50A | ||||
| Charge Cut-Off Voltage | 59.2V±0.2V | ||||
Standard Discharge | Continuous Current | 100A | |||
| Max. Pulse Current | 150A(<3s) | ||||
| Discharge Cut-off Voltage | 40V | ||||
Mechanical | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | |||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | ||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | ||||
